Description

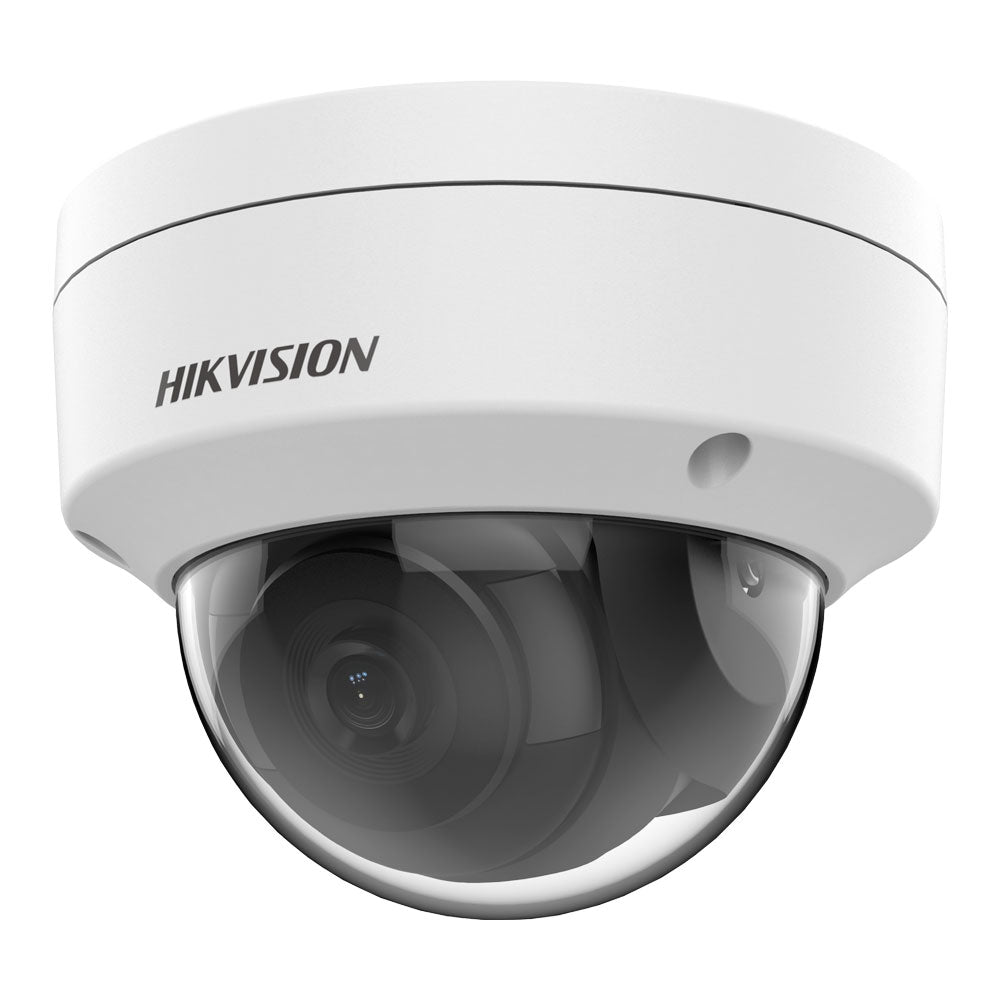

- Brand: Hikvision
- Model: DS-2CD1123G0E-I
- Type: 2MP Indoor IP Dome Security Camera
Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution: Max. 2MP (1920 × 1080)
- Minimum Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day/Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°
- Field of View: 2.8 mm Horizontal 112.1°, Vertical 60.0°, Diagonal 132.2°
- Lens Mount: M12
- Focus: Fixed
- Aperture: F2.0
- Light Type: IR (850 nm)
- IR Range: Up to 30 m
Video
- Main Stream: Up to 25 fps (50 Hz) / 30 fps (60 Hz) @ 1920 × 1080
- Sub-Stream: Up to 25 fps (50 Hz) / 30 fps (60 Hz) @ 640 × 480 / 640 × 360
- Video Compression: H.265, H.265+, H.264, H.264+, MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Profile: Baseline / Main / High Profile
- H.265 Profile: Main Profile
- ROI: 1 Fixed Region (Main Stream)
- Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
- Day/Night Switch: Auto, Schedule, Day, Night
- WDR: Digital WDR
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port
Events
- Basic Events: Motion Detection, Video Tampering Alarm, Exception
- Linkage: FTP Upload, Surveillance Center Notification, Email Alert
General
- Protection Level: IP67, IK10
- Power Supply: 12V DC ±25% or PoE (IEEE 802.3af, Class 3)
- Power Consumption: Max. 5 W (DC), Max. 6.5 W (PoE)
- Material: Metal & Plastic
- Dimensions: Ø110 × 82.4 mm
- Weight: Approx. 410 g
- Operating Temperature: -30°C to +60°C
- Storage Temperature: -30°C to +60°C
- Humidity: Up to 95% (Non-Condensing)
- Languages: English, Ukrainian
-
General Functions: Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
- Warranty: 1 Year
