Description
WIRELESS
- Wi-Fi Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds N300 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range 2 Bedroom Houses
- Antennas 2 × Fixed Antennas
- WiFi Capacity Legacy
- Working Modes
-
- Router Mode
- Access Point Mode
- Range Extender Mode
- WISP Mode
HARDWARE
- Processor Single-Core CPU
-
Ethernet Ports
- 1 × 10/100 Mbps WAN Port
- 3 × 10/100 Mbps LAN Ports
-
LED Indicators
- SYS
- WLAN
- LAN 1
- LAN 2
- LAN 3
- WAN
- Buttons WPS/Reset Button
- Power 9 V DC ⎓ 0.6 A
- Maximum Power Consumption ≤ 5.4 W
SECURITY
-
WiFi Encryption
- WPA-PSK
- WPA2-PSK
- WPA
- WPA2
- Guest Network Supported
SOFTWARE
-
Working Functions
- Wireless Router
- Wireless Repeater
- Client + AP
- WISP
- Access Point
- DHCP Server Supported
- Guest Network Configuration Supported
- Signal Adjustment Supported
- WiFi Schedule Supported
- Firmware Upgrade Web Upgrade
- System Log Supported
OTHER
- Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity 10% ~ 90% RH (Non-condensing)
- Storage Humidity 5% ~ 90% RH (Non-condensing)
- Installation Desktop Installation
PHYSICAL
- Dimensions (W×D×H) 174.82 × 96.45 × 181.06 mm
- Net Weight 134 g
-
Package Contents

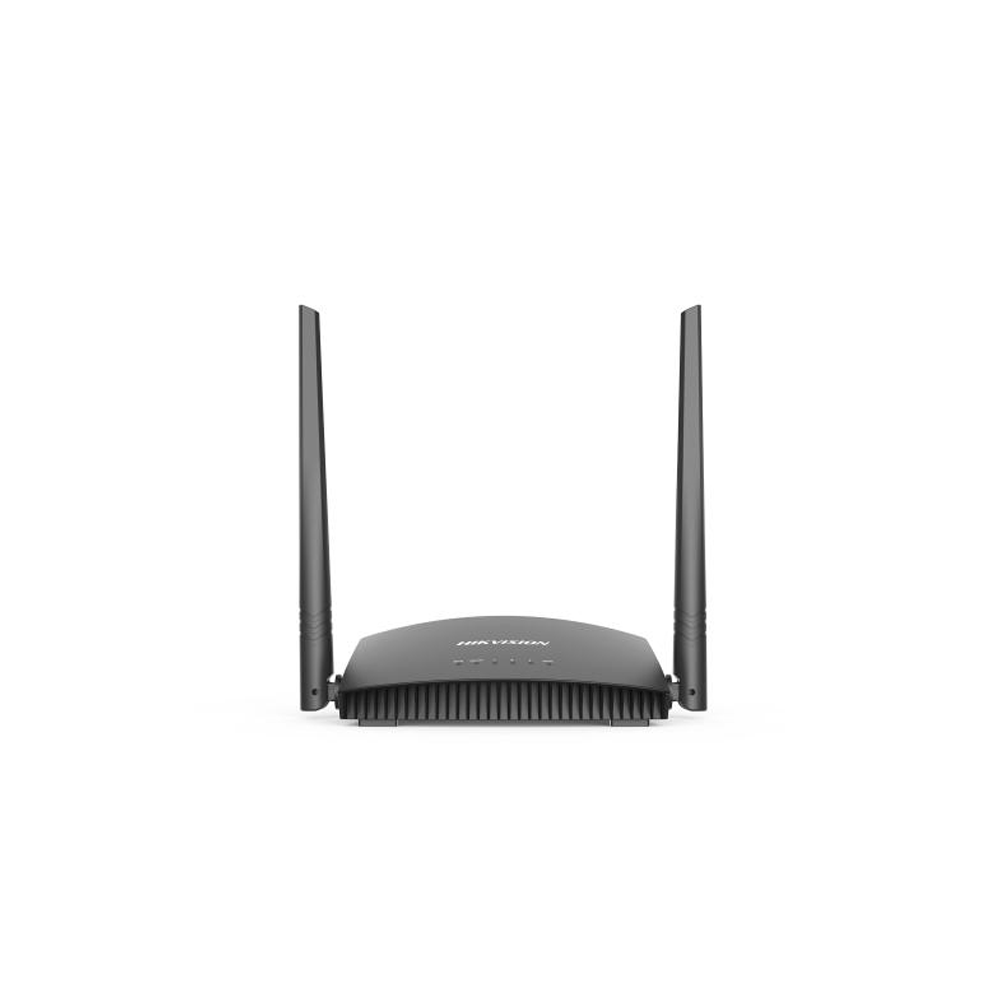

- Hikvision DS-3WR3N Wireless Router
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- Warranty: 1 Year
