WIRELESS
- Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz / IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds AX1500 5 GHz: 1201 Mbps (802.11ax) / 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range 2–3 Bedroom Houses
- Antenna 4 × Fixed High-Performance Antennas
- WiFi Capacity High
- Working Modes
-
- Router Mode
- Access Point Mode
HARDWARE
- Ethernet Ports
-
- 1 × Gigabit WAN Port
- 3 × Gigabit LAN Ports
- Buttons WPS/Reset Button
- Power 12 V DC ⎓ 1 A
SECURITY
- WiFi Encryption
-
- WPA2-PSK
- WPA2-PSK/WPA-PSK
- WPA3-Personal
- WPA3-Personal/WPA2-PSK
- WPA2-Enterprise
- WPA/WPA2-Enterprise
- Network Security
-
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- Guest Network
-
- 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
- VPN Server
-
- OpenVPN
- PPTP
SOFTWARE
-
Protocols
- IPv4
- IPv6
-
Parental Controls
- URL Filtering
- Time Controls
-
WAN Types
- Dynamic IP
- Static IP
- PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
-
Quality of Service
- QoS by Device
-
Cloud Service
- Auto Firmware Upgrade
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
-
NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
-
IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
-
DHCP
- Address Reservation
- DHCP Client List
- Server
-
DDNS
- TP-Link
- NO-IP
- DynDNS
-
Management
- Tether App
- Webpage
OTHER
- System Requirements
-
- Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11
- macOS
- NetWare
- UNIX
- Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Cable or DSL Modem
- Internet Service Provider Subscription
-
Certifications
- FCC
- CE
- RoHS
- Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
- Operating Humidity 10% ~ 90% Non-Condensing
- Storage Humidity 5% ~ 90% Non-Condensing
-
WiFi Transmission Power
- CE < 20 dBm (2.4 GHz) / < 23 dBm (5.15 GHz–5.25 GHz)
- FCC < 30 dBm (2.4 GHz & 5.15 GHz–5.825 GHz)
- WiFi Reception Sensitivity
5 GHz
-
- 11a 6 Mbps: -95 dBm
- 11a 54 Mbps: -79 dBm
- 11ac VHT20 MCS0: -96 dBm
- 11ac VHT20 MCS8: -66 dBm
- 11ac VHT40 MCS0: -94 dBm
- 11ac VHT40 MCS9: -63 dBm
- 11ac VHT80 MCS0: -91 dBm
- 11ac VHT80 MCS9: -60 dBm
- 11ax HE20 MCS0: -95 dBm
- 11ax HE20 MCS11: -66 dBm
- 11ax HE40 MCS0: -92 dBm
- 11ax HE40 MCS11: -65 dBm
- 11ax HE80 MCS0: -89 dBm
- 11ax HE80 MCS11: -62 dBm
2.4 GHz
-
- 11g 6 Mbps: -96 dBm
- 11g 54 Mbps: -80 dBm
- HT20 MCS0: -97 dBm
- HT20 MCS7: -78 dBm
- HT40 MCS0: -94 dBm
- HT40 MCS7: -75 dBm
PHYSICAL
- Dimensions (W × D × H) 215 × 117 × 32 mm
-
Package Contents

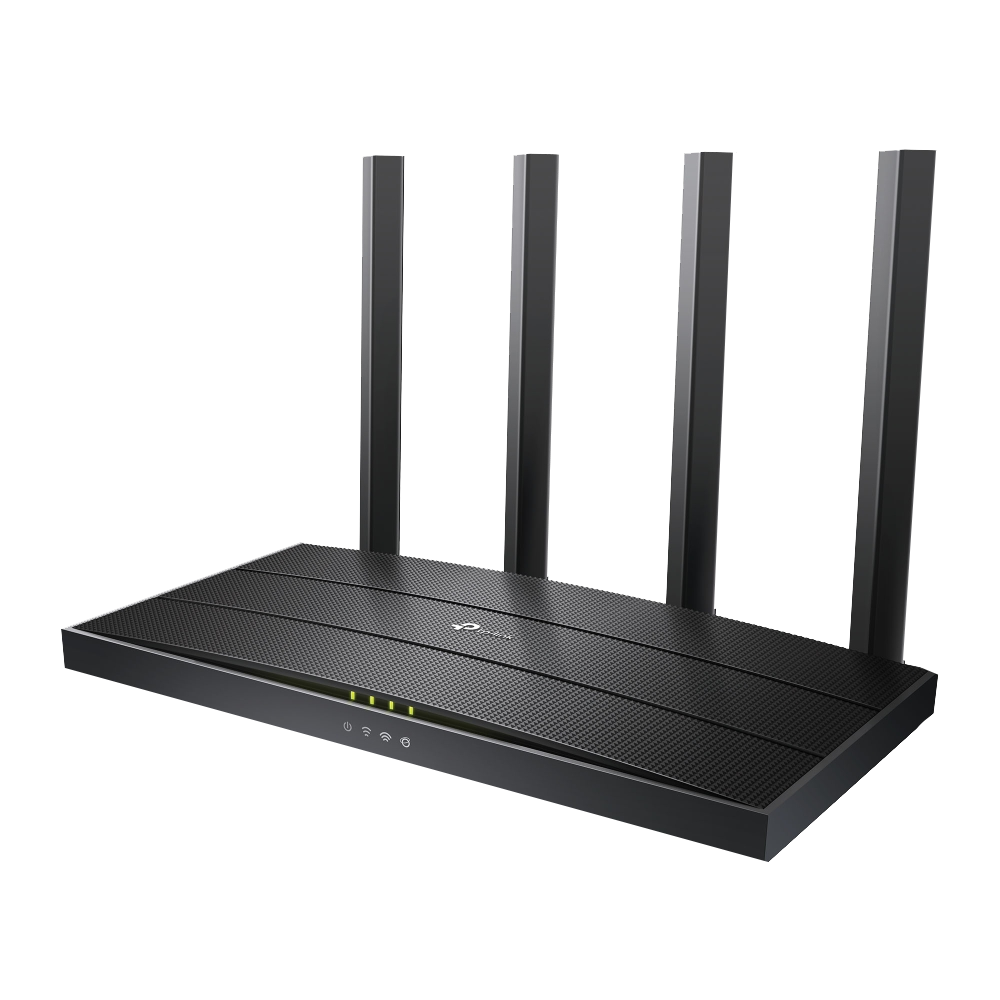

- TP-Link Archer AX12 AX1500 Wi-Fi 6 Router
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- Warranty 1 Year
