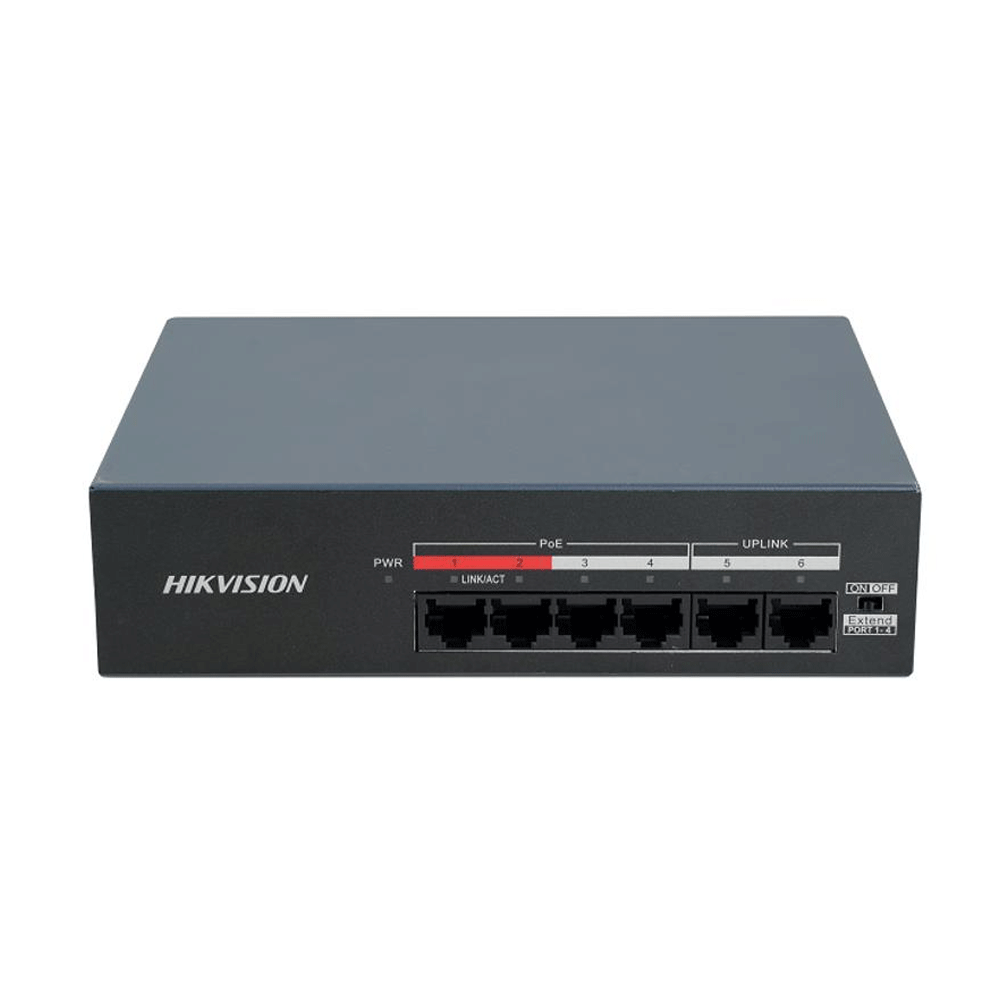

Brand: Hikvision
-
Model: DS-XS06-P
- Type: 6-Port 10/100Mbps Unmanaged PoE Switch
Network
-
Ports: 4 × 10/100 Mbps PoE RJ45 Ports + 2 × 10/100 Mbps RJ45 Uplink Ports
-
Port Type: 10/100Base-TX RJ45
-
Switching Capacity: 1.2 Gbps
-
Packet Forwarding Rate: 0.89 Mpps
-
MAC Address Table: 2K
- Forwarding Mode: Store-and-Forward
PoE
-
PoE Standard: IEEE 802.3af / IEEE 802.3at
-
PoE Ports: Ports 1–4
-
Max. PoE Power per Port: 30 W
-
Total PoE Power Budget: 35 W
-
Long Range PoE: Up to 300 m (Ports 1–4)
-
Surge Protection: 2 kV
- PoE Features: Long Range Mode, Intelligent PoE Power Supply
General
-
Management: Unmanaged
-
Power Supply: 220 VAC, 50 Hz, 0.8 A
-
Power Consumption: Max. 35 W
-
Idle Power Consumption: 2.0 W
-
Material: Metal Housing
-
Cooling: Fanless Design
-
Dimensions: 175 × 44 × 124 mm
-
Weight: 0.54 kg
-
Operating Temperature: 0°C to 40°C
-
Storage Temperature: -40°C to 85°C
-
Operating Humidity: 5%–95% RH (Non-Condensing)
-
Installation: Desktop or Wall Mount
- Warranty: 1 Year
