Description
MAG A850GL PCIE5
- ATX 3.1 ready, native PCIe 5.1 dual-color
16-pin cable - Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection
with OVP,OCP,OPP,OTP, SCP,UVP - 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC
module design
Specifications
- Efficiency Rating 80 PLUS Gold (up to 90%)
- Modular Yes (full modular)

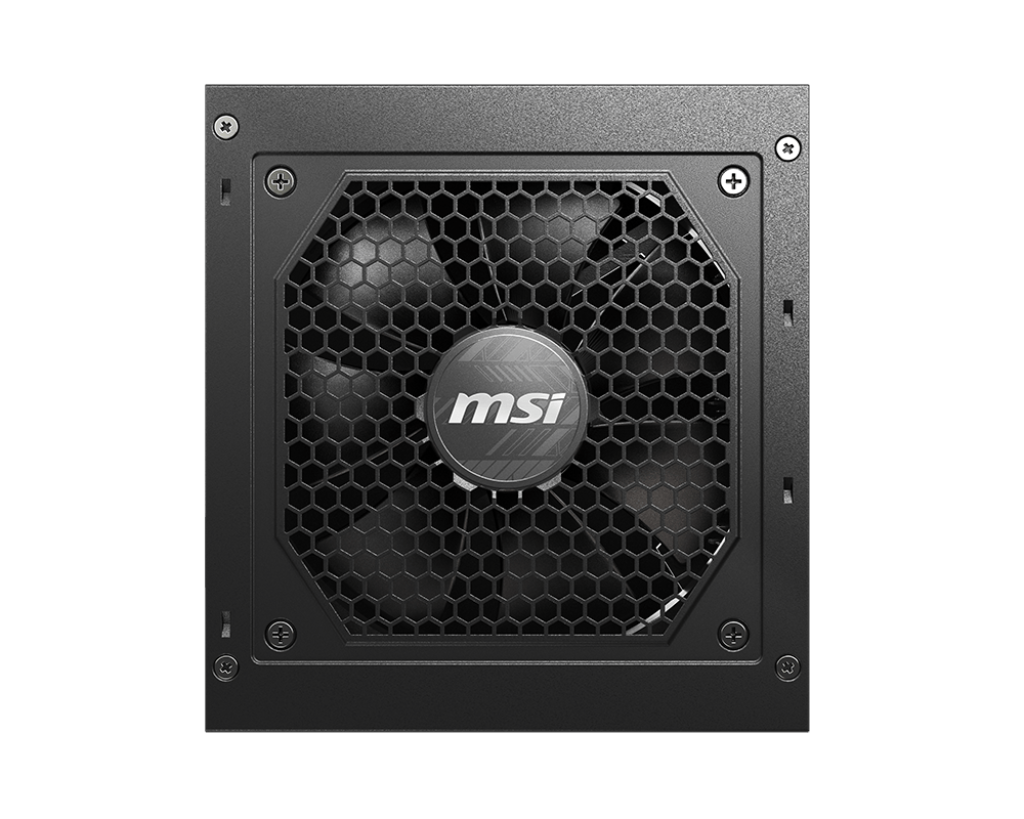

- Fan Size 120 mm
- Fan Bearing Fluid Dynamic Bearing
- Dimensions (DxWxH) 140 x 150 x 86 mm
- PFC Type Active PFC
- Input Voltage Range 100~240 VAC
- Power Watt 850W
-
Power Excursion 1700W (*up to 200% of the PSU's rated power for
100μs) - Input Frequency Range 47-63Hz
- Protection OCP / OVP / OPP / OTP / SCP / UVP

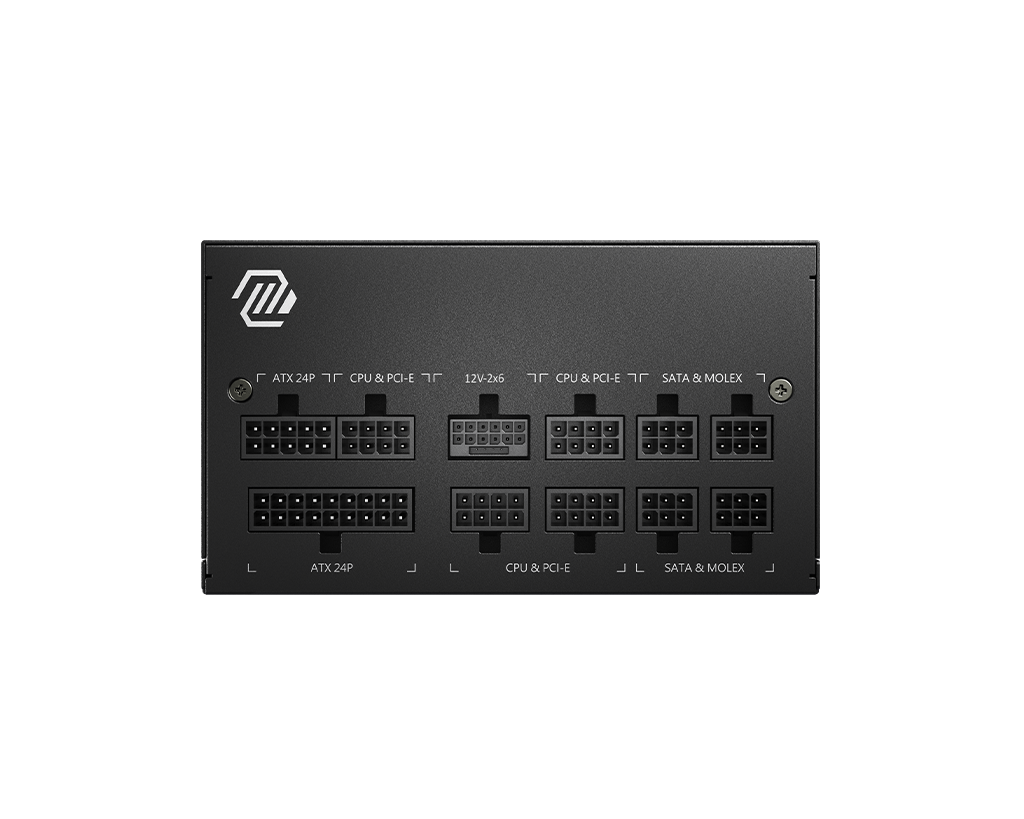

- ATX (24 pin) 1
- EPS (4+4 pin) 2
- PCI-E 5.0 (16 pin) 1 (600W)
- PCI-E (6+2 pin) 4
- SATA (15 pin) 8
- MOLEX (4 pin) 4
- FDD (4 pin) 1
- warranty : 1 year
