Description

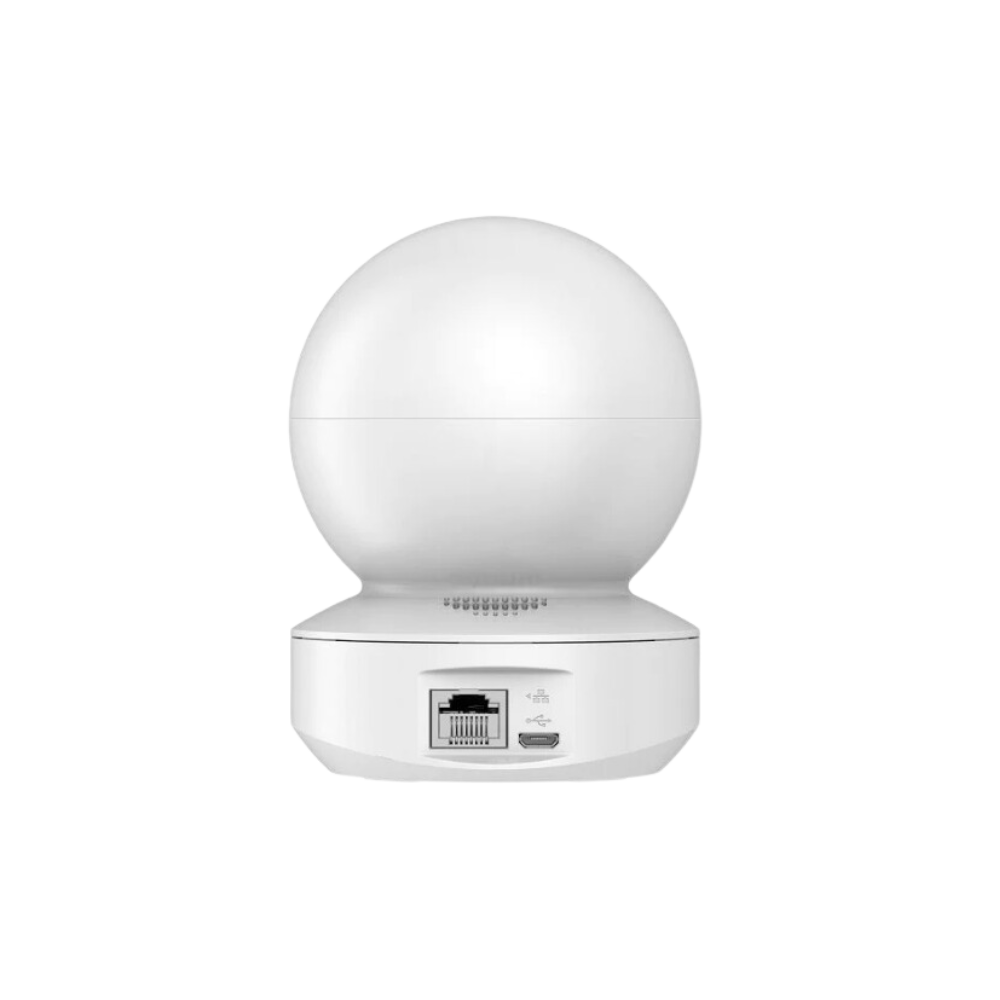

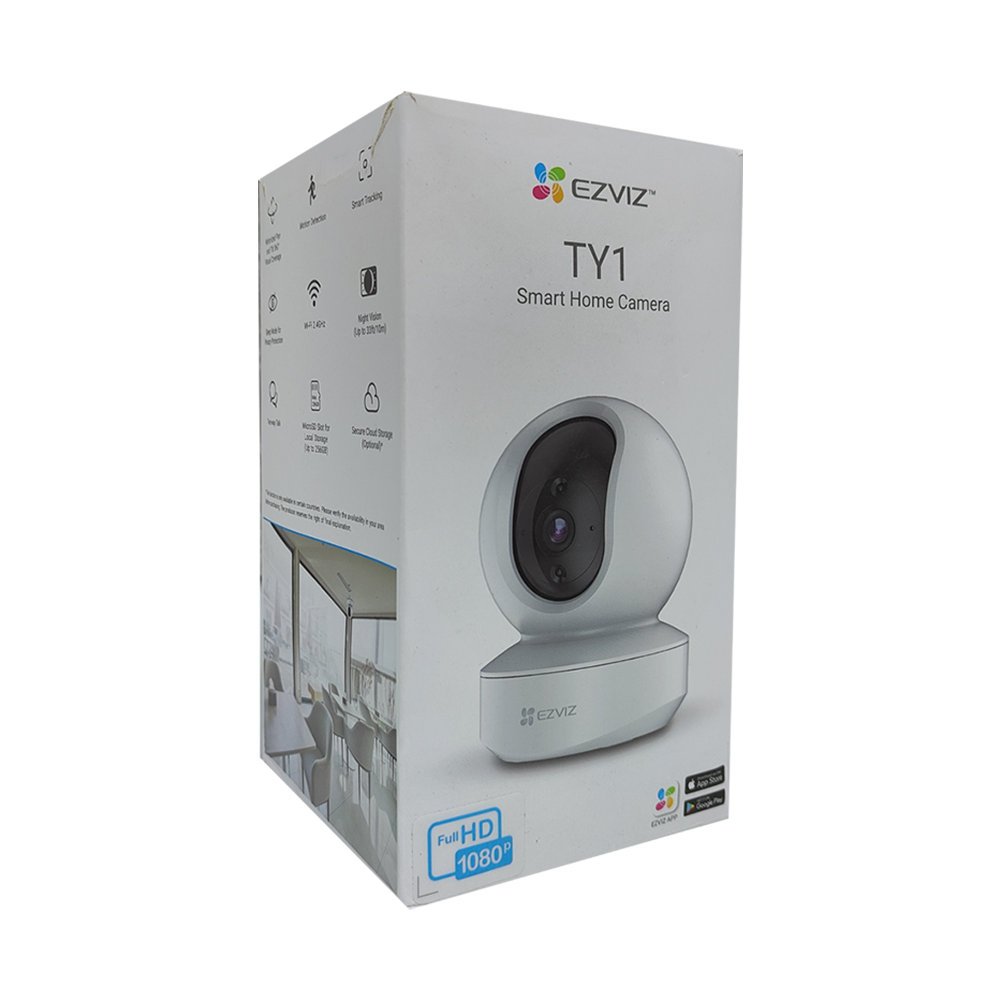

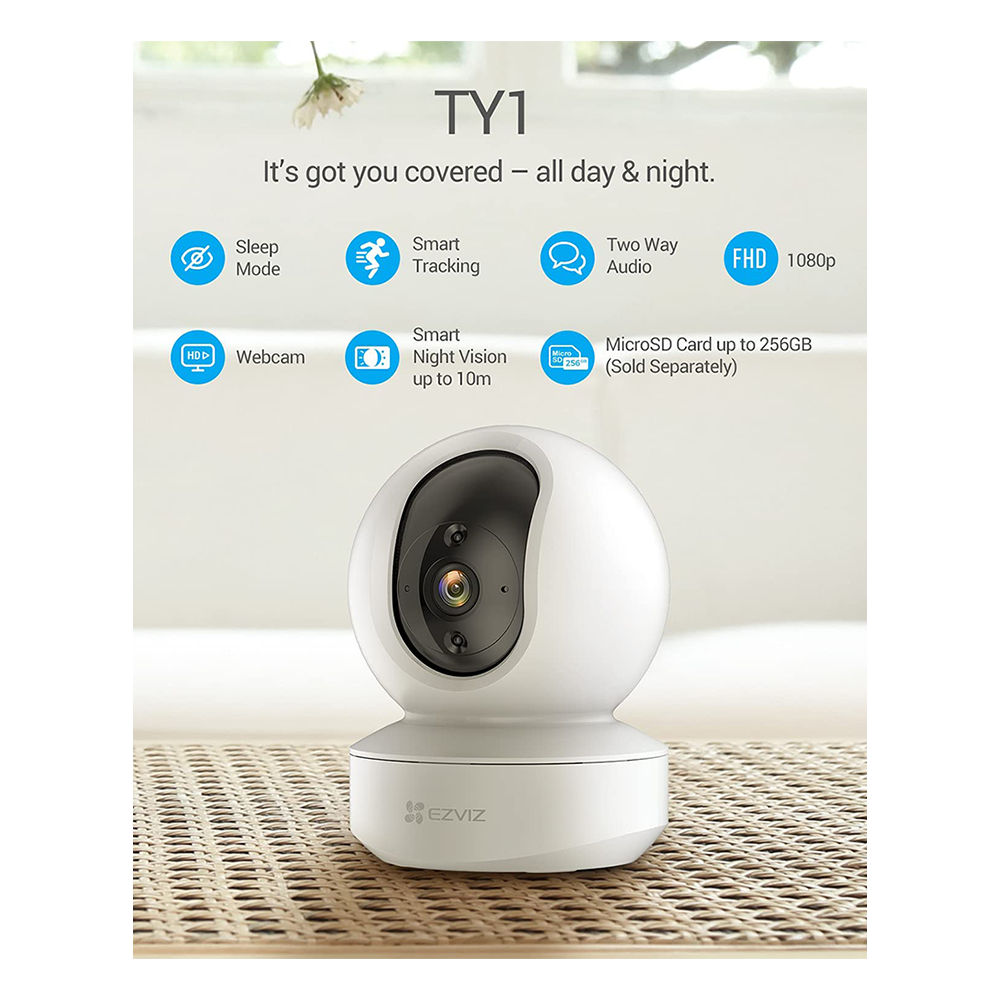

TY1
A camera that protects you - all night and all day.
- A smart pan-and-pan camera that connects to your Wi-Fi network
- You can monitor every corner with just one TY1 camera
- The camera is smart enough that when it detects a moving object, it will automatically track its movement and alert you in real time
- Possibility of communication, at any time
- Be able to see more clearly in the dark
- We protect your data and privacy
- Shoot, save, protect and share your valuables with the EZVIZ app
Specification
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Shutter Speed : Self-adaptive shutter
- Lens : 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR : 3D DNR
- WDR : Digital WDR
Compression
- Video Compression: H.264
-
Video Bit Rate: Ultra-precision; High accuracy; Standard resolution. Adaptive bitrate
- Max. Resolution: 1920 × 1080
- Frame Rate: Max:15fps; Self-Adaptive during network transmission
Network
- Smart Alarm: Motion detection
- Wi-Fi Pairing: Access point association
- Protocol: EZVIZ Cloud proprietary protocol
- Interface Protocol : EZVIZ Cloud proprietary protocol
Interface
- Storage: MicroSD card slot (Max. 256GB)
- Power : Micro USB
- Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
- Standard: IEEE802.11b/g/n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth : Supports 20MHz
- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rat: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
General
- Power Supply : DC 5V/1A
- Power Consumption : 5W max
- IR Range: MAX. 10 meters (32.81 ft.)
- Dimensions : 88 x 88 x 124 mm (3.46 x 3.46 x 4.88 inch)
- Packaging Dimensions: 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
- Net Weight : 255 g (8.99 oz)
- Warranty: 1 Year
