UAC-B112-F40

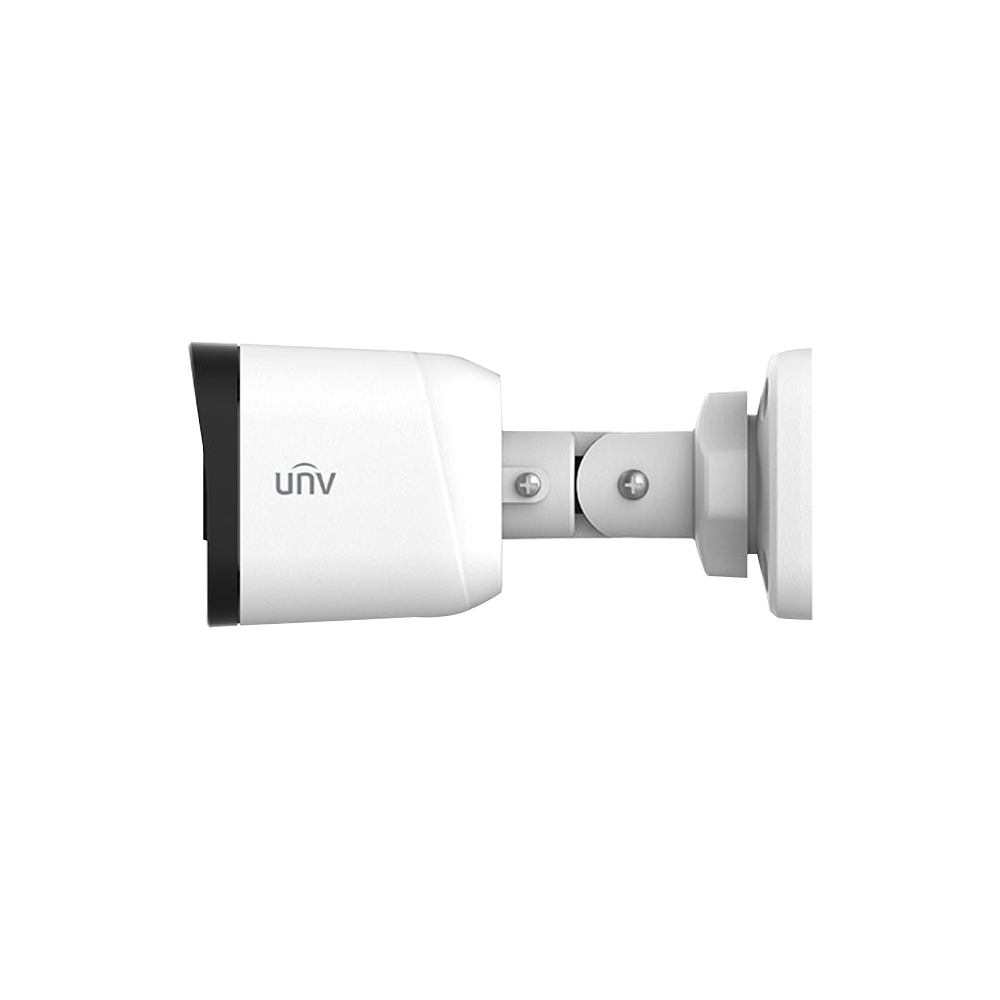

2MP Fixed IR Bullet Analog Camera
- 2MP high quality image
- TVI/AHD/CVI/CVBS
- IR-cut filter with auto switch (ICR)
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
Specification
- Model :UAC-B112-F40
- Sensor
- Pixel 2MP
- Size 1/3"
- Minimum illumination 0.02 lux (F2.0, AGC ON)
- 0 lux (IR on)
- Lens
- Lens 4.0MM
- Lens mount M12
- Angle of view H: 80.2° V: 40.7° D: 90.5°
- Illuminator
- Illuminator One IR illuminator
- Illumination distance 20m
- Lifetime ≥60,000 hours
- Video
- Resolution 1080P: 1920(H)×1080(V)
- 720P: 1280(H) ×720(V)
- Frame rate TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps
- CVBS: PAL, NTSC
- Shutter time PAL: 1/25s-1/50000s
- NTSC: 1/30s–1/50000s
- Image
- Exposure mode 4 modes: Global (default), BLC, HLC, DWDR
- Day/Night 3 modes: Auto (default), Day, Night
- Digital noise reduction 2D
- White balance Two modes: Auto (default), Manual
- WDR DWDR
- Smart IR Support
- Flip Supports 180° horizontal flip, 180° vertical flip.
- Interface
- Power 5.5mm power interface
- Video output BNC, supports TVI/AHD/CVI/CVBS
- Operating environment
- Temperature -30℃ to 60℃(-22℉ to 140℉)
- Humidity ≤95% (RH, non-condensing)
- Surge protection 4KV
- General
- Power DC 12V(±25%), with reverse polarity protection, Max 2.88W
- Mount 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
- Dimensions 142mm*63mm*65mm (L*W*H)
- Weight 135g(0.30lb)
- OSD menu language 11 Languages
- warranty : 1 year
