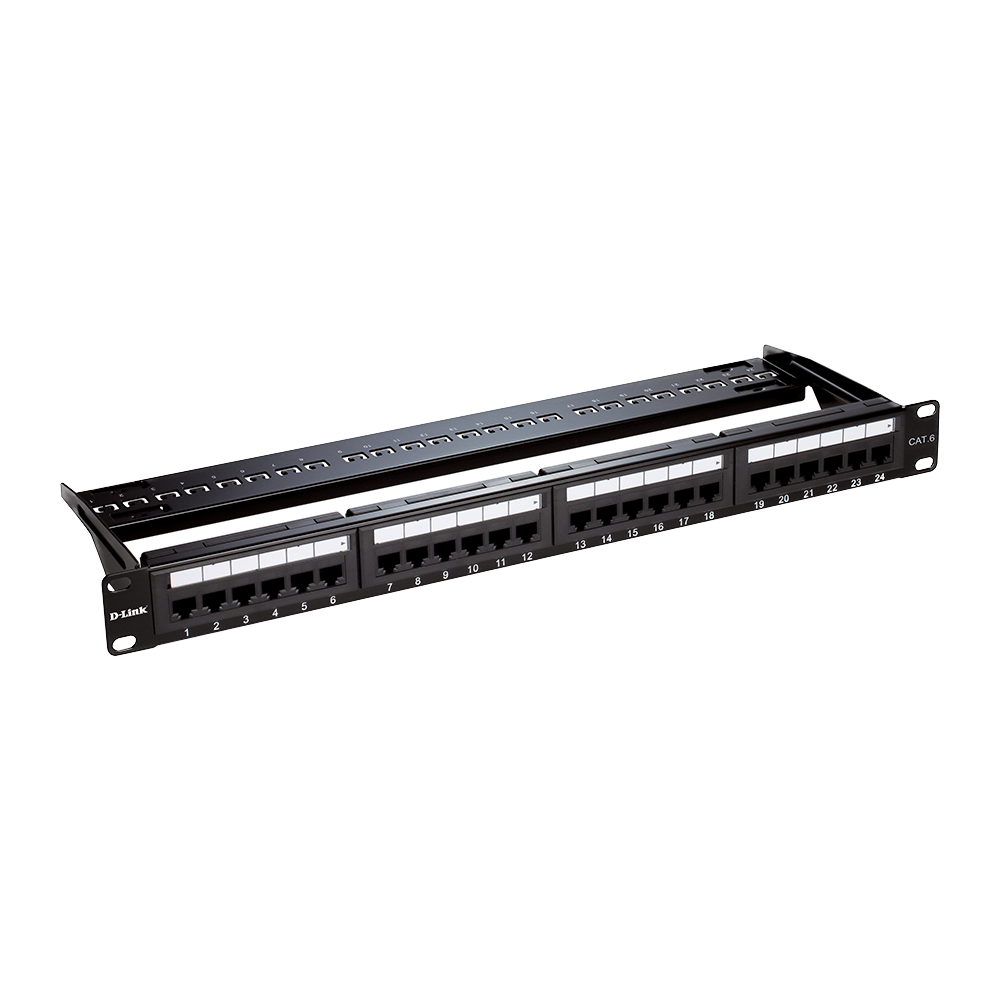

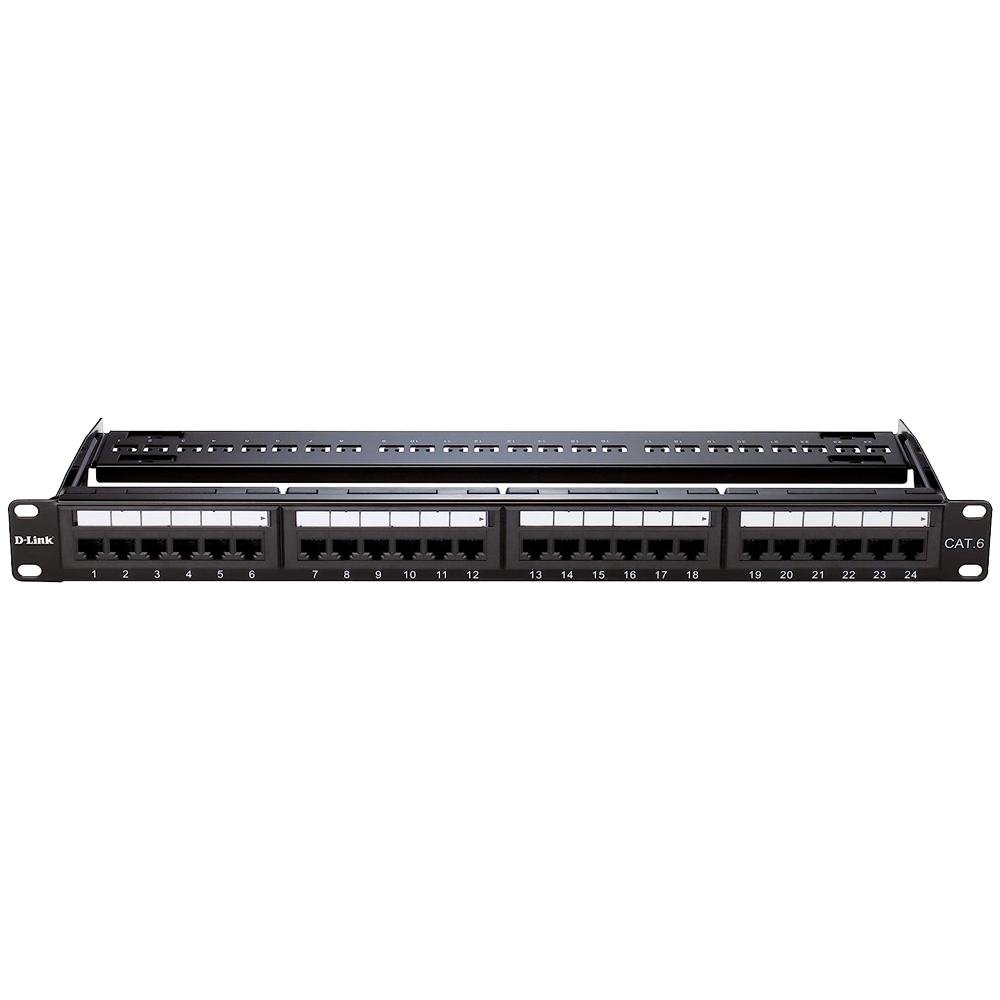

Cat6 UTP Fully Loaded Patch Panel
NPP-C61BLKXX1
Description:
- Available in 24 (1U)
- Six Port RJ45 modules applied
- ID stripes for identifying port allocations
- Improved Cable Management with optional cable management bar
- IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools
- Mounts in standard 19” racks
- The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 standard
Specifications:
- Identification: ID plate, PC, Transparent color with paper
- Panel: SPCC. 1.6 mm thickness with Black (RAL 9005) Colour painted
- RJ45 Jack:
-
Housing: PBT+ Glass Fiber UL94V-0
-
Contact Bracket: PBT+Glass Fiber, UL94V-0, Black Color
- RJ45 Jack Contact:
-
Material: Phosphor Bronze with Nickel Plated
-
Finish: 50 micro-inches Gold plated on plug contact area
- IDC:
-
Housing: PC, UL94V-0
-
Terminal: phosphor Bronze with Tin plated
- Jack Bracket Set: ABS
- Support Bar: SPCC, 1.6 mm thickness with Black (RAL 9005) Colour painted
- PCB: FR4, UL 94V-0
- Warranty: 30 DAYS
