Description

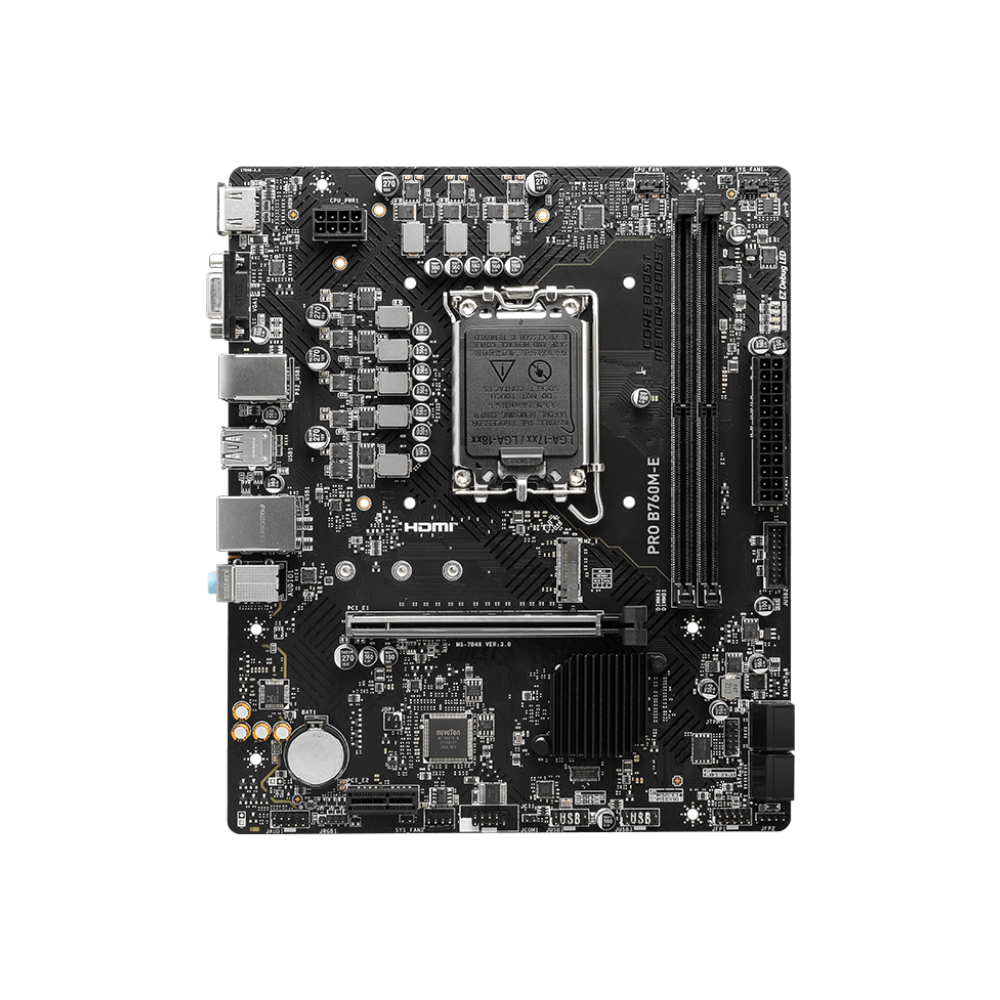

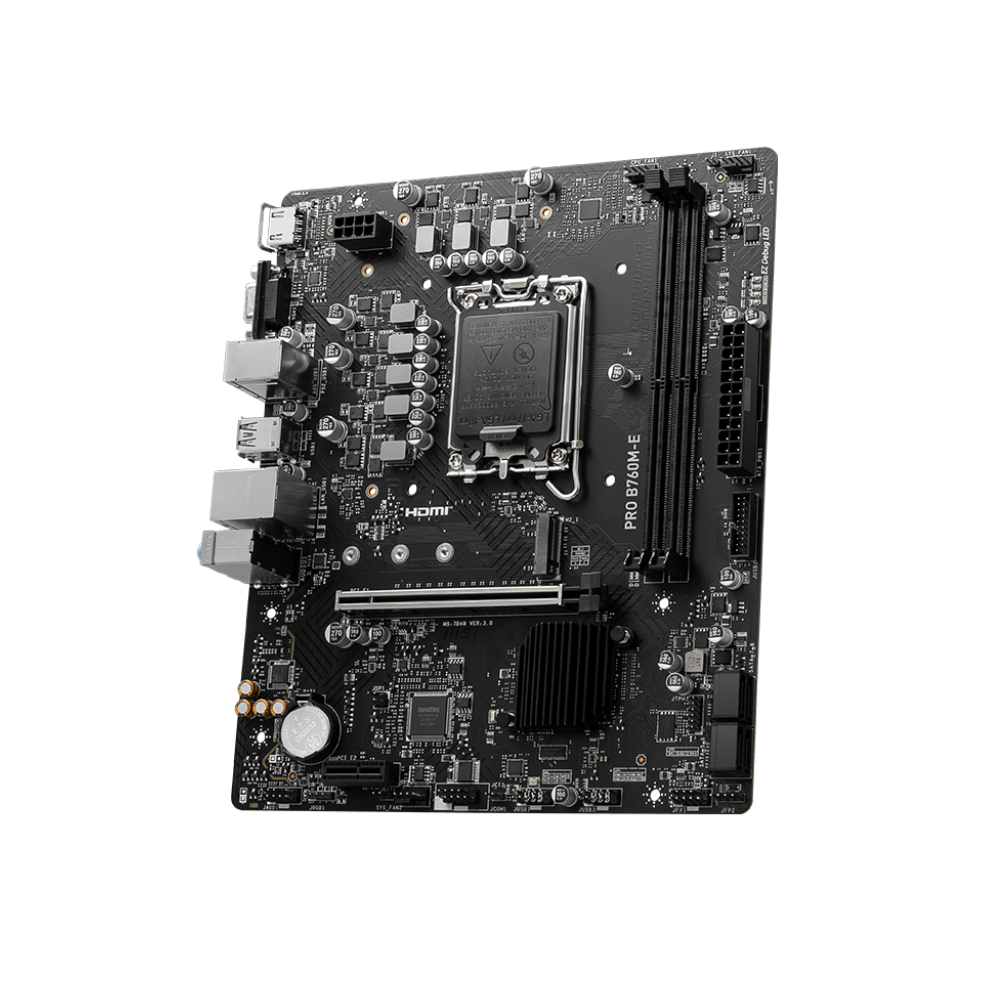

PRO B760M-E
- Latest DDR5 Memory :A huge step of DDR performance enhancement with the latestDDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- PCI-E Steel Armor :Protecting VGA cards against bending and EMI.
- EZ Debug LED :Easiest way to troubleshoot.
- Frozr AI Cooling :Detect CPU & GPU temperatures and automatically adjust systemfan duty to a proper value.
-
Memory Boost :Advanced technology to deliver pure data signals for the best
performance, stability and compatibility. -
Core Boost :With premium layout and fully digital power design to support
more cores and provide better performance. -
Audio Boost :Reward your ears with studio grade sound quality for the most
immersive audio experience.
specifications
- Model Name PRO B760M-E
- CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium® Gold and Celeron® Processors
- CPU Socket: LGA 1700
- Chipset Intel® B760 Chipset
-
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot -
Display Interface: Support 4K@30Hz as specified in HDMI™ 1.4, VGA –
Requires Processor Graphics - Memory Support: 2 DIMMs, Dual Channel DDR5-6400+MHz(OC)
- Storage 1x M.2 Gen4 x4 64Gbps slot, 4x SATA 6Gbps ports

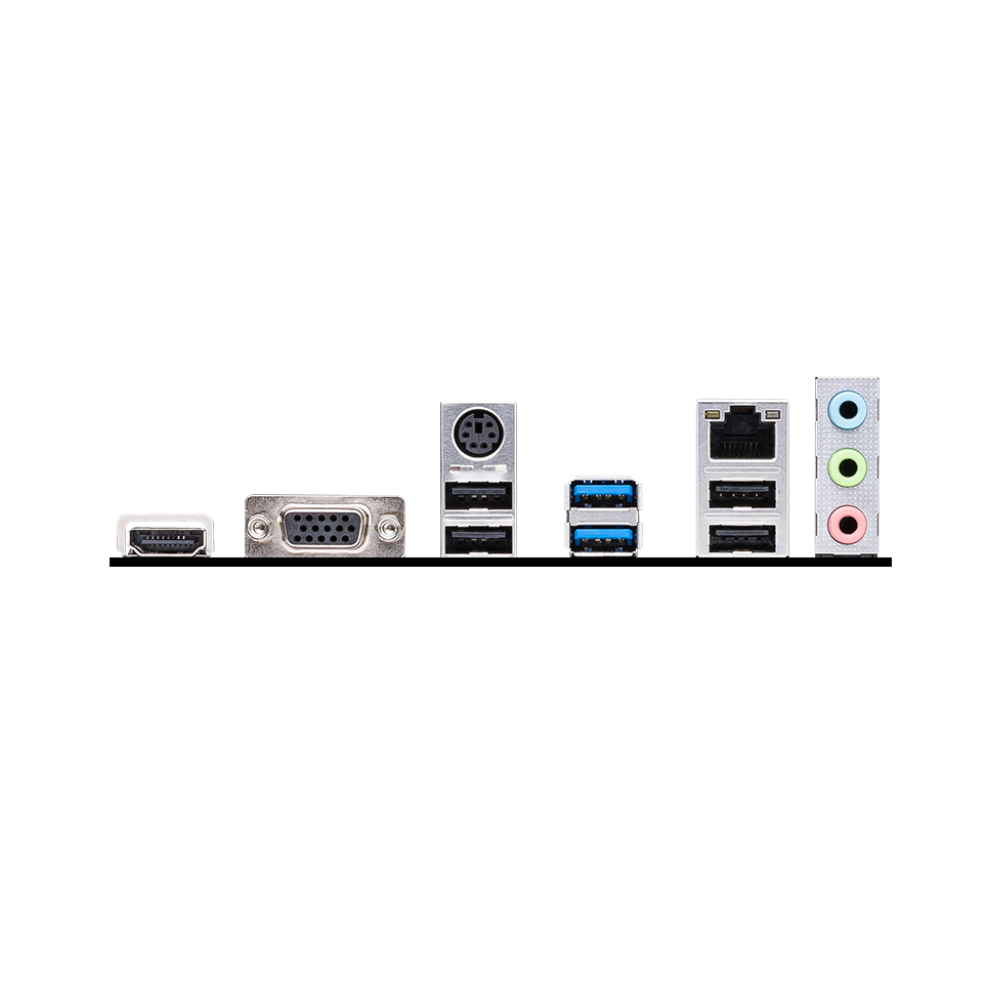

- USB ports: 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 8x USB 2.0
- LAN Realtek® RTL8111H Gigabit LAN
- Audio 8-Channel (7.1) HD Audio with Audio Boos
- warranty : 1 year
