Description

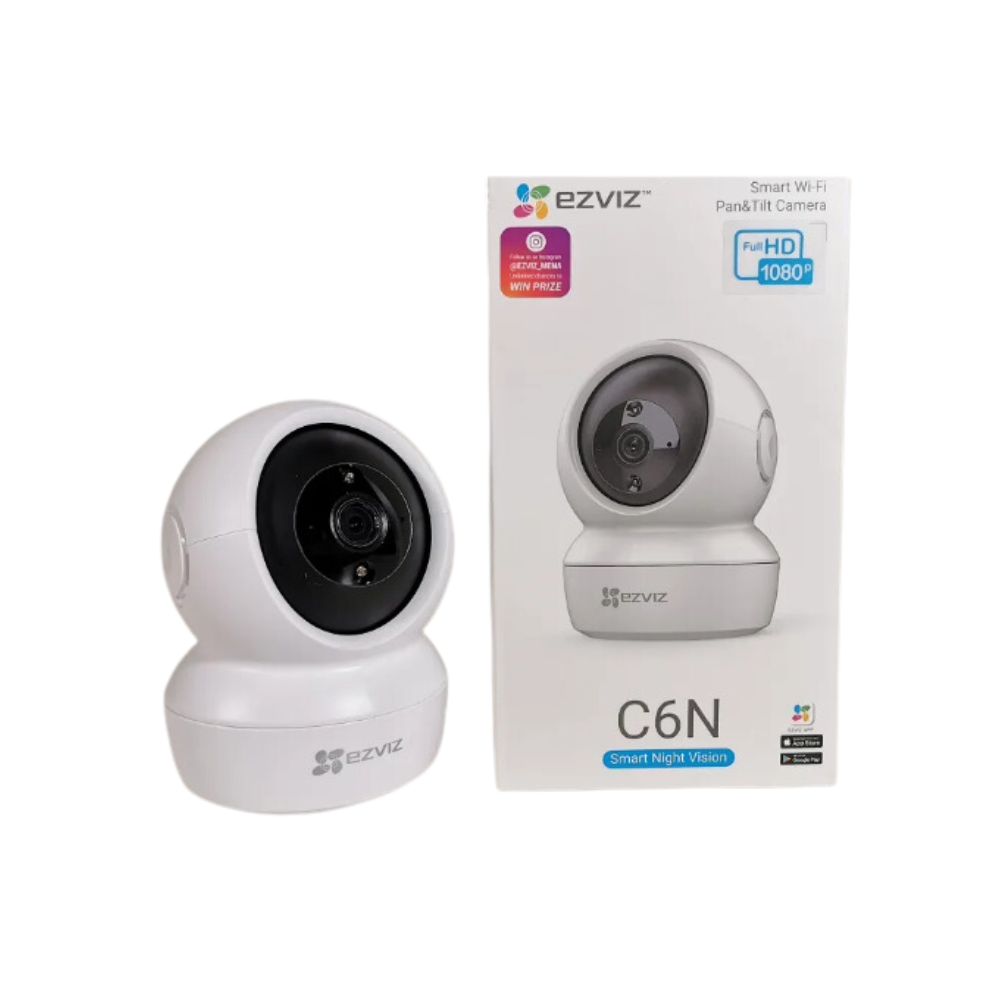

EZVIZ C6N 1080P CS-C6N
- Type – Wi-Fi PT IP Camera
- Mega Pixel – 2.0MP
- Lens Mount – M12
- Shutter Speed – Self-adaptive shutter
specifications
- Model CS-C6N-A0-1C2WFR
- Camera
- Image Sensor : 1/4" Progressive Scan CMOS
- Shutter Speed : Self-adaptive shutter
- Lens : 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
- Lens Mount : M12
- Day & Night : IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR :Digital WDR
- Compression
- Video Compression : H.264
- Video Bit Rate : Full HD, HD, Standard. Adaptive bit rate.
- Image
- Max. Resolution : 1920 × 1080
- Frame Rate:Max. 15fps; Self-adaptive during network transmission
- Network
- Smart Alarm: Motion detection
- Wi-Fi Pairing:AP Pairing
- Protocol :EZVIZ Cloud Proprietary Protocol
- Interface Protocol: EZVIZ Cloud Proprietary Protocol
- Interface
- Storage: MicroSD card slot (Max. 256 GB)
- Power: Micro USB
- Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)
- Wi-Fi
- Standard: IEEE802.11 b/g/n
- Frequency Range : 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
- General
- Power Supply : DC 5V/1A
- Power Consumption: 5W max
- IR Range: MAX. 10m (32.81 fts)

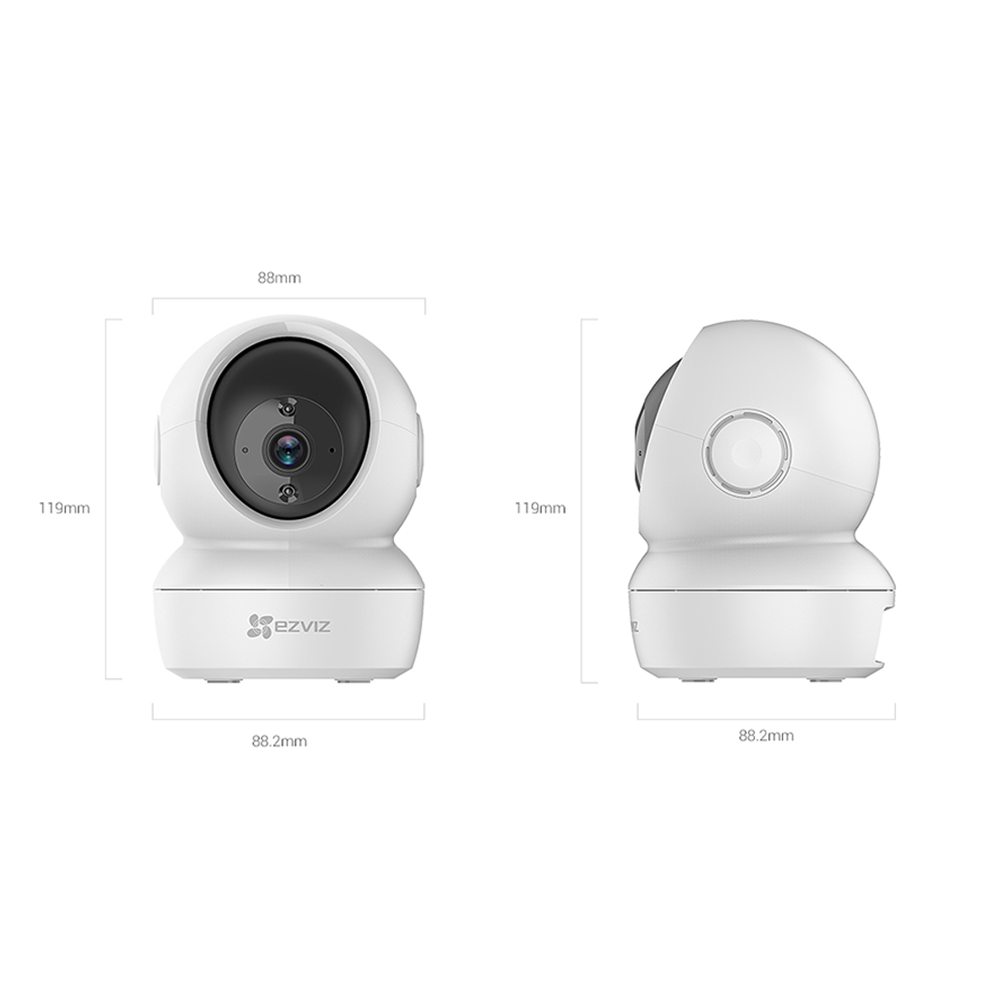

- Dimensions :88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)
- Packaging Dimensions : 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)
- Bare Weight :218g (0.48lb)
- Operating Environment
- Temperature: -10° C to 45° C (14° F to 113° F)
- Humidity: 95% or less (non-condensing)
- Certifications
- Certifications : FCC / UL / CE / WEEE / REACH / RoHS
- cation
-
Warranty: 1 Year
