Description

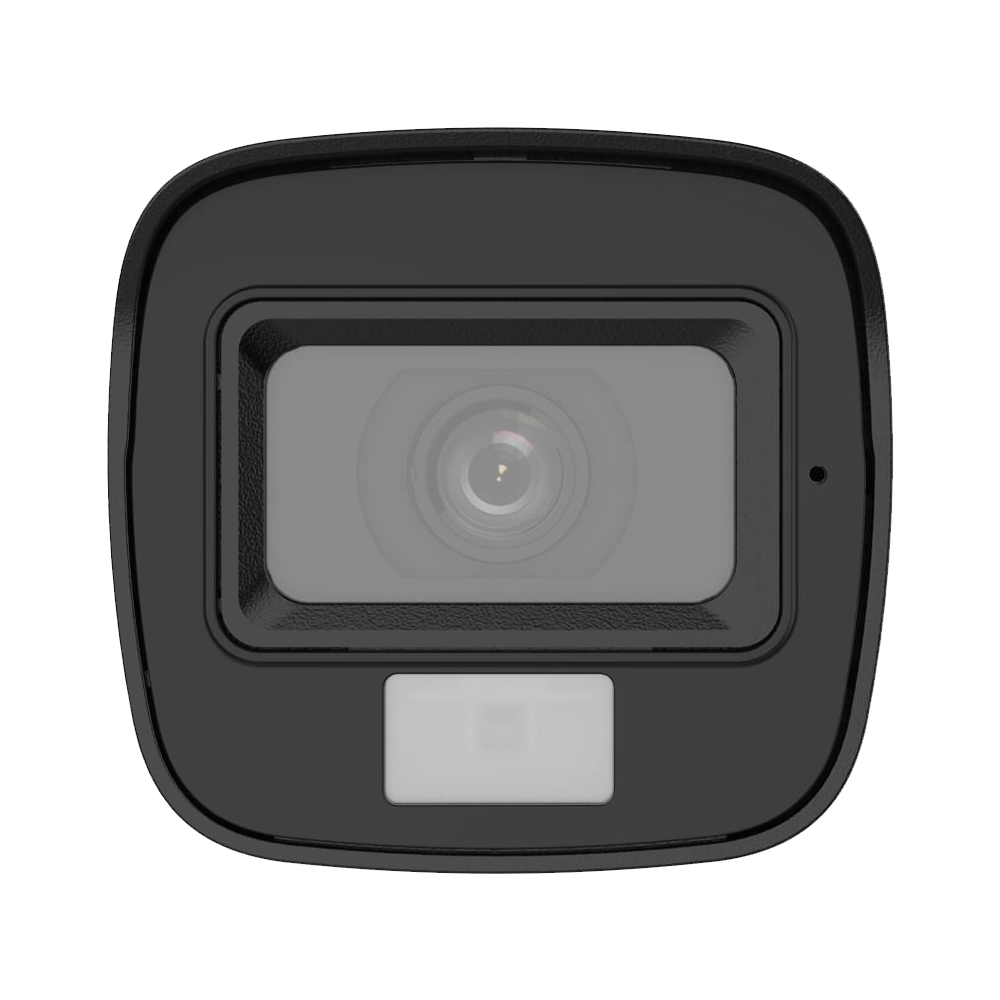

3K Smart Hybrid Light Audio Fixed Mini Bullet Camera
Specification
Camera
- Image Sensor :3K CMOS
- Max. Resolution :2960 (H) × 1665 (V)
- Min. Illumination :0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night :ICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type : 3.6 mm fixed focal lens
- Focal Length & FOV
- 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4
- Lens Mount :M12
Illuminator
- Supplement Light Type :White Light;IR
- Supplement Light Range
- IR : Up to 25 m
- White Light : Up to 20 m
- Image Settings :Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
- AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
- CVI: 4 MP@25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range: (WDR)Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC :Yes
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Built-In Microphone Yes
General
- Dimension:138.8 mm × Ø70 mm (5.47" × Ø2.76")
- Weight :Approx. 160 g (0.35 lb.)
- Operating Condition:-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less
- Communication :HIKVISION-C
- Power Supply :12 VDC ± 25%
- Consumption :Max. 2.9 W
- warranty : 1year
