Description

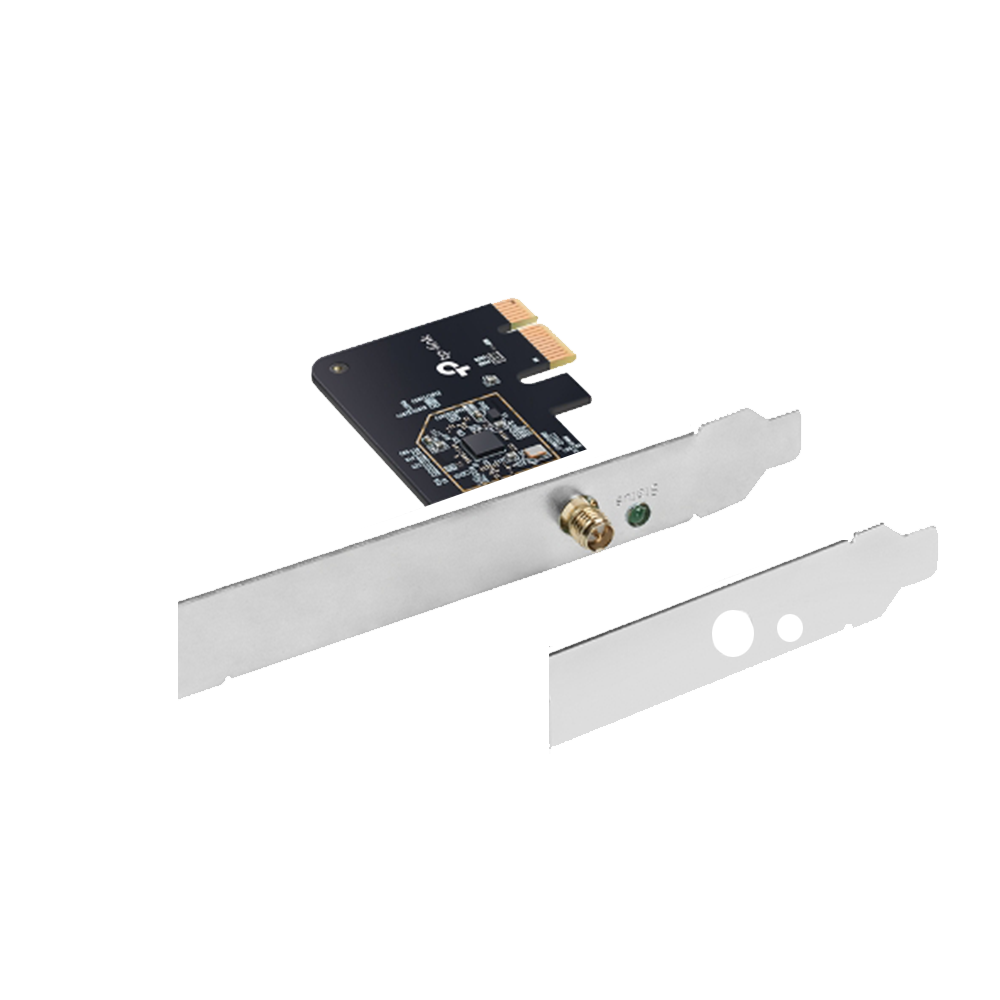

AC600 Wireless Dual Band PCI Express Adapter
Archer T2E
- AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
- MU-MIMO Supported – Boost network thoughput and efficiency when working with a compatible MU-MIMO router

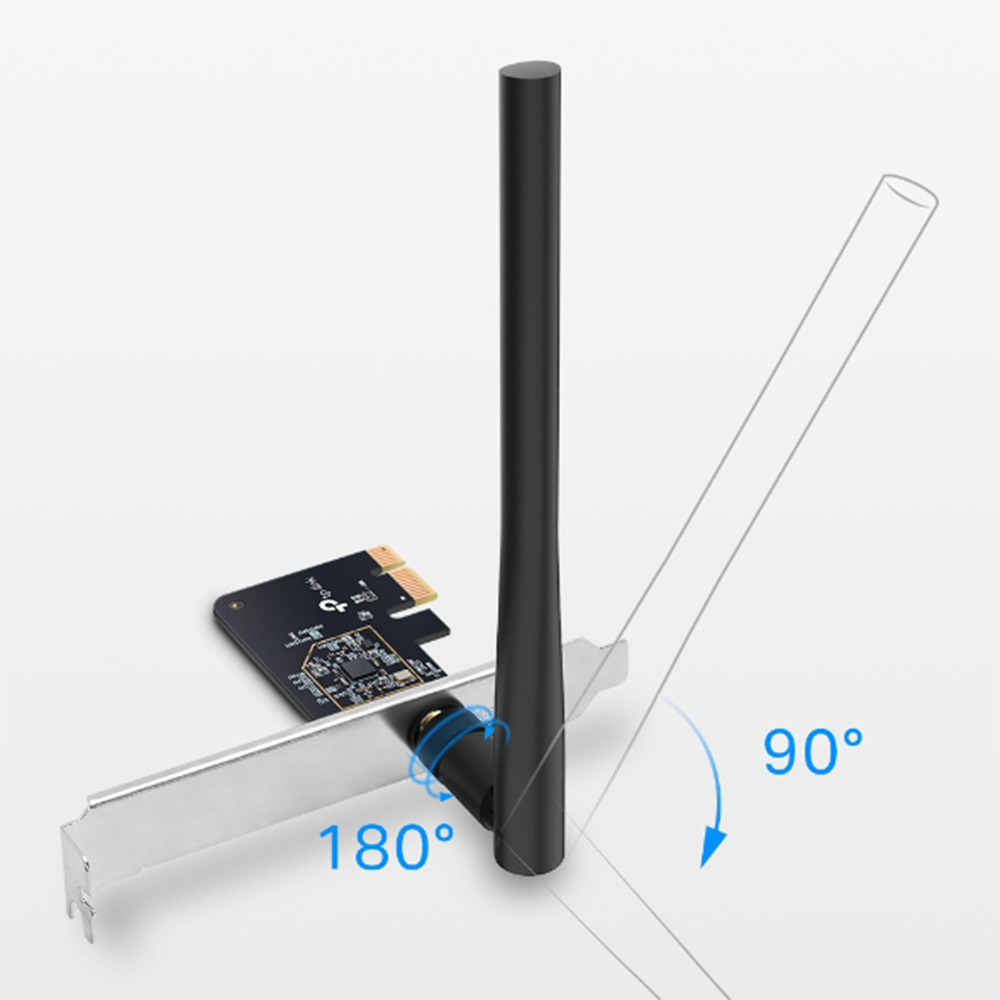

- Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with powerful signal-boosting high-gain antenna
- WPA3 Supported – Improve cybersecurity with more secure and individualized protection
- Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design
Specifications
- Interface: PCI Express
- Dimensions: 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm)
- Antenna: 1 Detachable External Antenna
- Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
- Signal Rate
- 5 GHz:
- 11ac: Up to 433 Mbps(dynamic)
- 11n: Up to 200 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
- 2.4 GHz:
- 11n: Up to 200 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
- Reception Sensitivity
- 5GHz:
- 11ac HT80:-59.0dBm
- 11n HT40:-68.0dBm
- 11a 54Mbps:-73.0dBm
- 11a 6Mbps:-90.0dBm
- 2.4GHz:
- 11n HT40:-70dBm
- 11g 54Mbps:-75dBm
- 11b 11Mbps:-87dBm
- Transmit Power:
- 5GHz:18dBm(FCC)/23dBm(CE)(EIRP)
- 2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP)
- Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE
- WARRANTY: 1 YEAR
