Description
TL-WA1201

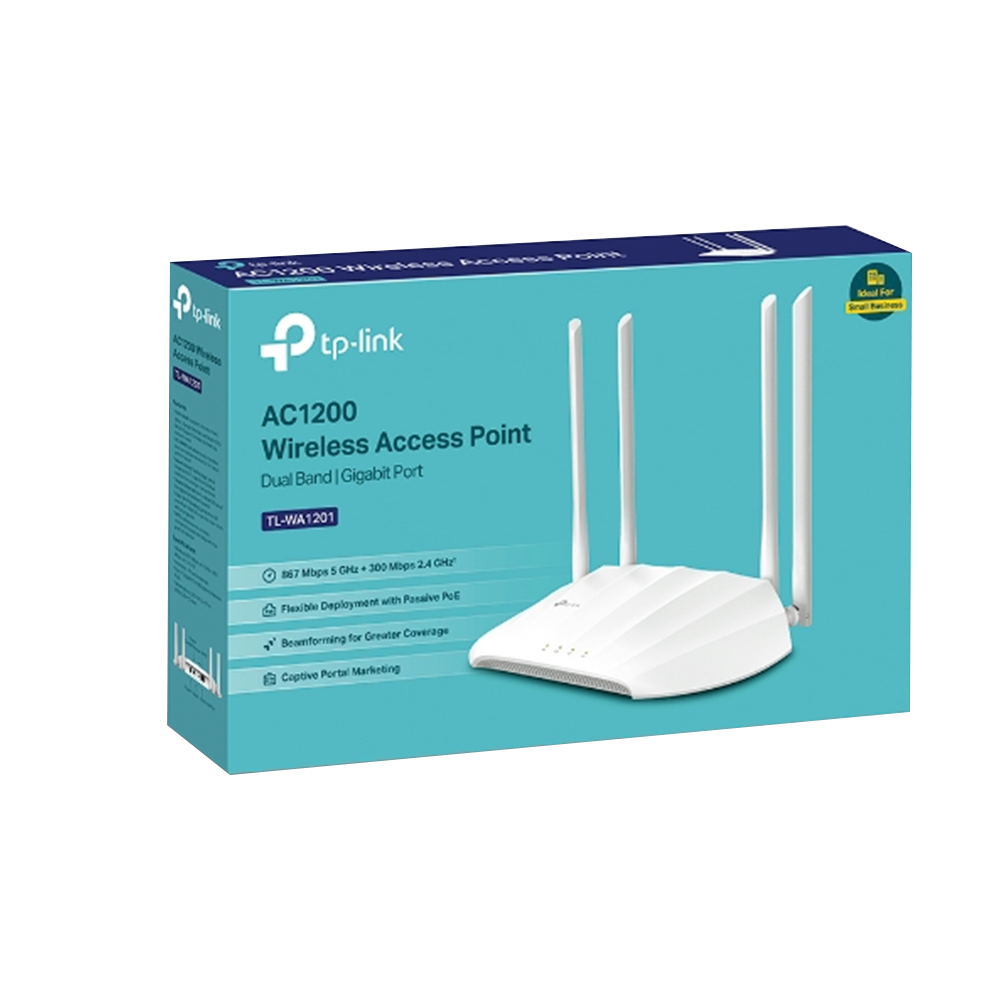

AC1200 Wireless Access Point
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
-
Captive Portal – Offers a designed portal page for heightened security and marketing.
Specifications:
- Interface: 1× 10/100/1000 Mbps Ethernet Port
- (Supports Passive PoE)
- Button: Power On/Off Button, WPS Button, Reset Button
- External Power Supply: 12V/1.5A
- Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
- Dimensions ( W x D x H ): 8.9 × 5.7 × 1.5 in (225×145.5×37 mm)
- Antenna Type: 4 Fixed High Performance Antennas
- Frequency :2.4 GHz and 5 GHz
- Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
- Wireless Functions:
- Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
- Transmit Power:
- CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
- FCC: <30dBm(2.4GHz&5GHz)
- Reception Sensitivity: 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
- 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
- 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
- 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
- 2.4 GHz:11g 54Mbps: -78 dBm
- 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
- 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
- Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
- DHCP: Server, DHCP Client List
- Quality of Service: WMM
- Advanced Functions: Captive Portal
- Warranty: 1year
