Description

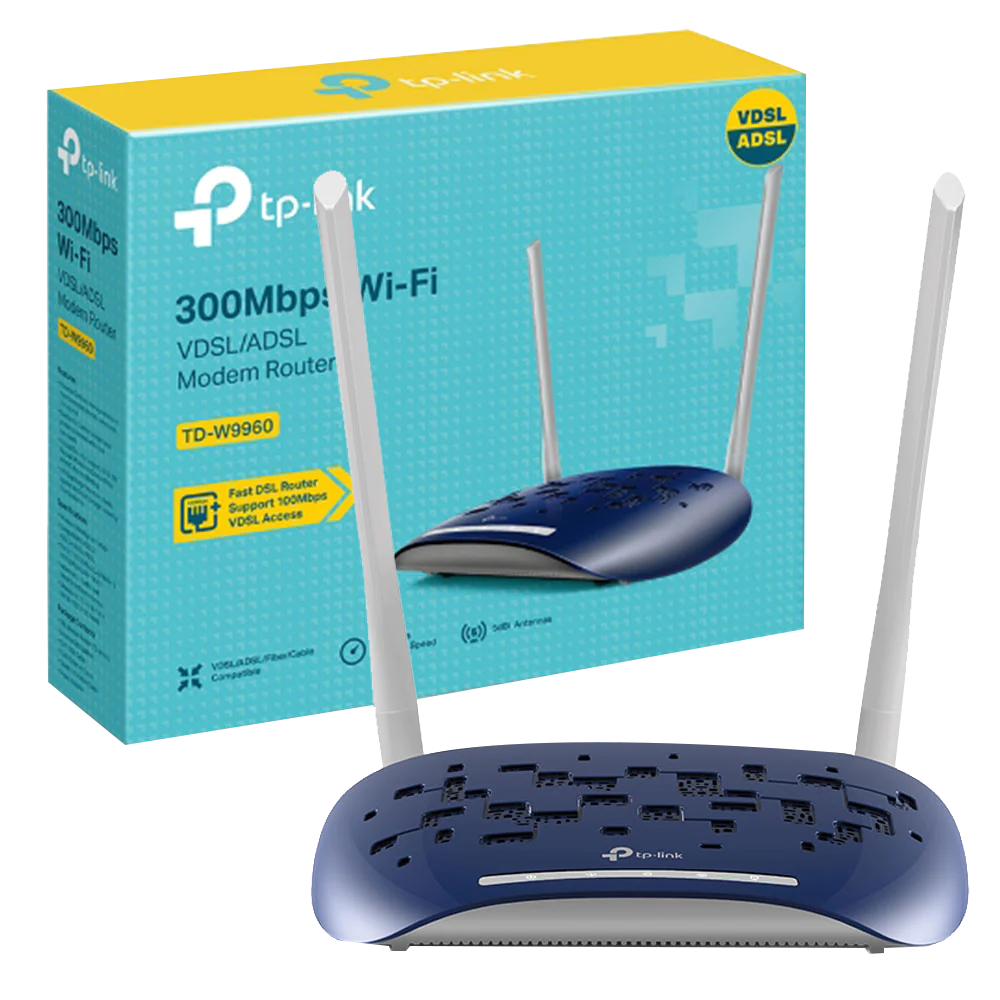

300Mbps Wireless N VDSL/ADSL Modem Router
TD-W9960

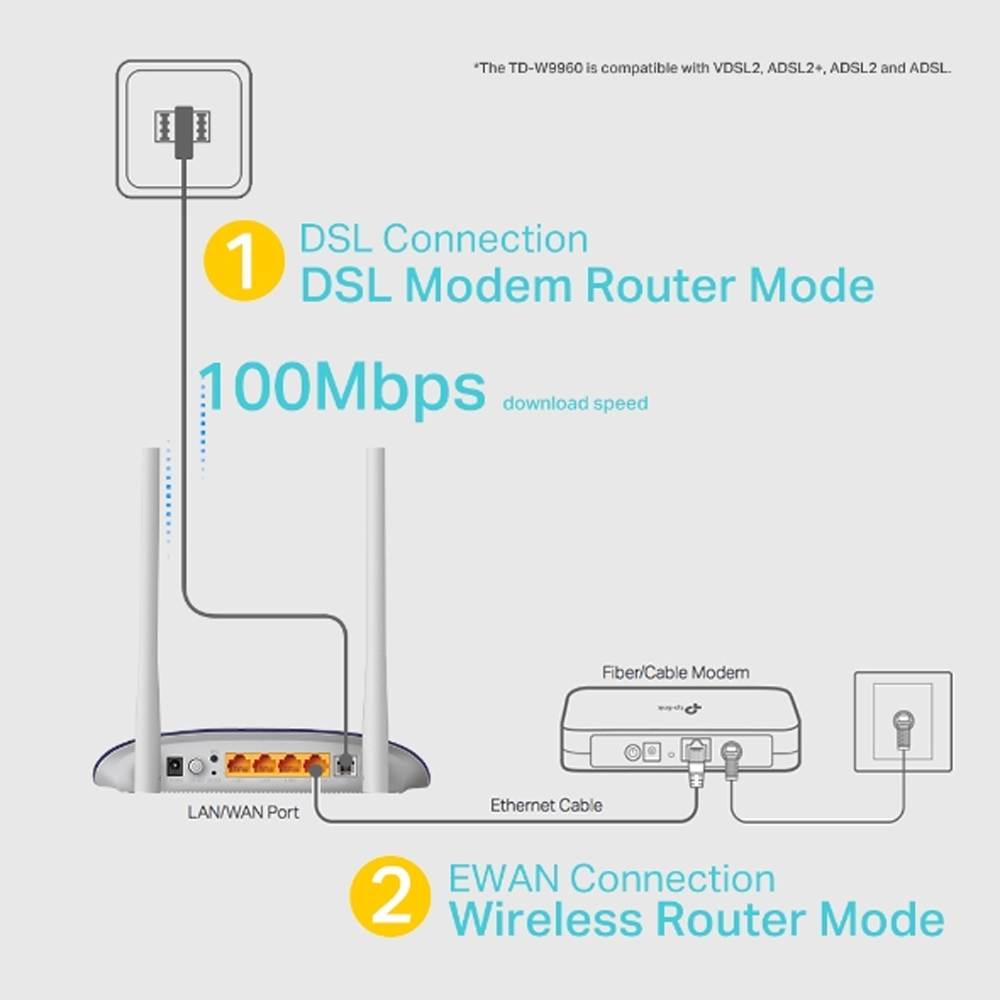

- Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
- Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
- Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
- Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere
Specifications

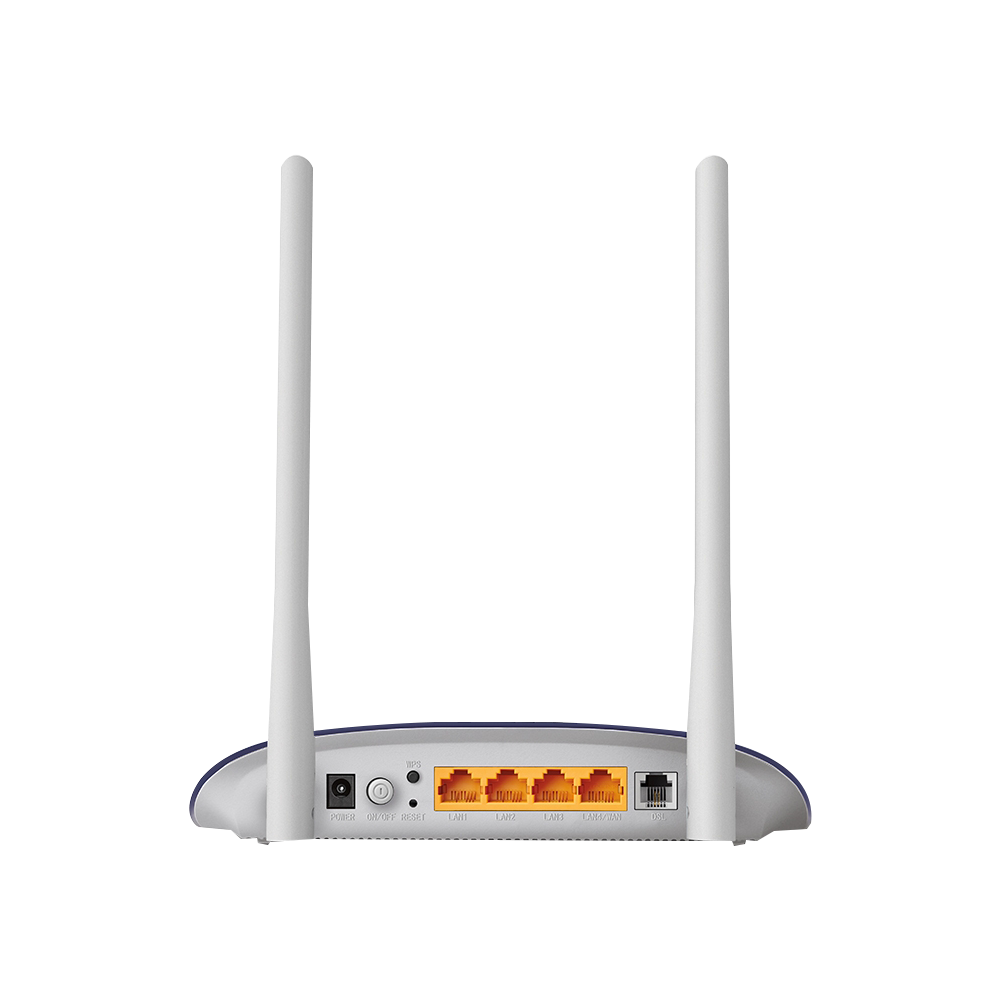

- Interface
-
3 10/100Mbps RJ45 LAN Ports
-
1 10/100Mbps RJ45 LAN/WAN Port
-
1 RJ11 Port
- Button
-
WPS Button
-
RESET Button
-
Power ON/OFF Button
- External Power Supply 9VDC/0.6A
- IEEE Standards IEEE 802.3, 802.3u
- VDSL2 Standards
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
- Dimensions ( W x D x H ) 181.6 x 129.7 x 36.2mm
- Antenna Type Omni directional, Fixed
- Antenna Gain 2 x 5dBi
- Wireless Standards IEEE 802.11b, 802.11g, 802.11n
- Frequency : 2.400-2.4835GHz
- Transmit Power: <20dBm(EIRP)
- Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering
- Quality of Service : WMM, Bandwidth Control (IP QoS)
- Security: NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls
- Operating Modes : VDSL/ADSL Modem Router, Wireless Router,
- Management Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
- VPN Pass-Through : IPSec VPN
- Protocols : Supports IPv4 and IPv6
- ATM/PPP Protocols:
-
PPPoE (RFC2516)
-
PPPoA (RFC 2364)
-
MER\IPoE (RFC 1483 Routed)
-
IPoA (RFC1577/2225)
-
Bridge (RFC1483 Bridge)
- Advanced Features: Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
- APP Tether App
- NAT Virtual Server, Port Triggering, DMZ, ALG, UPnP
- Warranty: 1 year
