Description

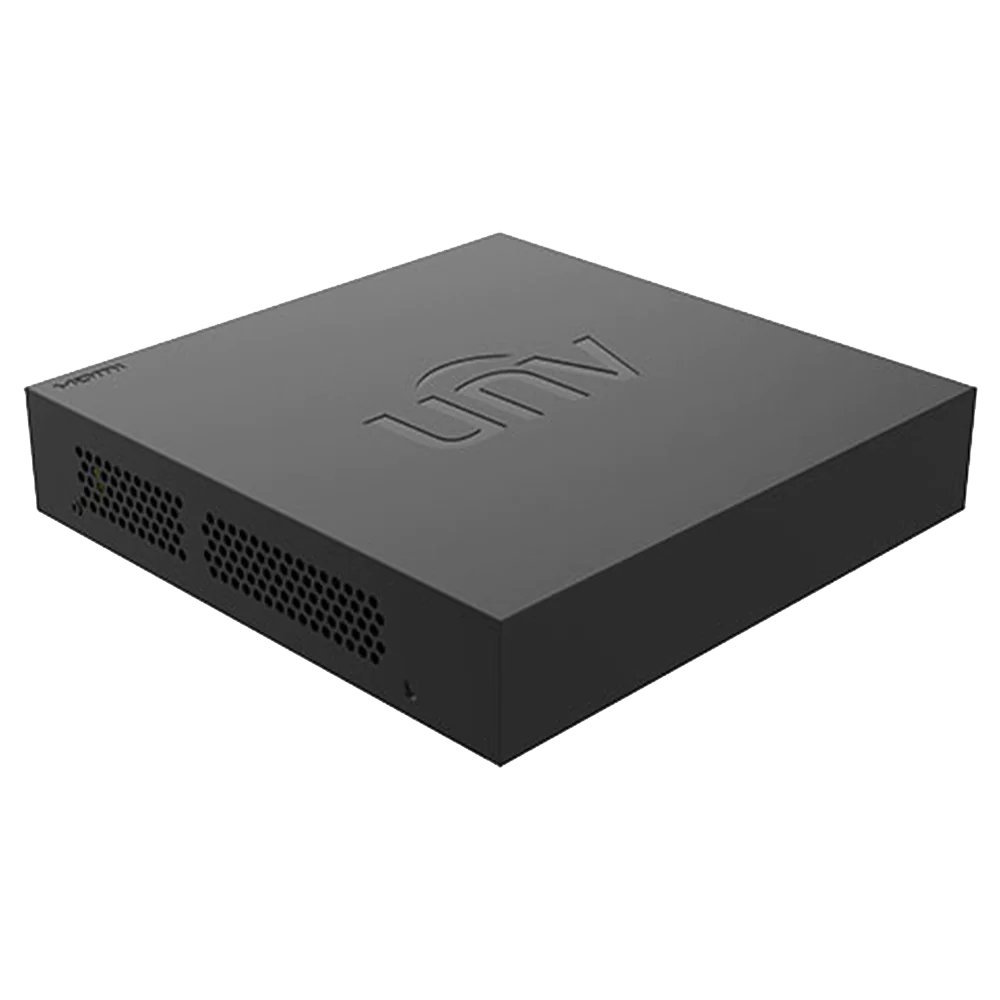

XVR Uniview 8 Channel XVR301-08F AHD
specifications
Video/audio
- Video input: 8 channels, BNC
- Live video: 1080p
- Video recording: 720p
- IP Video Input: 2 channels (IP only up to 10 channels), each channel up to 6MP
- Video inputs: AHD/CVI/TVI/CVBS
- Frame Rate: Main Stream: 1080P Lite at 15fps / 720P at 15fps - Sub Stream: D1 at 12fps / D1 at 15fps
- VGA/HDMI output: Up to 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Decoding Capacity: Analog: 8 x 1080p Lite at 15, 8 x 720p at 15 - IP: Up to 1 x 6MP at 20, 2 x 1080p at 30
Interface
- Hard disk type: 1 x SATA
- Storage capacity: up to 6 TB per hard drive
- Network interface: Rj45 port, 10M/100M self-adaptive Ethernet interface
- USB interface : Rear panel: 2 x USB2.0
- network
- Incoming bandwidth: 24Mbps (up to 40Mbps after all analogue camera conversion)
- Outgoing bandwidth: 64 Mbps
- Remote users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
general
- General alarm: motion detection
- Operating condition: Temperature: -10°C ~ +55°C (+14°F ~ +131°F) / Humidity: ≤ 90% relative humidity (RH) (non-condensing)
- Power supply: 12V DC
- Power consumption: ≤10W (without HDD)
- Dimensions: 190 x 202 x 42 mm
- Warranty: 1 year
