Description

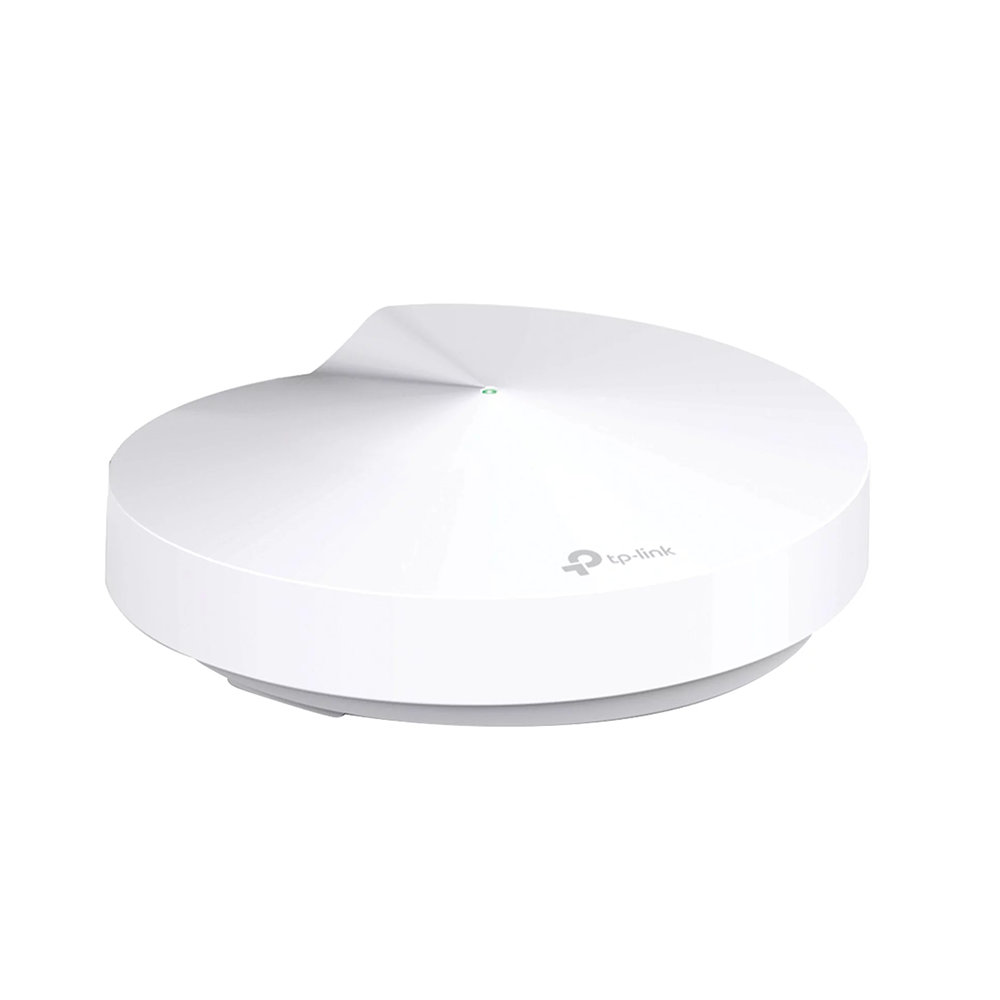

Deco M5
AC1300 Whole Home Mesh Wi-Fi System
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
- A Deco M5 three-pack delivers Wi-Fi to an area of up to 5500 square feet, while a Deco M5 two-pack delivers up to 3800 square feet. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco M5 provides fast and stable connections with speeds of up to 1267Mbps and works with any internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
- TP-Link HomeCareTM provides a suite of personalized and secure features, including Parental Controls, built-in Antivirus and Quality of Service (QoS).
- Setup is easier than ever with the Deco app there to walk you through every step.
specifications
WIRELESS
- Standards
- Wi-Fi 5
- IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds
- AC1300
- 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 400 Mbps (802.11n)
- WiFi Range
- 3-5 Bedroom Houses (3-pack)
- TP-Link Mesh Technology
- Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
- 4× Antennas (Internal)
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
- Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity
- Medium
- Dual-Band
- Distribute devices to different bands for optimal performance
- MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- Working Modes
- Router Mode
- Access Point Mode
HARDWARE

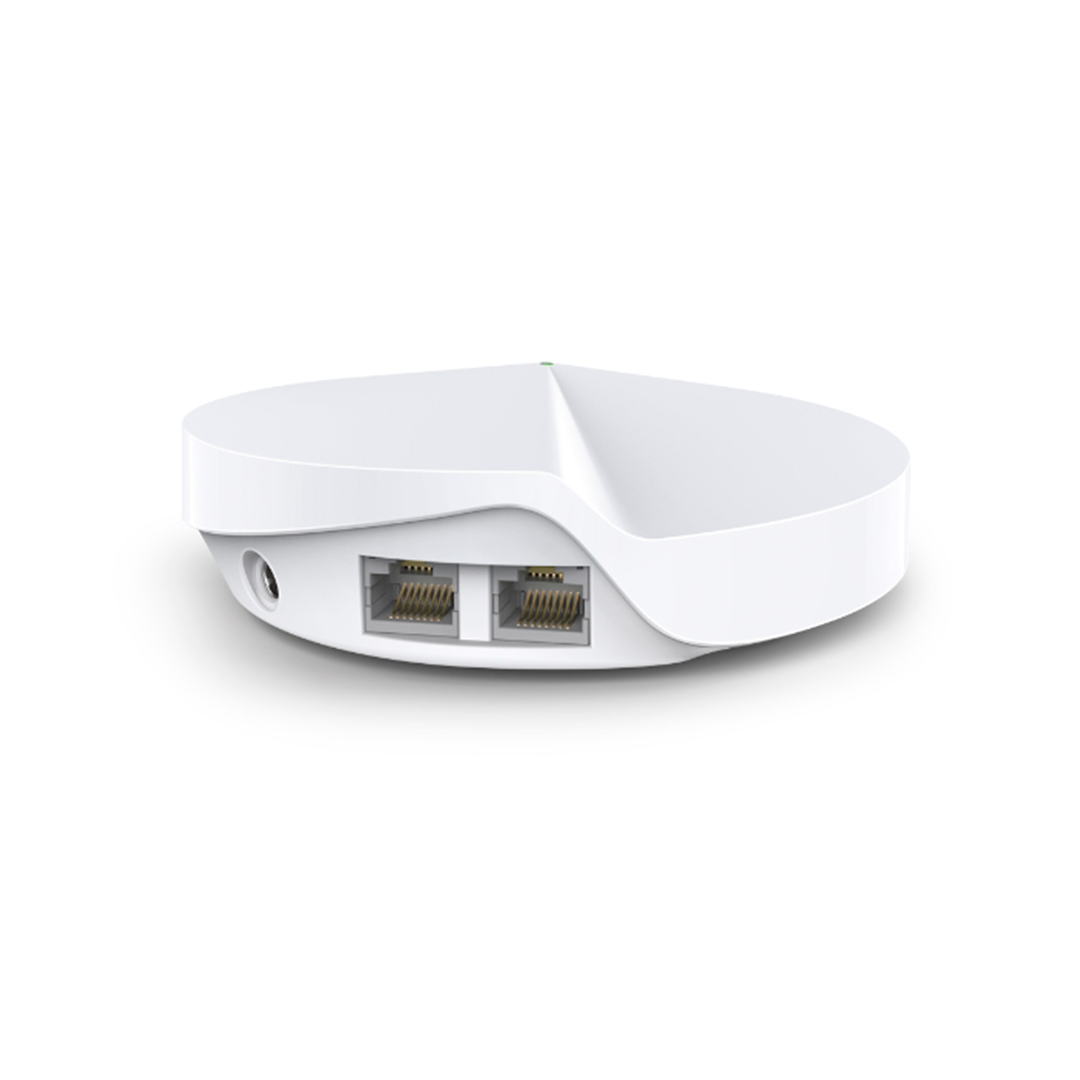

- Ethernet Ports
- 2× Gigabit Ports
- *Per Deco Unit
- Supports WAN/LAN auto-sensing
- Buttons Reset Button
SECURITY
- WiFi Encryption
- WPA-Personal
- WPA2-Personal
- Network Security
- SPI Firewall
- Access Control
- HomeCare™ Antivirus
- Malicious Site Checker
- Port Intrusion Prevention
- Infected Device Isolation
- Notification and Log
- Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
SOFTWARE
- Protocols
- IPv4
- IPv6
- Service Kits
- HomeCare™
- Learn More>
- Parental Controls
- HomeCare™ Parental Controls
- Custom Profiles
- Content Filtering
- URL FIltering
- Time Limit
- Time Schedule (Bed Time)
- Log Insight
- Usage Monitor
- Monthly Reports
- WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service
- HomeCare™ QoS
- QoS by Device
- QoS by Application
- Cloud Service
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding
- Port Forwarding
- UPnP
- IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP
- Address Reservation
- DHCP Client List
- Server
- DDNS TP-Link
- Management :Deco App
- TEST DATA
- WiFi Transmission Power
- CE:
- <20 dBm (2.4 GHz)
- <23 dBm (5 GHz)
- FCC:
- <30 dBm
- PHYSICAL
- Dimensions (W×D×H) 4.7 × 4.7 × 1.5 in (120 × 120 × 38 mm)
- System Requirements
- Android 5.0 or later
- iOS 9.0 or later
- Certifications :CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
- Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- warranty : 1 year
