Description

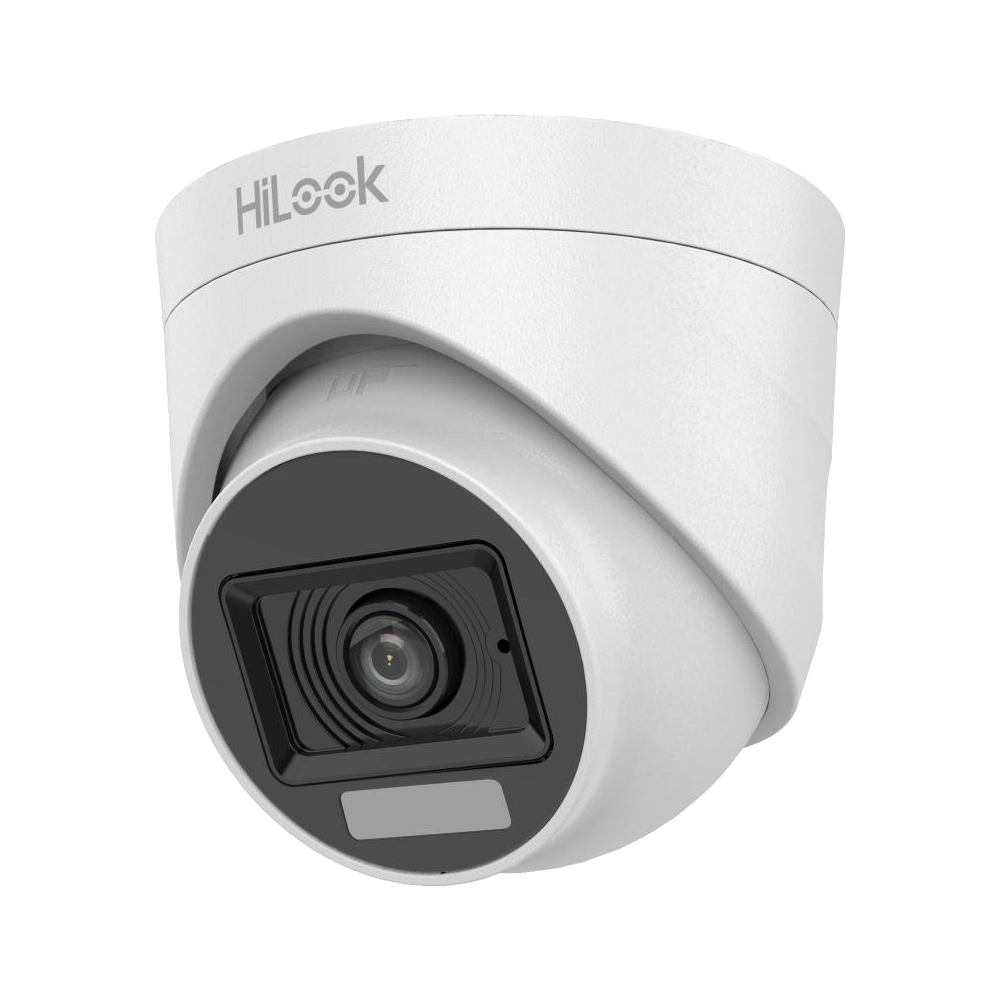

2MP Dual Light Audio Indoor Fixed Turret Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in microphone
- Smart-Hybrid light, optimize your security with flexible lighting options
specifications
- Camera
- Image Sensor :2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination :0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, tilt: 0 to 75°, rotate: 0 to 360°
- Signal System :PAL/NTSC
- Lens
- Lens Type :Fixed focal lens, 2.8 mm
- Focal Length & FOV :2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°
- Lens Mount :M12
- Illuminator
- Supplement Light Type :White Light;IR
- Supplement Light Range
- IR : up to 20 m
- White Light : up to 20 m
- Image
- Image Settings Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 1080P @30 fps, 1080P @25 fps
- AHD: 1080P @30 fps, 1080P@25 fps
- CVI: 1080P @30 fps, 1080P @25 fps
- CVBS: PAL/NTSC
- Day/Night Mode :Auto/Color/BW (Black and White)
- Wide Dynamic Range: (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Built-in MicrophoneYes
- General
- Material :Plastic
- Dimension: 85.4 mm × 71.46 mm (Ø3.36" × 2.81")
- Weight :Approx. 135 g (0.3 lb)
- Operating Condition :-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
- Communication :HIKVISION-C
- Power Supply :12 VDC ± 25%
- Consumption :Max. 3.2 W
- warranty : 1 year
