Description

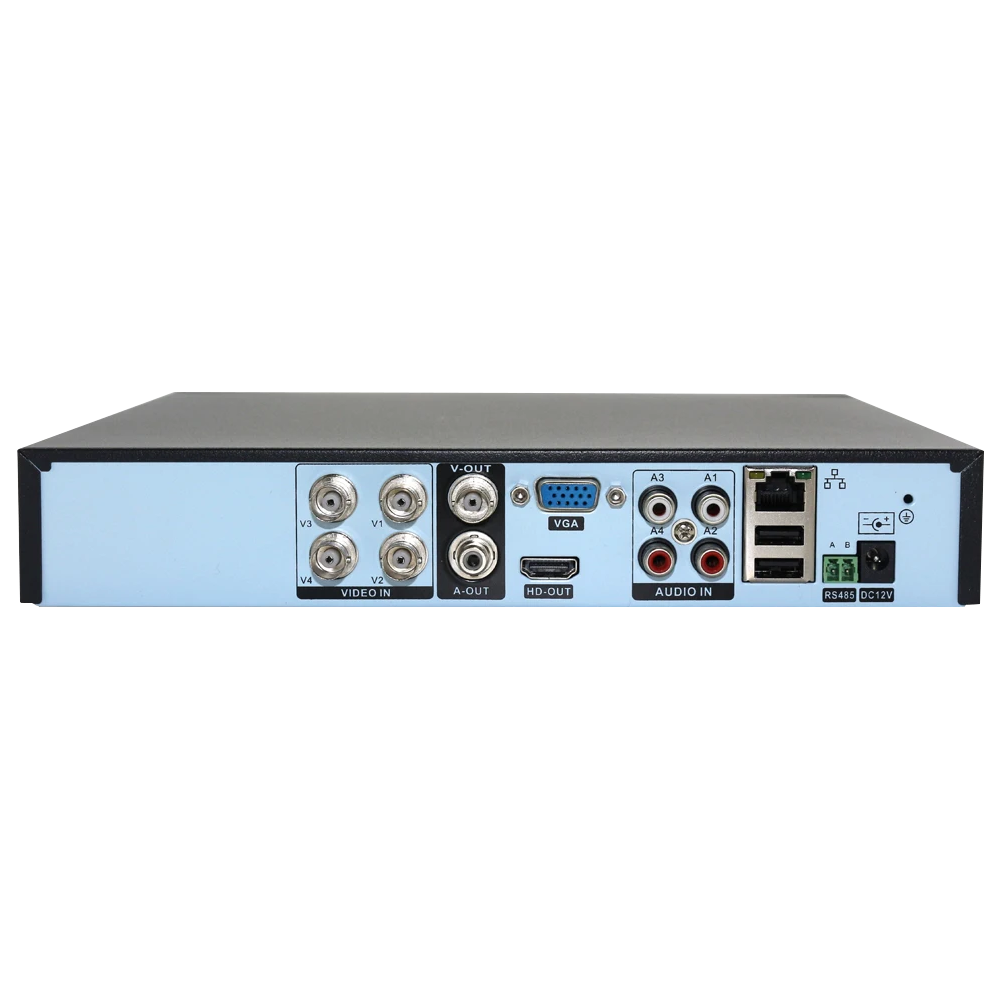

4 Ch 5 MP H.265 DVR
- 4 channels
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected.
Specification
Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream:8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
- 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
- IP Video Input
- 4-ch (up to 12-ch)
- Up to 8 MP resolution
- Enhanced IP mode on:
- 8-ch (up to 16-ch), each up to 4 Mbps
- ;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
- 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
- 1920 × 1080/60Hz,
- 1280 × 1024/60Hz,
- 1280 × 720/60Hz
- HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS Output
- 1-ch, BNC (1.0 Vp-p, 75 Ω),
- resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 8-ch
- HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output
- 1-ch, 1920 × 1080/60Hz,
- 1280 × 1024/60Hz,
- 1280 × 720/60Hz
- HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Total Bandwidth : 128Mbps
- Network Protocol :TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection 64
-
Network Interface :1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface
- 1 × USB 2.0;
- 1 × USB 3.0
- Alarm In/Out N/A
General
- Power Supply 12 VDC
- Consumption ≤ 10 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 2 kg (4.4 lb)
- warranty : 1 year
