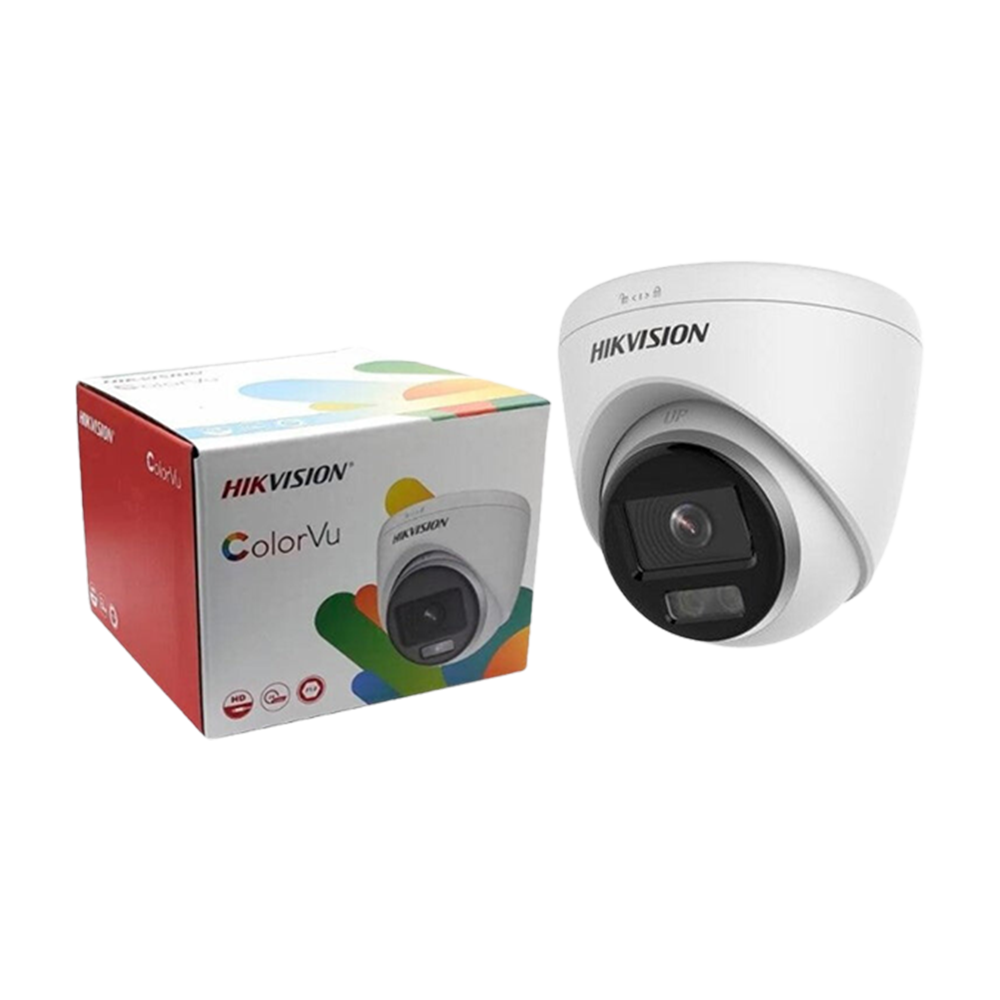

HIKVISION DS-2CE70DF0T-PF
Specifications:
Camera:
- Image Sensor : 2 MP CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System : PAL/NTSC
- Light Alarm : Solid Light Alarm (White Light)
Lens
- Lens Type : 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Focal Length & FOV :
- 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°
- 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°
- 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°
- Lens Mount : M12
Illuminator
- Supplement Light Range : Up to 20 m
- Smart Supplement Light : Yes
- Supplement Light Type : White Light
- Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
- Image Settings : Brightness, Mirror, Sharpness, Anti-Banding, AGC
- Frame Rate :
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Day/Night Mode : Color
- Wide Dynamic Range (WDR) : Digital WDR
- Image Enhancement : DWDR, BLC, HLC, Global
- Noise Reduction : 3D DNR/2D DNR
- White Balance : Auto/Manual
- InterfaceVideo Output : Switchable TVI/AHD/CVI/CVBS
General
- Material : Plastic
- Dimension : Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2")
- Weight : Approx.161 g (0.36 lb)
- Operating Condition : -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Communication : HIKVISION-C
- Language : English
- Power 12 VDC ± 25%, Max. 2.4 W
- Warranty: 1 YEAR
