Description
Smart SE 630 Stabilizing power usage for daily bases
- The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
specifications
- P/N :SPS-630M
- WATTS :630W
- VENTILATEUR RGB :Non
- FORMAT :ATX
- TYPE :Intel ATX 12V 2.3 & SSI EPS 12V 2.92
- MAX. OUTPUT CAPACITY :630W
- PEAK OUTPUT CAPACITY :730W
- DIMENSION ( W / H / D ) :150mm(W) x 86mm(H) x 160mm(L)
- PFC (POWER FACTOR CORRECTION) :Active PFC
- POWER GOOD SIGNAL :100-500 msec
- HOLD UP TIME :16msec (minimum) at 80% of full load at 230Vac input.
- INPUT CURRENT :4.5A max.
- INPUT FREQUENCY RANGE :47Hz - 63Hz
- INPUT VOLTAGE :200VAC - 240VAC
- OPERATING TEMPERATURE :0℃ to +35℃
- OPERATING HUMIDITY :20% to 90%,non-condensing
- STORAGE TEMPERATURE :-20 ℃ to +70 ℃
- STORAGE HUMIDITY :5% to 95%, non-condensing

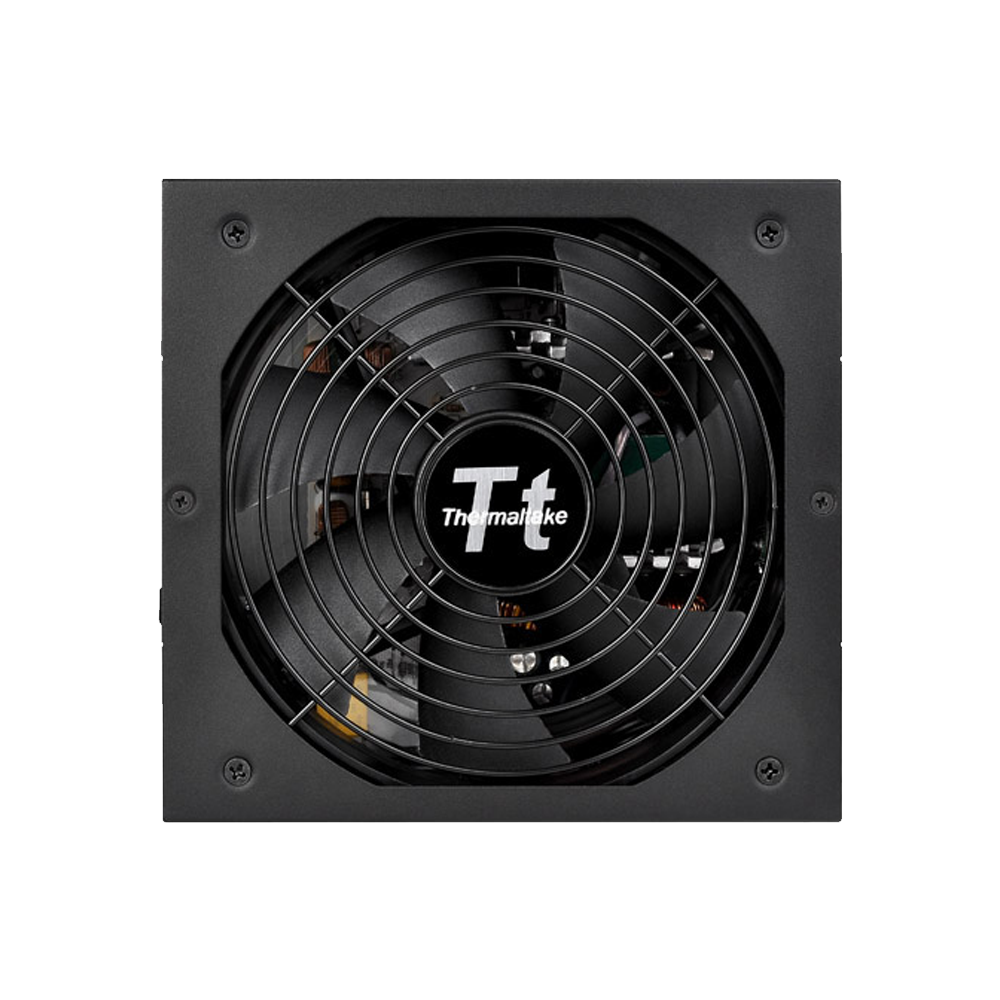

- SYSTÈME DE REFROIDISSEMENT :14cm Sleeve Fan: 1900RPM ± 10%
- EFFICIENCY :Deliver up to 87% efficiency
- MTBF :100,000 hrs minimum
- SAFETY APPROVAL :CE, TUV, GOST

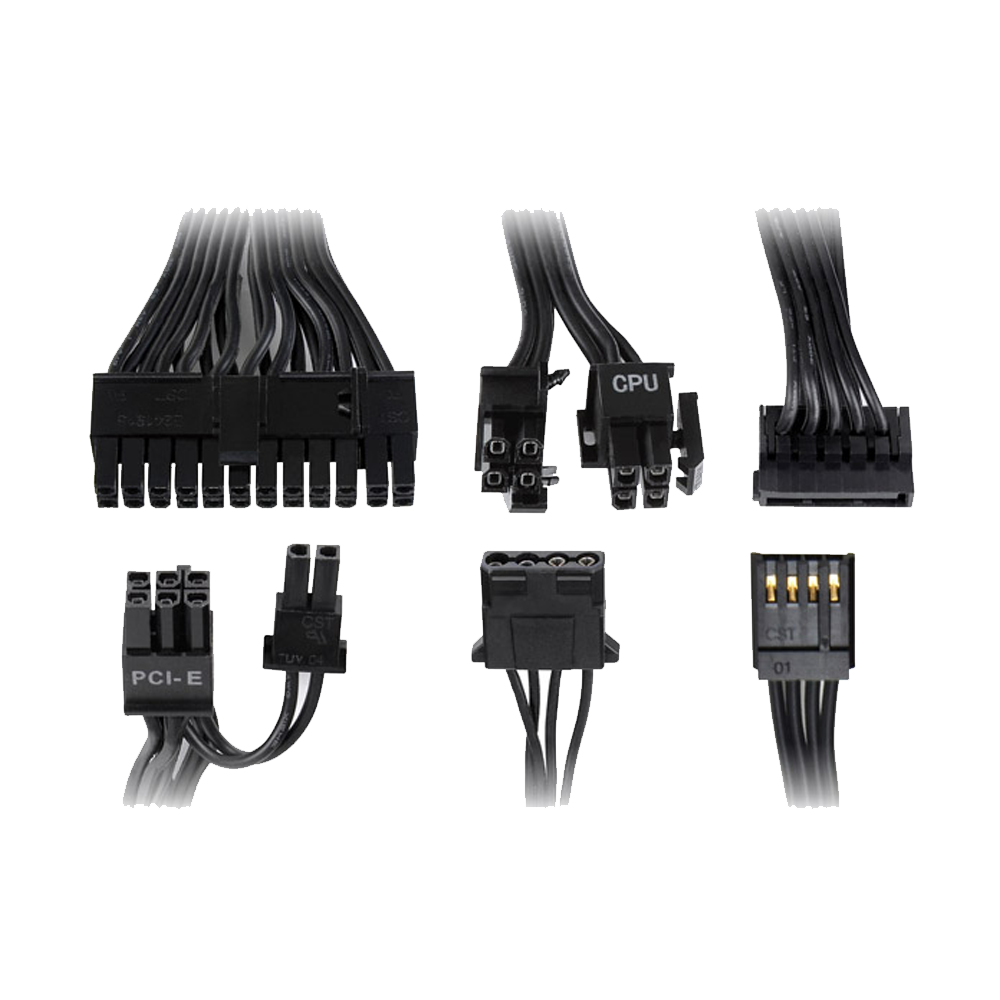

- PCI-E 6+2PIN :6+2pin x 2
- PROTECTION :OVP, OPP, SCP
- warranty : 1 year
