Description

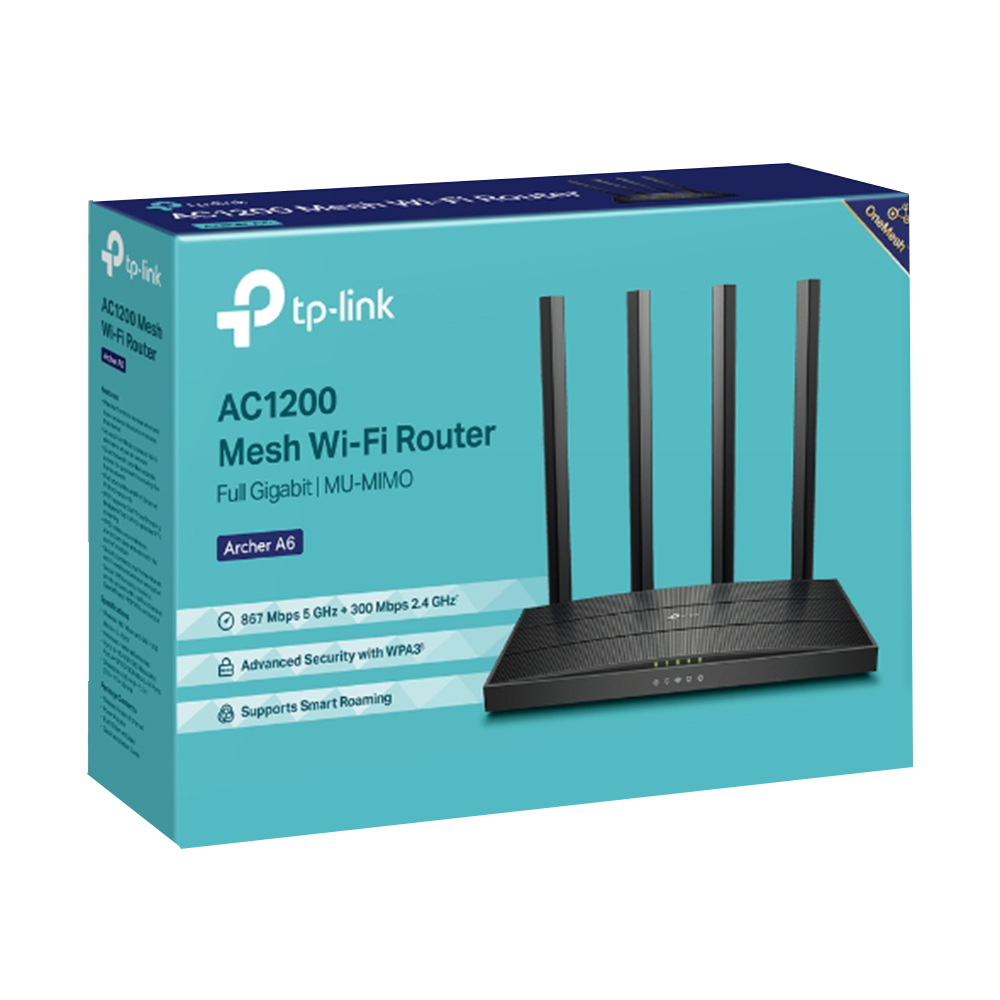

Archer A6
AC1200 Wireless MU-MIMO Gigabit Router
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Access Point Mode –Supports AP Mode to transform your wired connection into wireless network
- Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app.
Specifications
WIRELESS
- Standards Wi-Fi 5 : IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds AC1200 :5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity Medium
- Dual-Band
- Allocate devices to different bands for optimal performance
- MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
- Airtime Fairness Improves network efficiency by limiting excessive occupation
- Working Modes
- Router Mode
- Access Point Mode
- Processor Dual-Core CPU

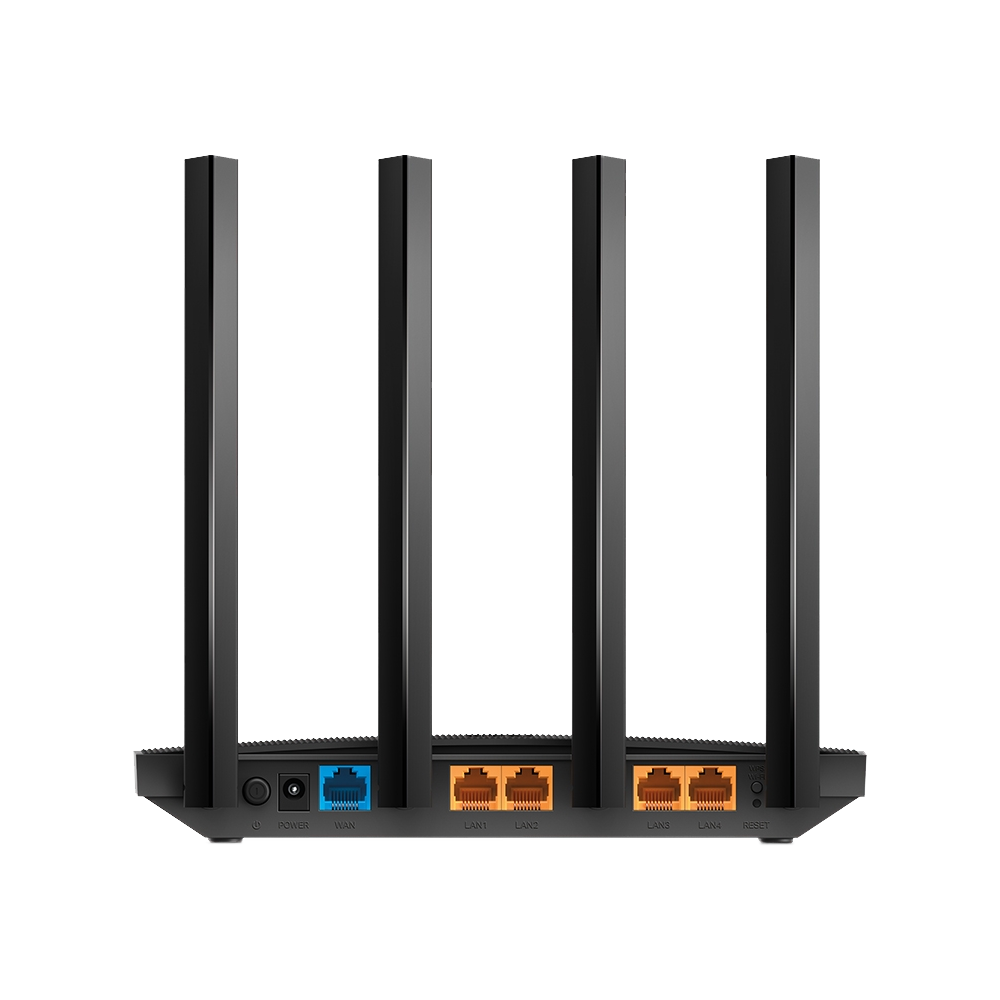

- Ethernet Ports 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
- Buttons
- WPS/Wi-Fi Button
- Power On/Off Button
- Reset Button
- Power 12 V ⎓ 1 A
SECURITY
- WiFi Encryption WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
- Network Security
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
- VPN Server
- OpenVPN
- PPTP
SOFTWARE
- Protocols
- IPv4
- IPv6
- Parental Controls
- URL Filtering
- Time Controls
- WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service
- QoS by Device
- NAT Forwarding
- Virtual Servers
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP
- Address Reservation
- DHCP Client List
- Server
- DDNS
- TP-Link
- NO-IP
- DynDNS
- Management
- Tether App
- Webpage
TEST DATA
- WiFi Transmission Power CE EIRP:
- <20dBm(2.4GHz)
- <23dBm(5GHz)
- FCC:<30dBm(2.4GHz & 5GHz)
- WiFi Reception Sensitivity
- 5GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm
- 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm
- 11ac HT80 mcs9:-62dBm
- 2.4GHz: 11g 54Mbps:-78dBm;
- 11n HT20 mcs7:-74dBm
- 11n HT40 mcs7:-71dbm
PHYSICAL
- Dimensions (W×D×H) 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
- Warranty: 1year
