Description
LS1005G

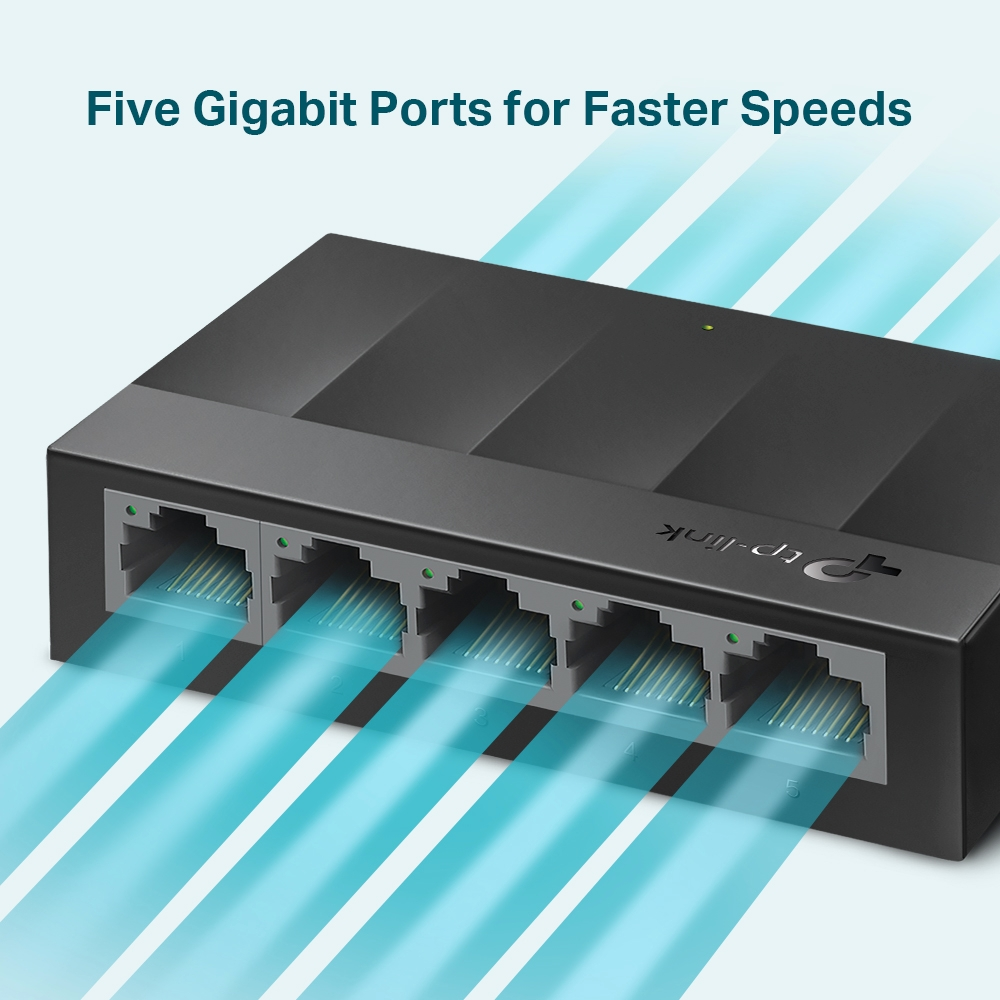

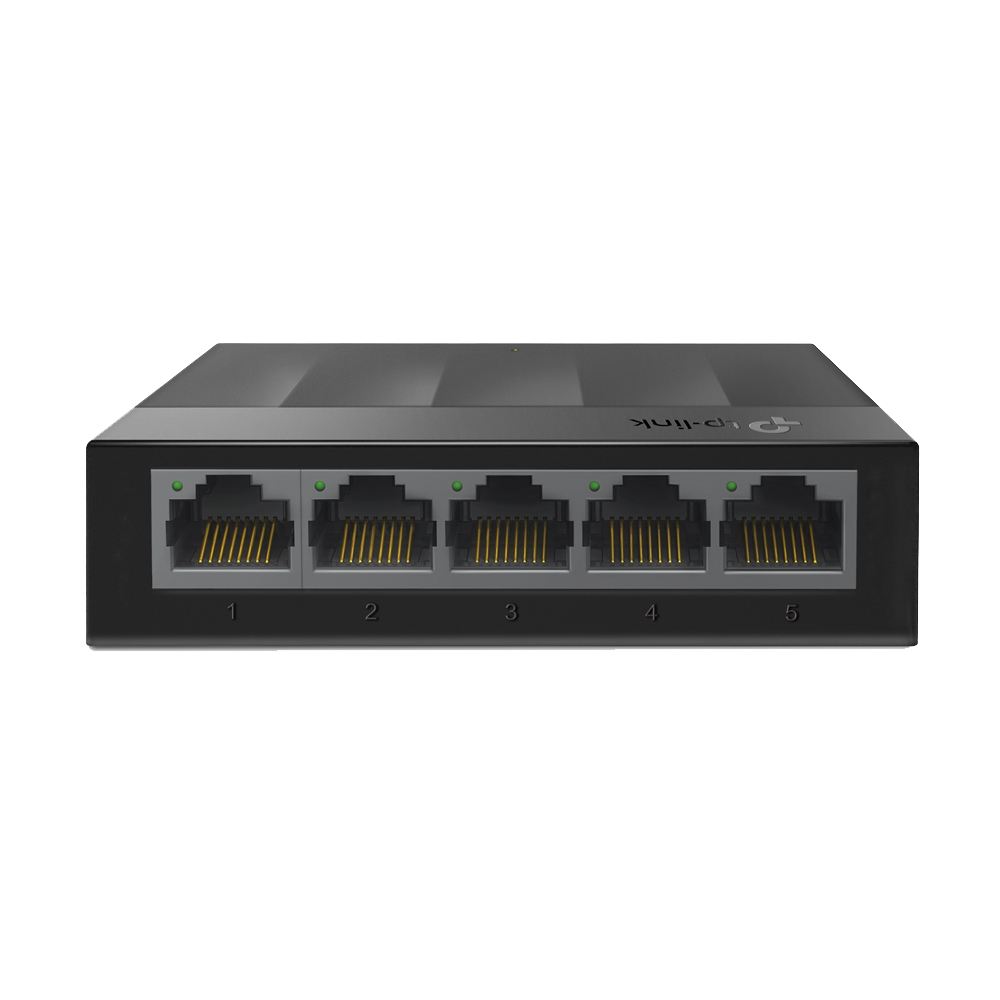

5-Port 10/100/1000Mbps Desktop Switch
- 5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

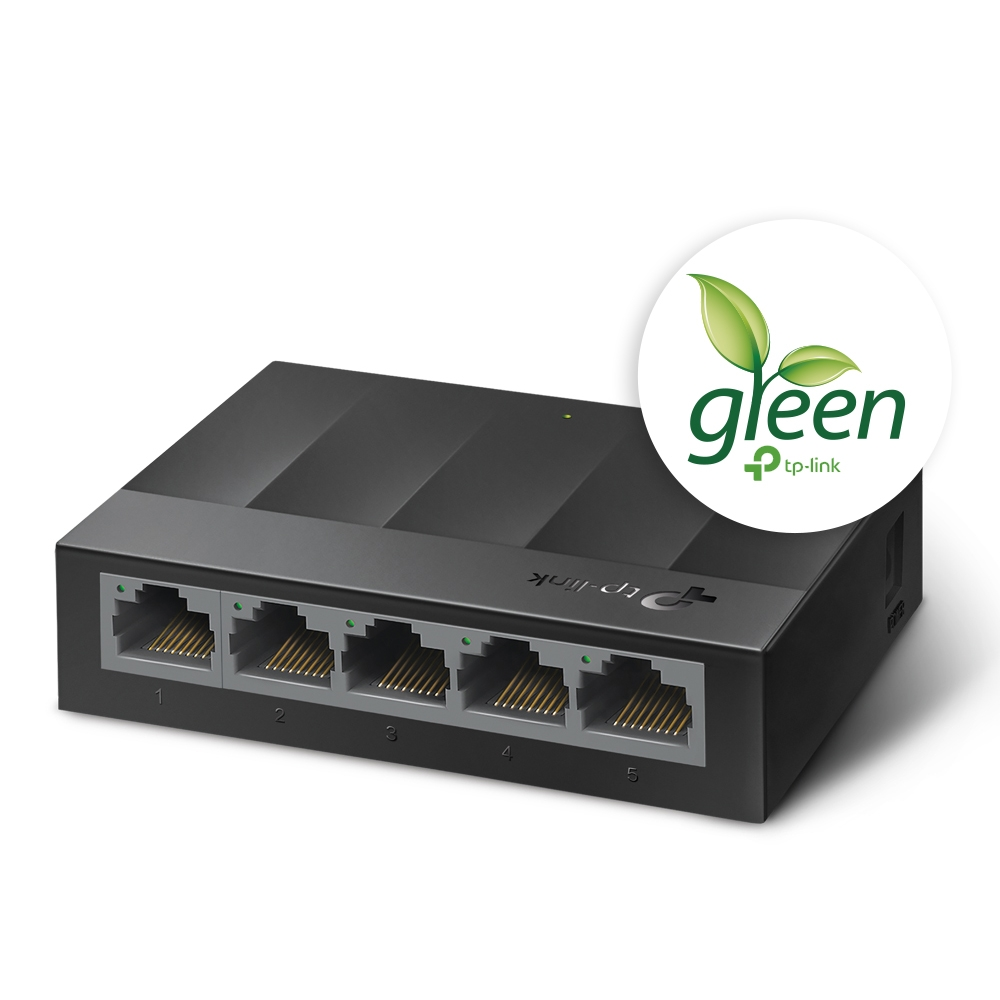

- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed

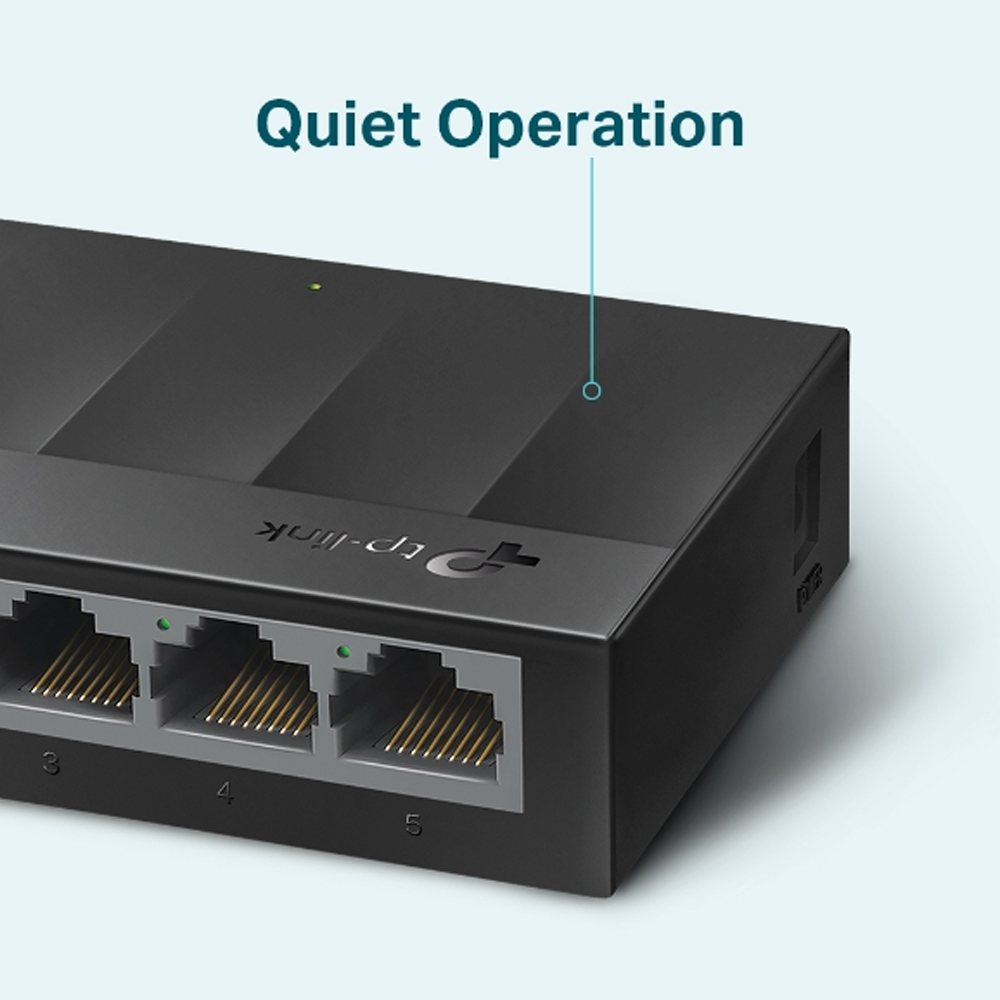

- Fanless design ensures quiet operation
Specifications
- HARDWARE FEATURES
- Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Interface : 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity : Fanless
- External Power Supply : External Power Adapter (Output: 5VDC/0.6A)
- Dimensions ( W x D x H ) : 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
- Max. Power Consumption :3.7W
- Max. Heat Dissipation :12.617 BTU/h
- PERFORMANCE
- Switching Capacity :10 Gbps
- Packet Forwarding Rate : 7.4 Mpps
- MAC Address Table :2K
- Packet Buffer Memory : 1.5 Mb
- Jumbo Frame : 16 KB
- SOFTWARE FEATURES
-
Advanced Features : Green Technology
802.3X Flow Control
Back Pressure - Transmission Method : Store and Forward
- OTHERS
- Certification : CE, FCC, RoHS
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - warranty : 1 year
