Description

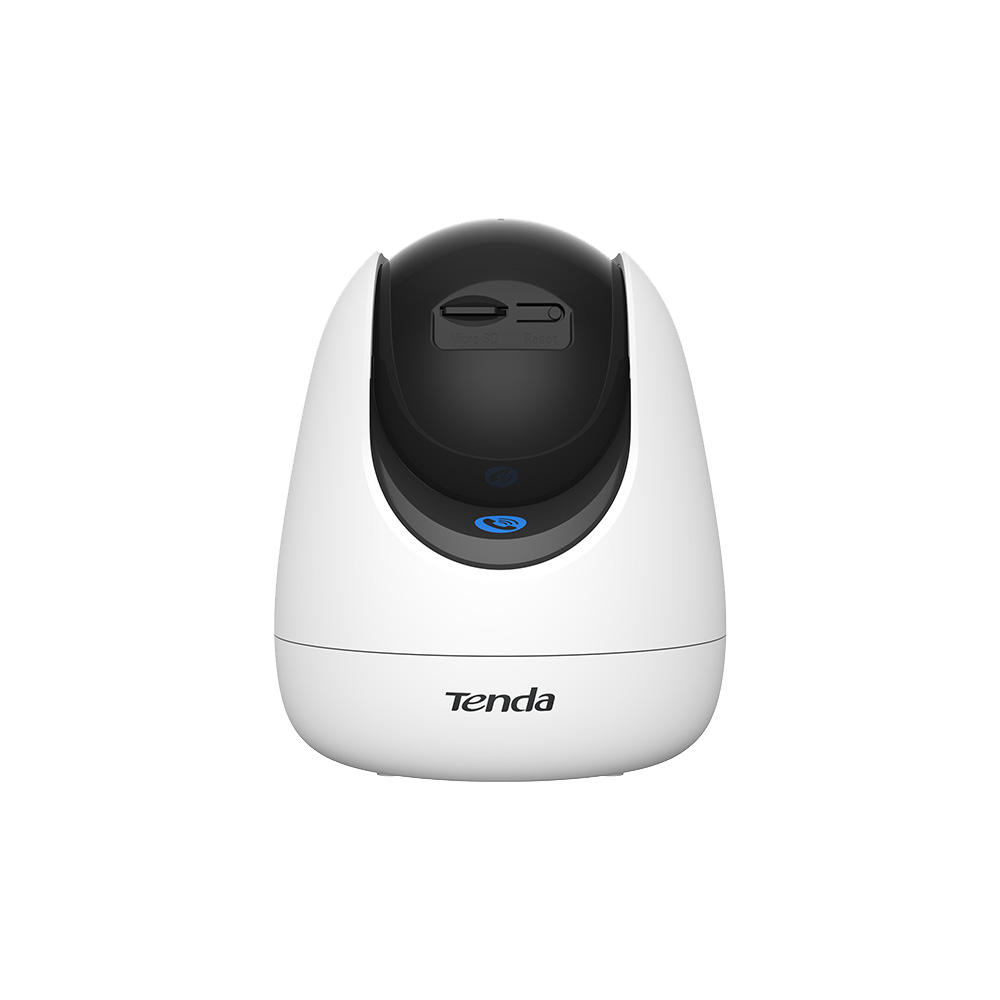

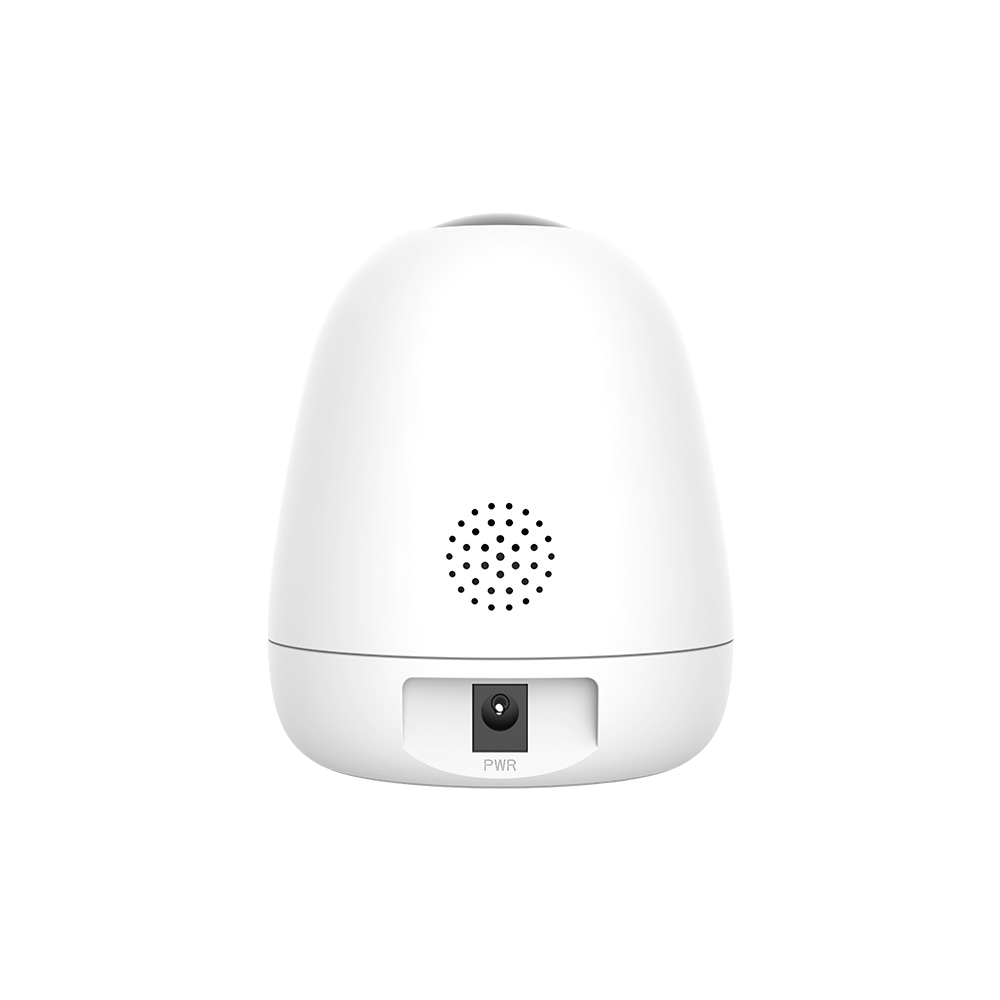

CP3 Pro 3MP Security Pan/Tilt Camera
- The Pan/Tilt Security Camera CP3 Pro is a high-performance home monitoring camera that integrates such functions as 360 ° visual coverage,Wi-Fi 6,3MP video,human/pet detection,cry detection,one-touch call,two-way audio,sound & light alarm and DIY audio.It is commonly used in indoor monitoring scenarios,such as homes,shops,offices and classrooms.
specifications
- Image Sensor: 1/3 Progressive Scan CMOS sensor
- Day and Night: ICR type
- Bracket Angle Adjustment : /
- Focal Length : 4mm
- Aperture: F2.0
- FOV :Horizontal : 78°, Vertical : 41.8°, Diagonal : 95°
- Supplementary Light : 2 IR Lights
- Supplementary Light Distance : Up to 10 m/32 ft (depending on environment)
- IR Wavelength : 850nm
- Night Vision Mode : Black & White Mode
- Video Encoding Format :H.265, H.264
- Main Stream Resolution: 2304 × 1296, 1920 × 1080, 1280 × 720
- Sub Stream Resolution : 640 x 360 , 352 x 288 , 320x240
- Frame Rate :1-30fps, Default 20fps
- Bit Rate : 512kbps -- 4096kbps
- Bit Rate Control : CBR,VBR
- Audio Encoding Format: G.711A, G.711U, AAC
- Audio Sampling Rate : 8 kHz
- Audio Communication : Two-way Audio, One-touch Call
- Image Enhancement :DWDR, BLC, HLC, 3D DNR
- Privacy Mask :4 Areas
- ONVIF : Support
- Protocols :TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,
- ARP
- Pan Movement Range : 0°--355°
- Tilt Movement Range :-65°--90°
- Preset : 6
- Patrol :Panoramic Patrol, Preset Patrol
- Antenna: Internal antenna
- Wireless Standard: IEEE 802.11 b/g/n/ax
- Transmission Rate: Up to 287Mbps
- Channel Width: 20/40 MHz
- Modulation : DSSS/OFDM/OFDMA
- Frequency Band :2.4GHz: 2412MHz-2472MHz(CH1-CH13)
- Transmit Power: 2.4GHz: <0.1W(EIRP)
- Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
- Smart Detection: Motion Detection, Tempering Detection, Human Detection, Cry Detection, Pet Detection
- Smart Linkage:Sound&light Alert, Human Tracking
- DIY Audio: 3 Customized Audios
- Audio Input : Built-in MIC
- Audio Output: Built-in Speaker
- Storage: Built-in Micro SD Card Slot, Up to 256 GB
- Reset Button : Support
- LED Indicator : Dual Color (red & blue) LED Indicator
- Power: 9V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
- Smart Integration: Amazon Alexa
- Product Dimension :103mm x 88mm x 88mm (4.1 ×3.5 × 3.5)
- Product Weight : 200g (0.44lb)
- Installation Method: Desktop, Ceiling Mounting
- Certification :CE, RoHS, FCC, RCM, UKCA
- Temperature :Operating Temperature: -10°C ~ 45°C (14°F ~ 13°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
- Storage Humidity: 3% ~ 95% RH (non-condensing)
- warranty : 1 year
