Description
Specifications
- Product Collection :4th Generation Intel® Core™ i3 Processors
- Code Name : Products formerly Haswell
- Vertical Segment : Desktop

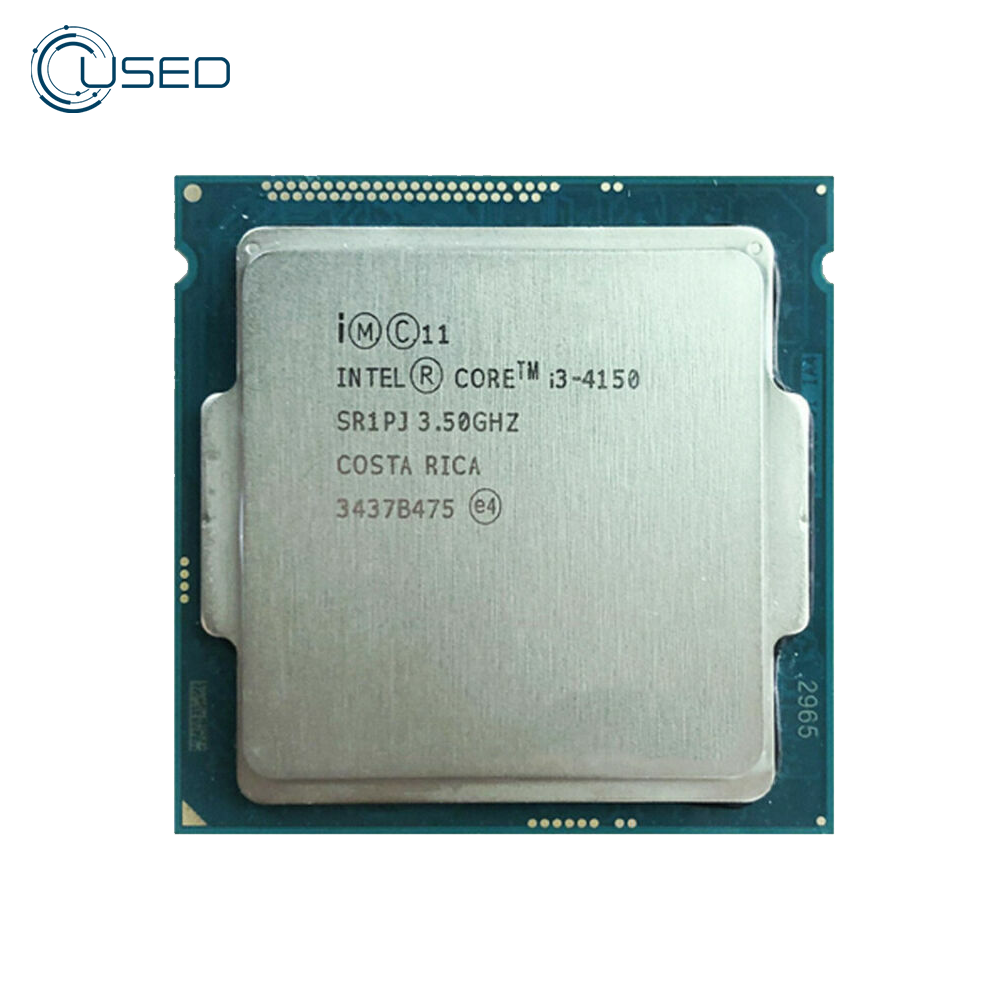

- Processor Number : i3-4150
- Lithography : 22 nm
- CPU Specifications
- Total Cores 2
- Total Threads 4
- Processor Base Frequency 3.50 GHz
- Cache 3 MB Intel® Smart Cache
- Bus Speed 5 GT/s
- TDP 54 W
- Supplemental Information
- Marketing Status :Discontinued
- Launch Date Q2'14
- Servicing Status End of Servicing Lifetime
- Embedded Options Available No
- Memory Specifications
- Max Memory Size (dependent on memory type) 32 GB
- Memory Types DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
- Max # of Memory Channels 2
- Max Memory Bandwidth 25.6 GB
- ECC Memory Supported ‡ Yes
- GPU Specifications
- GPU Name‡ Intel® HD Graphics 4400
- Graphics Base Frequency 350 MHz
- Graphics Max Dynamic Frequency 1.15 GHz
- Graphics Video Max Memory 2 GB
- Graphics Output eDP/DP/HDMI/DVI/VGA
- Max Resolution (HDMI)‡ 4096x2304@24Hz
- Max Resolution (DP)‡ 3840x2160@60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡ 3840x2160@60Hz
- Max Resolution (VGA)‡ 1920x1200@60Hz
- DirectX* Support 11.1/12
- OpenGL* Support 4.3
- Intel® Quick Sync Video Yes
- Intel® InTru™ 3D Technology Yes
- Intel® Clear Video HD Technology Yes
- # of Displays Supported ‡3
- Device ID0x41E
- Expansion Options
- Scalability1S Only
- PCI Express Revision Up to 3.0
- PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes 16
- warranty :30 days
