Description

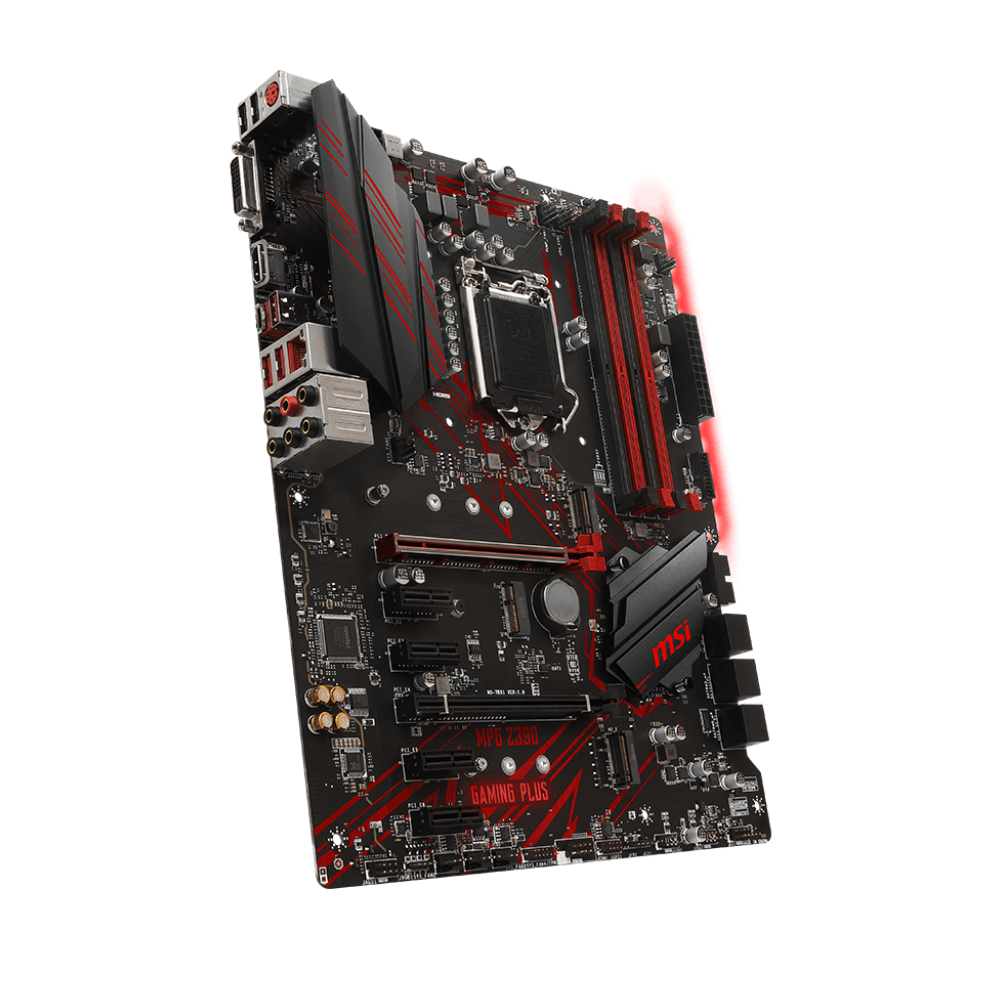

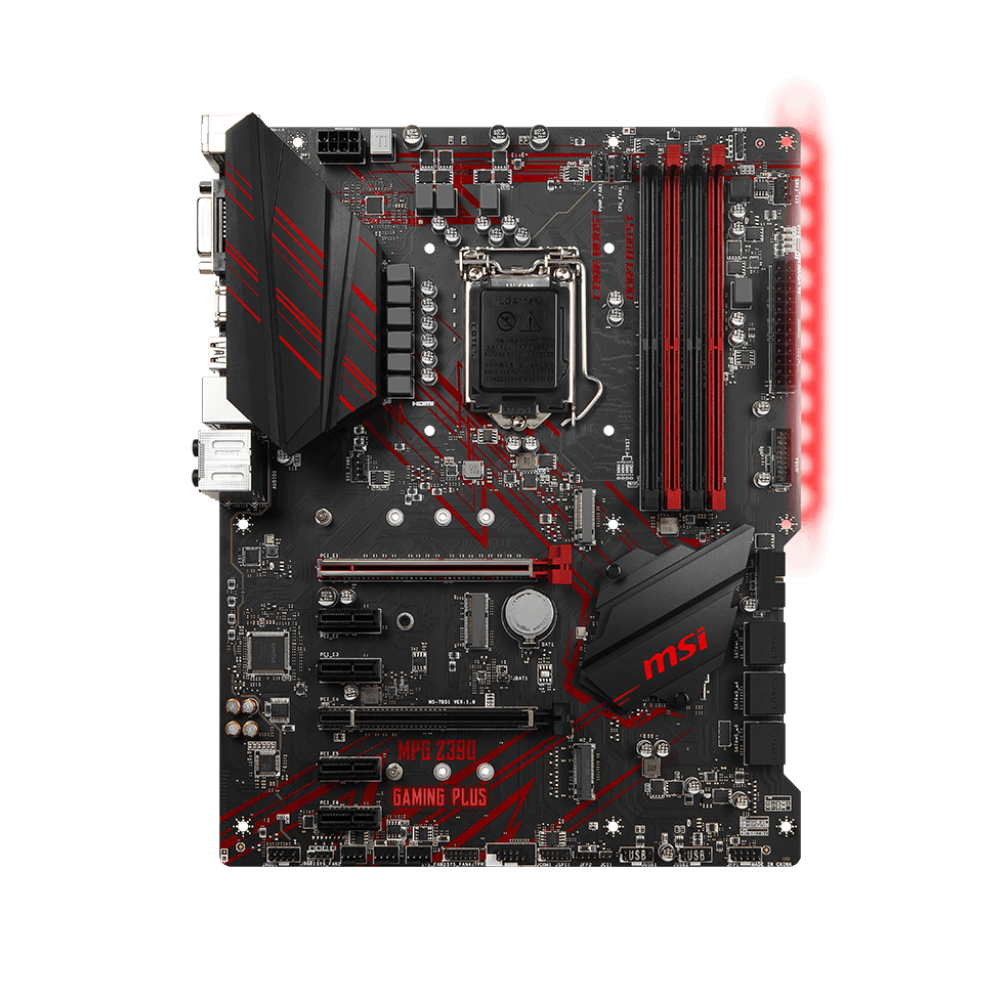

Motherboard Intel MSI MPG Z390
features
-
Twin Turbo M.2 :With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes
performance for NVMe based SSDs. -
Intel Turbo USB 3.1 Gen2 :Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
PCI-E Steel Armor :Protecting VGA cards against bending and EMI - Intel<sup>®</sup> CNVi Ready :Supports Intel® CNVi Wi-Fi, IEEE 802.11 AC wave2.
-
Core Boost :With premium layout and fully digital power design to support
more cores and provide better performance. - Extended Heatsink Design :MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
-
Audio Boost :Reward your ears with studio grade sound quality for the most
immersive audio experience. -
DDR4 Boost :Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications
- Model Name : MPG Z390 GAMING PLUS
- CPU Support : Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
- CPU Socket : LGA 1151
- Chipset : Intel® Z390 Chipset
-
Graphics Interface : 2 x PCI-E 3.0 x16 slots
Supports 2-way CrossFire - Display Interface : HDMI™, DVI – Requires Processor Graphics
- Memory Support: 4 DIMMs, Dual Channel DDR4-4400(OC)
-
Expansion Slots: 4 x PCI-E x1 slot
1 x M.2 for Intel® CNVi Wi-Fi module -
Storage: 2 x M.2 slots, support Intel®
Optane™ Technology
6 x SATA 6Gb/s -

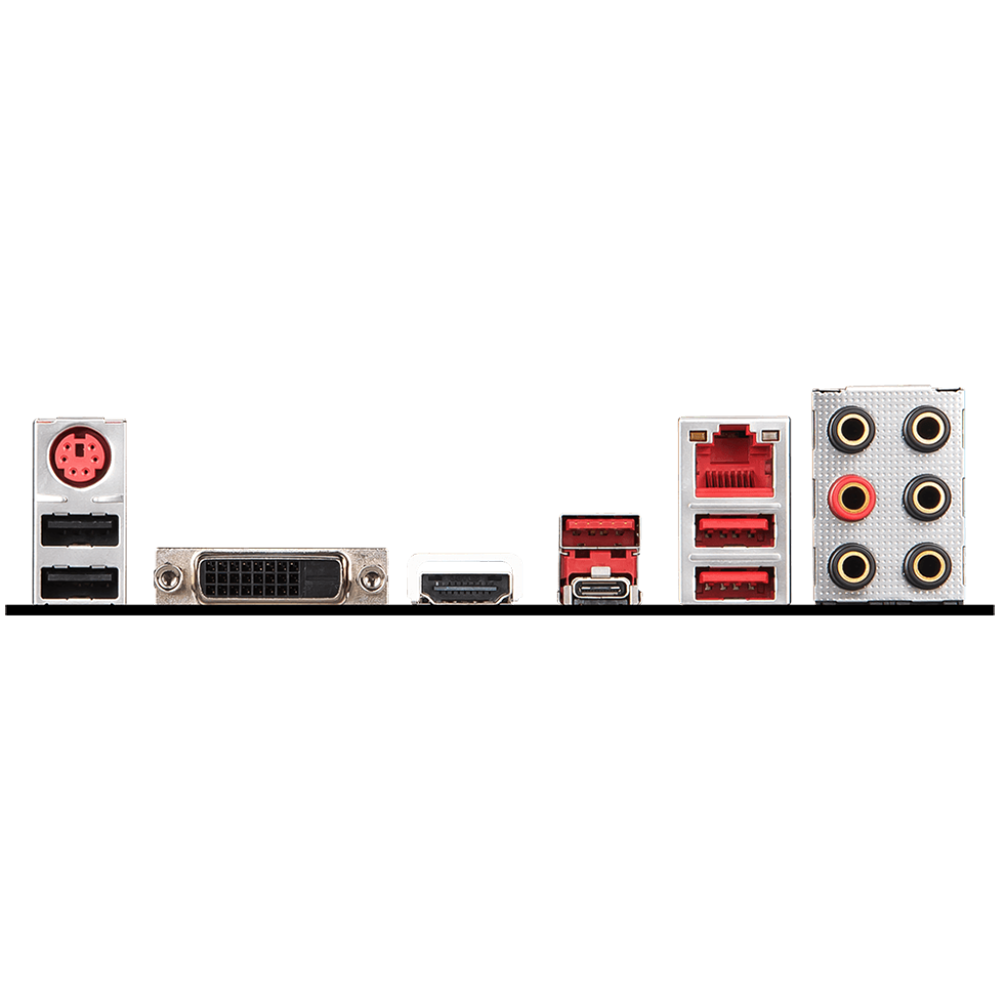

USB Ports: 2 x USB 3.1 (Gen2, A+C) + 6 x USB 3.1 (Gen1) + 6 x USB
2.0 - LAN :Intel® I219-V Gigabit LAN
- Audio: 7.1 Channel High Definition Audio with Audio Boost
- Form Factor: ATX
- warranty : 1 year

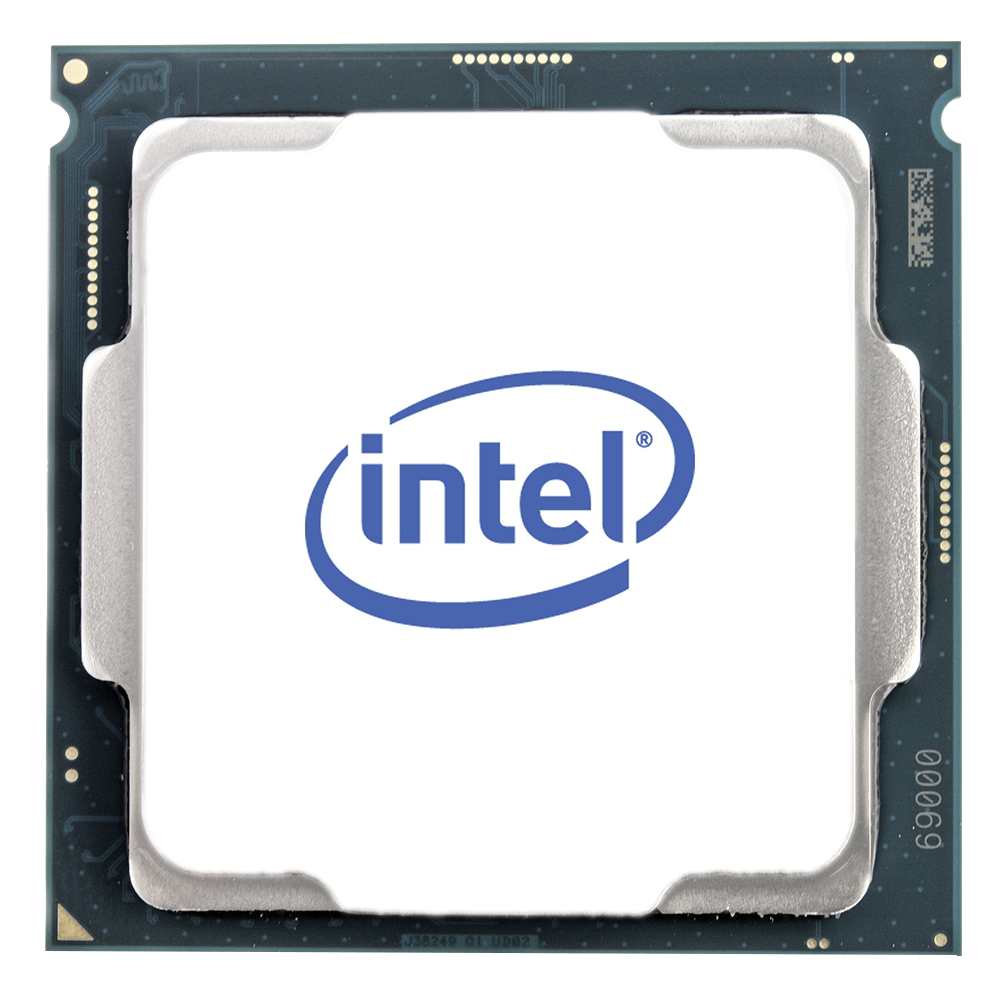

CPU
- Product Collection: 8th Generation Intel® Core™ i7 Processors
- Vertical Segment :Desktop
- Processor Number 7-8700
- Lithography: 14 nm
Specifications
- Total Cores :6
- Total Threads:12
- Max Turbo Frequency : 4.60 GHz
- Intel® Turbo Boost Technology 2.0 Frequency‡ :4.60 GHz
- Processor Base Frequency: 3.20 GHz
- Cache :12 MB Intel® Smart Cache
- Bus Speed: 8 GT/s
- TDP :65 W
- Supplemental Information
- Marketing Status :Launched
- Launch Date :Q4'17
- Embedded Options Available :Yes
- Use Conditions :PC/Client/Tablet
- Memory Specifications
- Max Memory Size (dependent on memory type) :128 GB
- Memory Types :DDR4-2666
- Max # of Memory Channels :2
- Max Memory Bandwidth :41.6 GB/s
- ECC Memory Supported ‡ :No
- GPU Specifications
- GPU Name‡ :Intel® UHD Graphics 630
- Graphics Base Frequency :350 MHz
- Graphics Max Dynamic Frequency :1.20 GHz
- Graphics Video Max Memory :64 GB
- 4K Support :Yes, at 60Hz
- Max Resolution (HDMI)‡ :4096 x 2304@24Hz
- Max Resolution (DP)‡ :4096 x 2304@60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡: 4096 x 2304@60Hz
- DirectX* Support :12
- OpenGL* Support: 4.5
- Intel® Quick Sync Video :Yes
- Intel® InTru™ 3D Technology :Yes
- Intel® Clear Video HD Technology: Yes
- Intel® Clear Video Technology :Yes
- # of Displays Supported ‡ 3
Expansion Options
- Scalability :1S Only
- PCI Express Revision: 3.0
- PCI Express Configurations ‡ :Up to 1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes: 16
Advanced Technologies
- Intel® Optane™ Memory Supported ‡Yes
- Intel® Turbo Boost Technology ‡ 2.0
- Intel® Hyper-Threading Technology ‡:yes
- Intel® Transactional Synchronization Extensions: Yes
- Intel® 64 ‡ Yes
- Instruction Set :64-bit
- Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States :Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes
- Intel® Identity Protection Technology ‡ yes
- warranty : 1 year
