Description

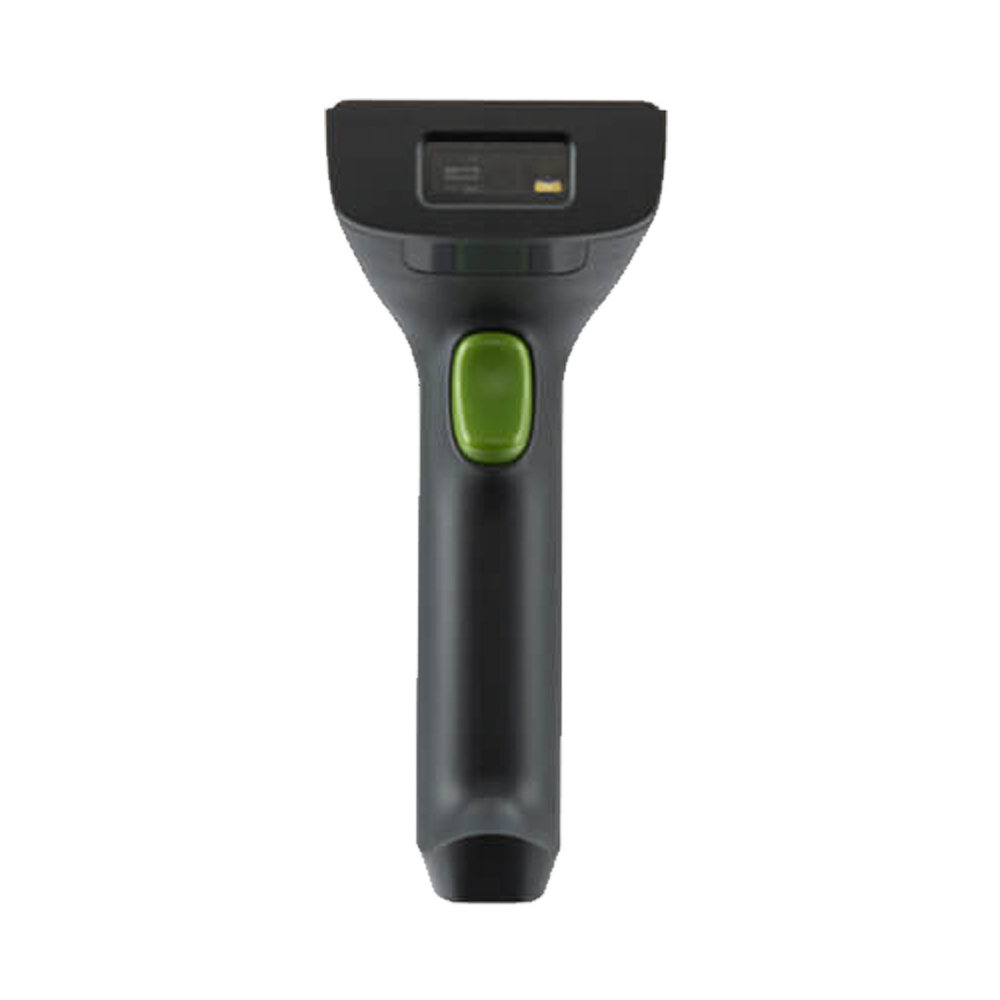

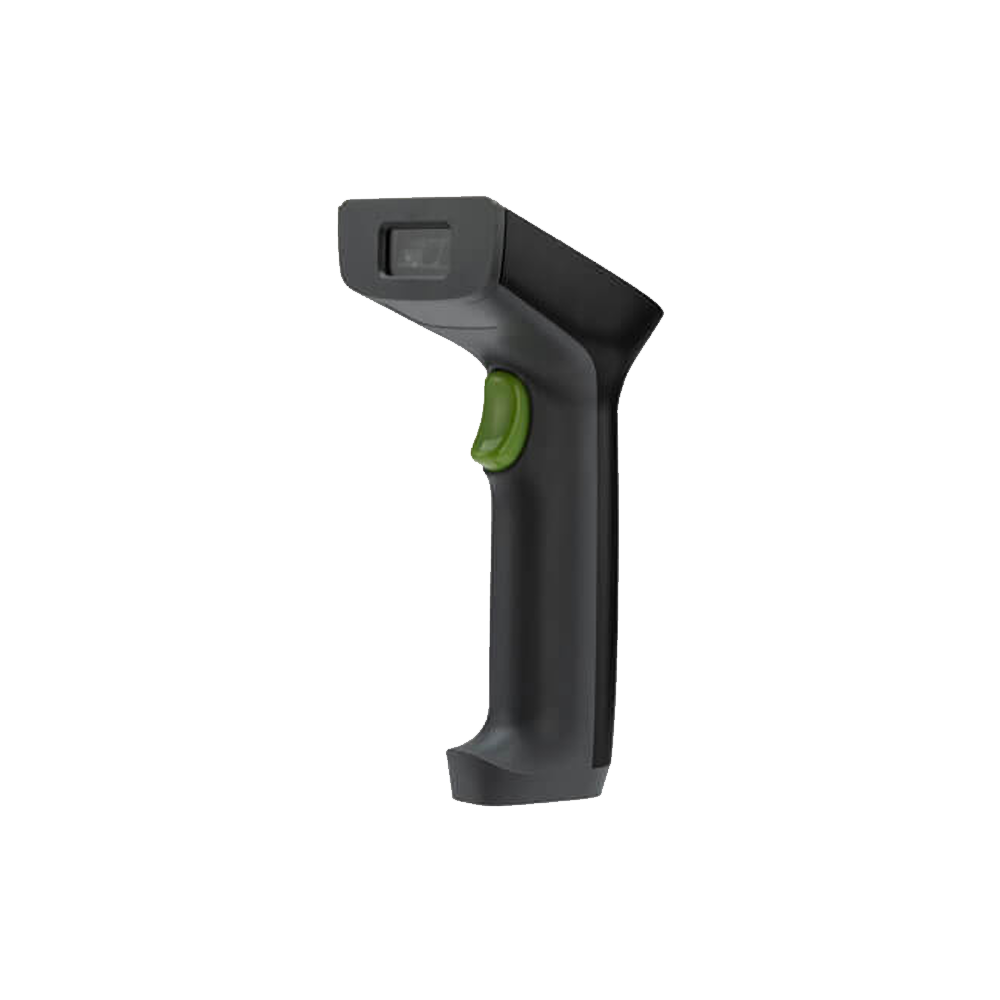

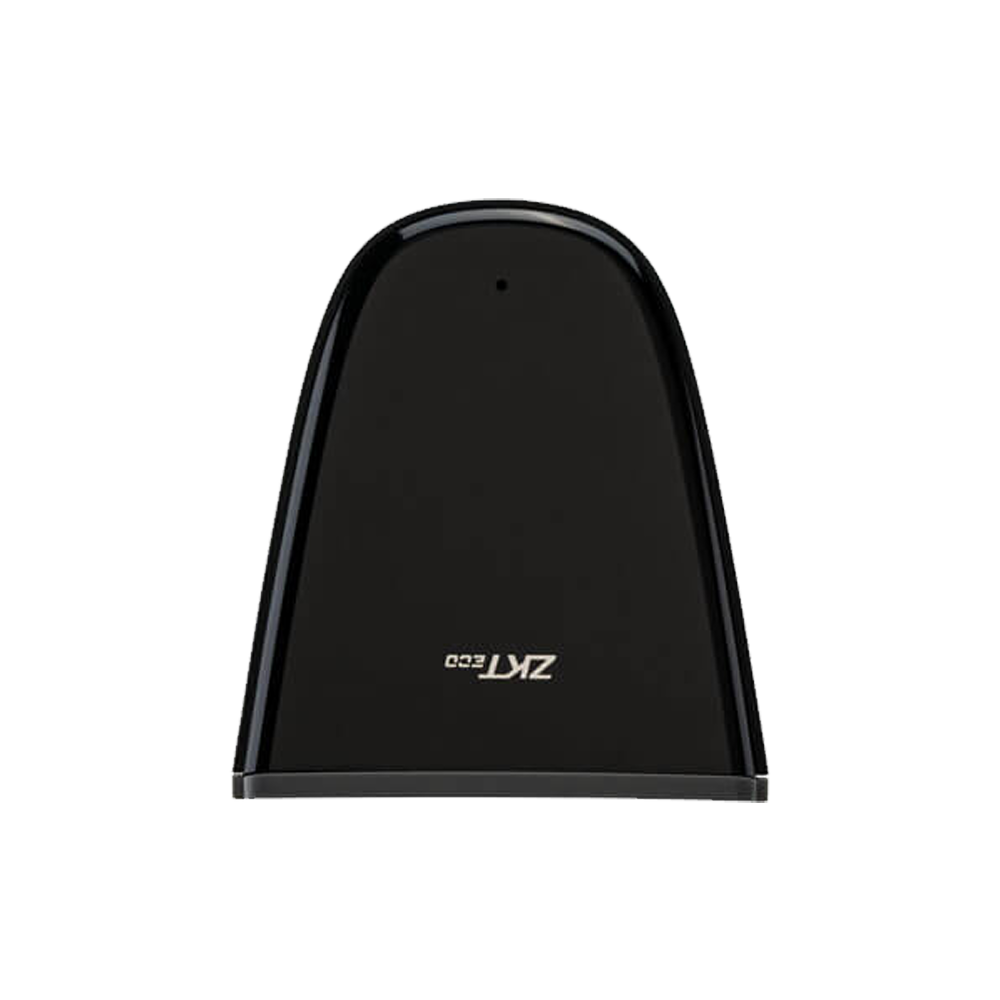

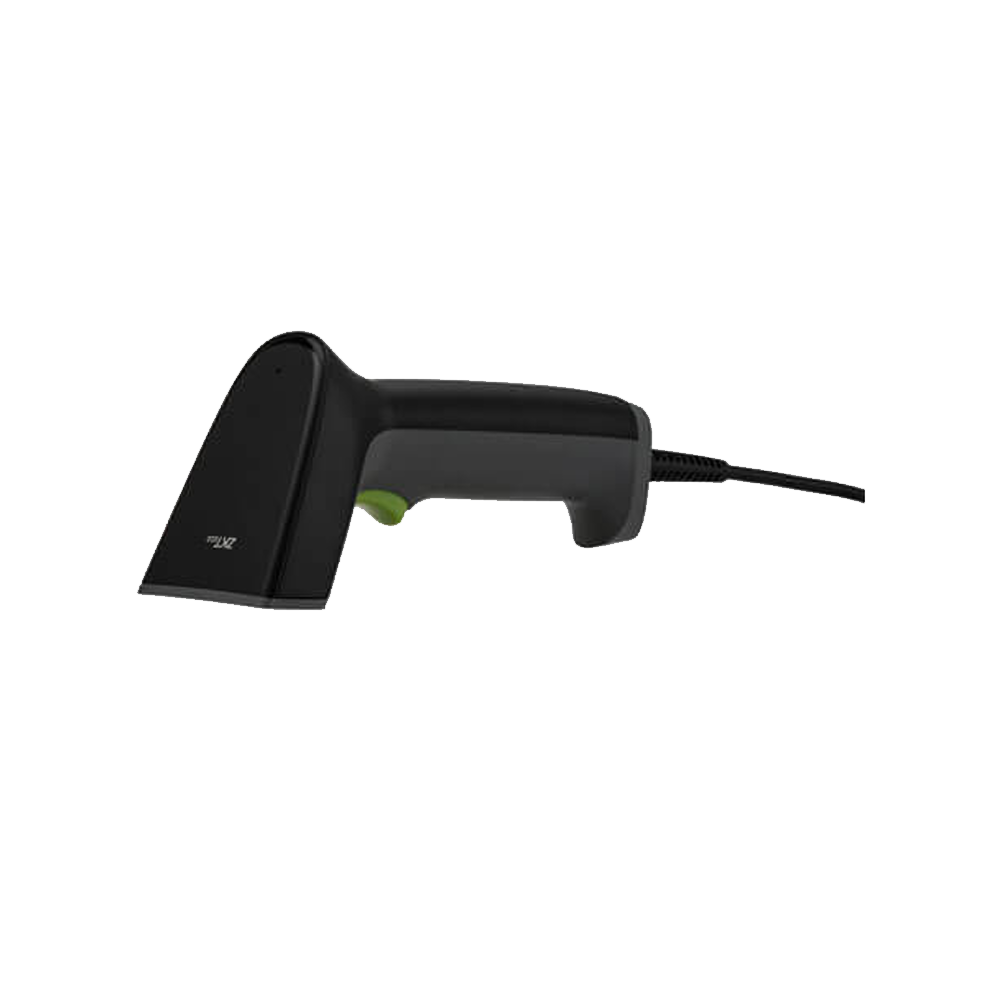

ZKB102S
- Quickly read all common 1D barcodes;
- Compatible with various LCD and OLED mobile phone screen codes and paper product codes;
- Accurate identification when multiple barcodes coexist;
- Plug and play, easy to set up;
- Ergonomic design, more convenient operation, more comfortable grip.
Specifications
- Scan Mode :Manual Reading Mode
- Light Source :620nm Red light
- Scan Speed :50ms/time
- Minimum Print Contrast :25%
- Roll Tolerance : ±30°
- Pitch Tolerance :±60°
- Skew Tolerance :±60°
- Decode Capability :1D : UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)
- Operating Temperature :-20°C to 50°C
- Storage Temperature :-40°C to 70°C
- Humidity :5% to 95% relative humidity, non-condensing
- Electrostatic Discharge (ESD) :±2KV Direct; ±8KV Air
- Ambient Light Immunity :10000 Lux Max
- Symbology / Resolution :Near / Far
- Code 39: 4 mil :3 cm to 10 cm
- Code 39: 5 mil :3 cm to 13 cm
- Code 39: 13 mil :4 cm to 30 cm
- Code 39: 20 mil :6 cm to 40 cm
- EAN-13: 13 mil :3 cm to 30 cm
- UPC-A: 13 mil :3 cm to 30 cm
- Dimensions (L*W*H) :167.3*70.5*81.5 (mm)
- Weight :120g
- Voltage & Current :5 VDC Operating: 120mA (Standby: 30mA)
- Support Host Interface : USB ( RS-232, optional)
- User Indicators : Decode LED Indicator; Beeper (adjustable tone and volume)
- warranty : 30 days
