Description

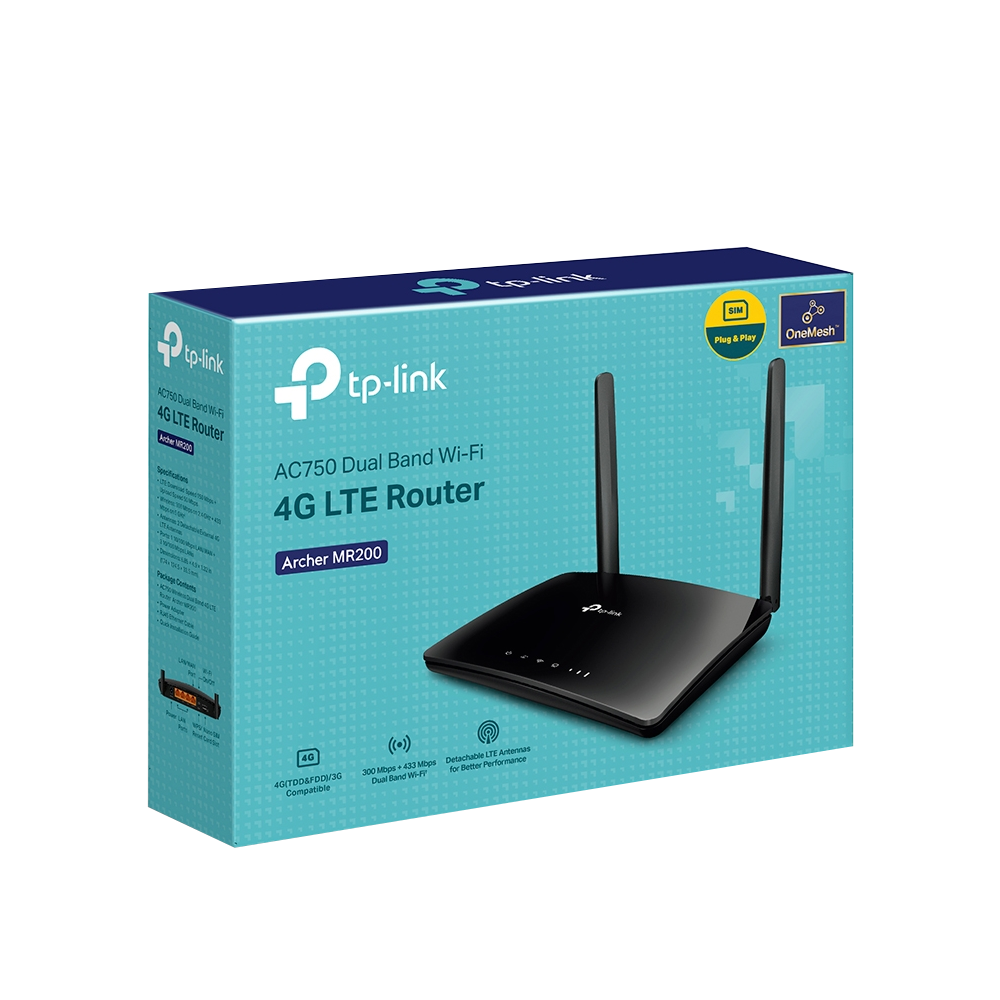

Archer MR200
AC750 Wireless Dual Band 4G LTE Router
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Specifications
HARDWARE

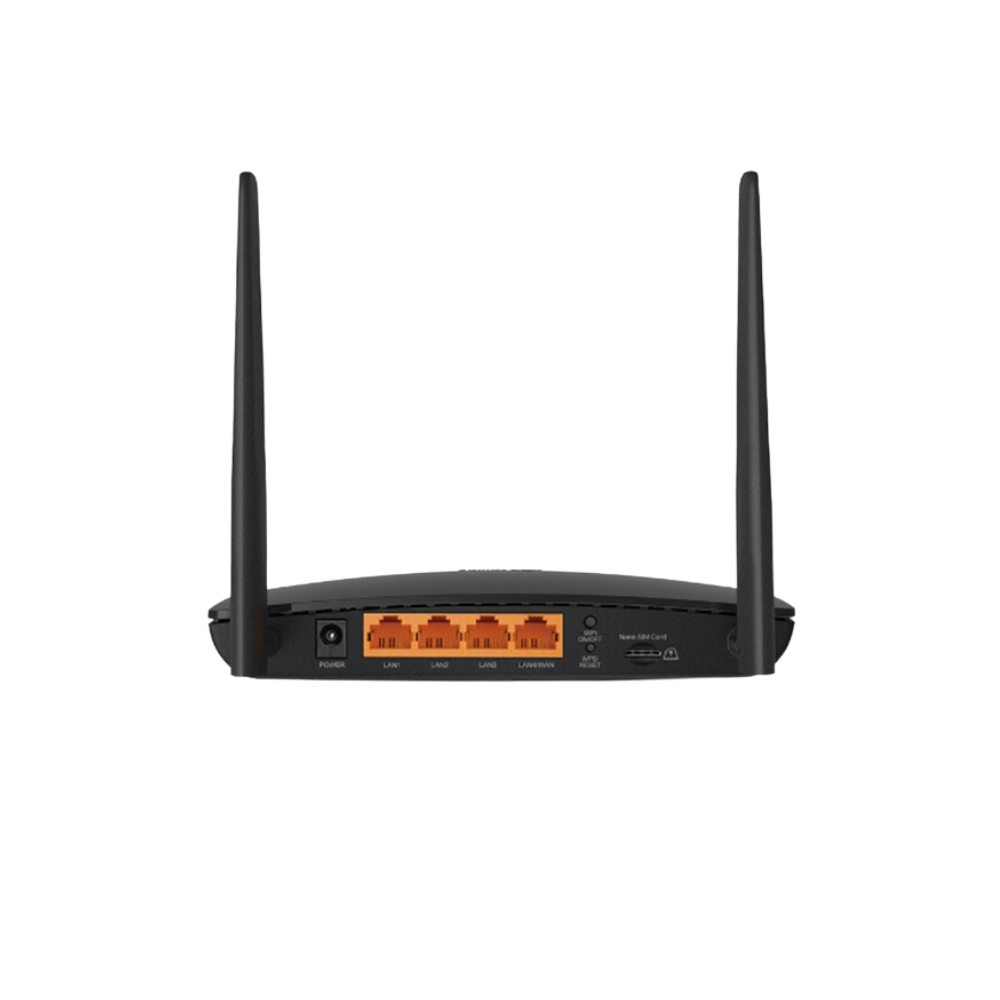

- Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port
- 1× Nano SIM Card Slot
- Button: WPS/RESET Button, Wi-Fi ON/OFF Button
- External Power Supply: 12V/1A
- Dimensions ( W x D x H ): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
- Antenna: 2 Detachable External 4G LTE Antennas
- WIRELESS FEATURES:
- Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
- Reception Sensitivity: 5 GHz: 11a 54M: -78 dBm
- 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
- 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
- 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
- 2.4 GHz: 11g 54M: -74 dBm
- 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
- 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
- Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM
- Wireless
- Statistics
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Network Type: 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
- TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
- 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
SOFTWARE
- Quality of Service: Prioritizes network traffic by device or application
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management: Access Control, Local Management, Remote Management, reboot schedule
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP, TP-Link DDNS
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
- VPN Server: PPTP VPN, OpenVPN
- Warranty: 1year
