Description
MW306R 300 Mbps Multi-Mode Wireless N Router
- 300Mbps Wireless Speed - Ideal for HD streaming, online gaming, and large file downloads
- Three 5dBi antennas greatly increase wireless signal strength, size and stability
- Easy Installation - Intuitive webpage guides you through the setup process in minutes

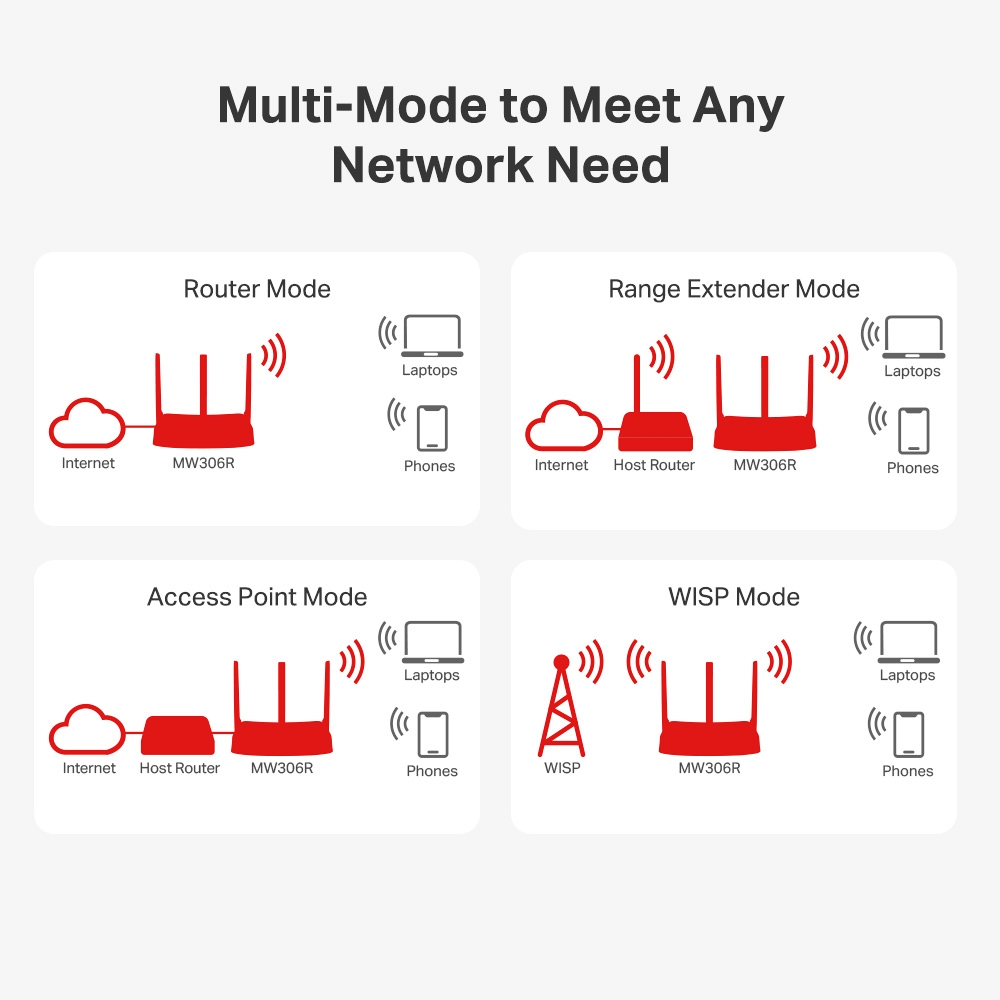

- Multi-Mode - Supports Router, Range Extender, Access Point and WISP modes
Features
- Parental Controls Establish appropriate policies to protect children with responsible, safe internet access
- QoS Prioritizes devices you select to perform better
- Guest Network Provides a separate network for guests to ensure your security and privacy
- IPTV Supported Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
- IPv6 Supported Allows you to enjoy IPv6 services provided by your ISP and visit IPv6 websites
- Ease of Use The simple three-step setup allows you to complete installation in minutes
Specifications
Physical Specifications

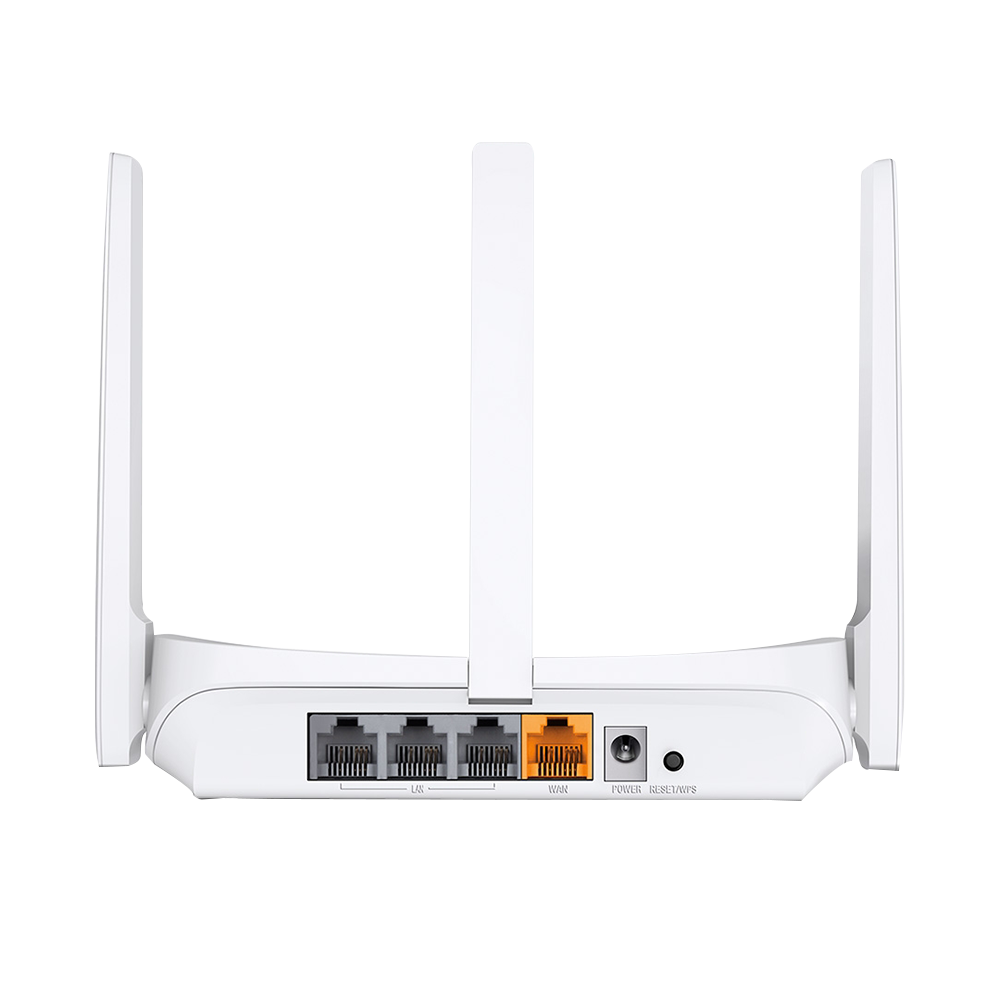

- Ethernet Ports
- 1*10/100Mbps WAN Port
- 3*10/100Mbps LAN Ports
- Button RESET/WPS Button
- Antennas
- 3 * Fixed Antennas
- External Power Supply
- 5V/0.6A
- Dimensions (W x D x H) 5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)
- Package Contents
- Wi-Fi N Router (MW306R)
- Power Adapter
- Quick Installation Guide
- Ethernet Cable
Wireless Specifications
- Wireless Standards IEEE 802.11 b/g/n
- Frequency 2.4-2.5 GHz
- Signal Rate
- 11n: Up to 300Mbps (Dynamic)
- 11g: Up to 54Mbps (Dynamic)
- 11b: Up to 11Mbps (Dynamic)
- EIRP <20dBm (EIRP)
- Reception Sensitivity
- 270M: -70dBm@10% PER
- 11M: -87dBm@10% PER
- 130M: -72dBm@10% PER
- 6 M: -92dBm@10% PER
- 54M: -74dBm@10% PER
- 1 M: -94dBm@10% PER
- Wireless Function Enable/Disable Wireless Radio, WDS Bridging
- Wireless Security WPA-PSK/WPA2-PSK
Operation Specifications
- WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- DHCP DHCP Server, DHCP Client List
- Port Forwarding Virtual Server, UPnP, DMZ
- Management Access Control Local Management Remote Management
- Firewall Security IP and MAC Address Binding
- Guest Network 2.4GHz Guest Network
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Operating Humidity: 10%~90% Non-Condensing
- Warranty: 1year
