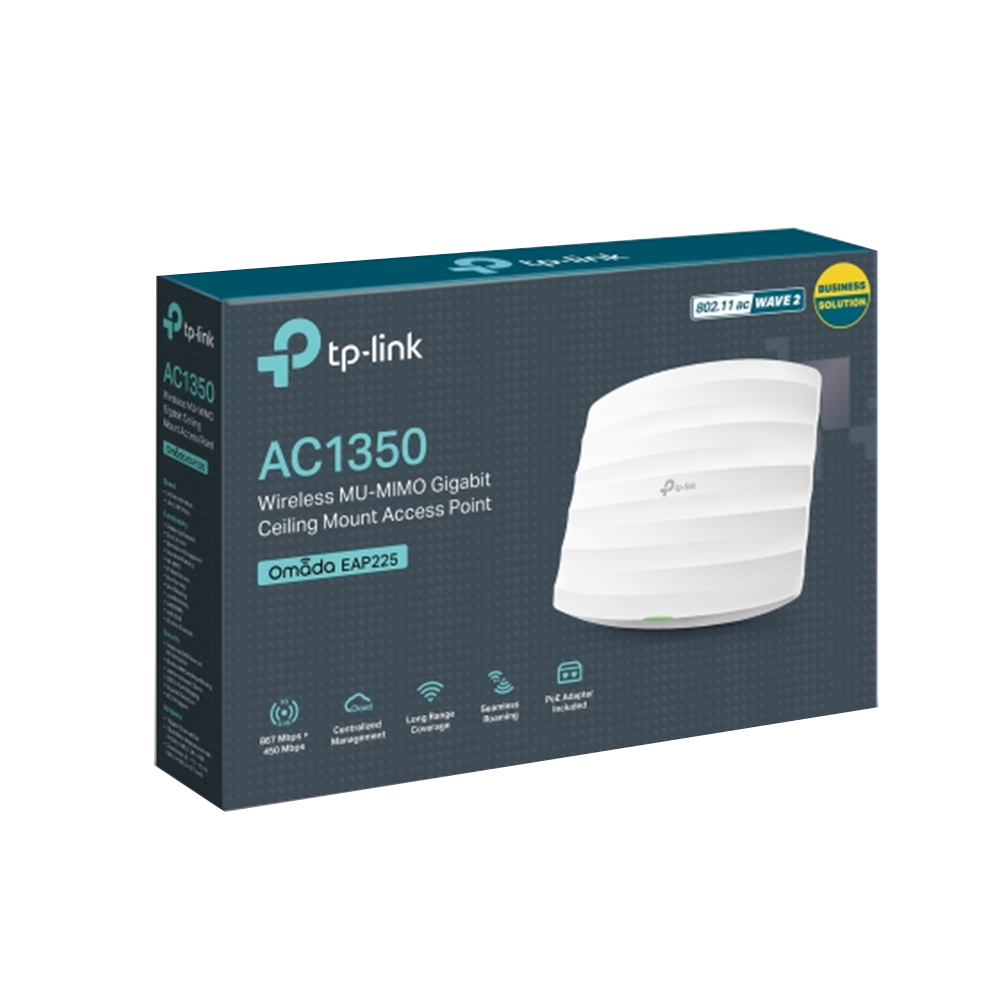

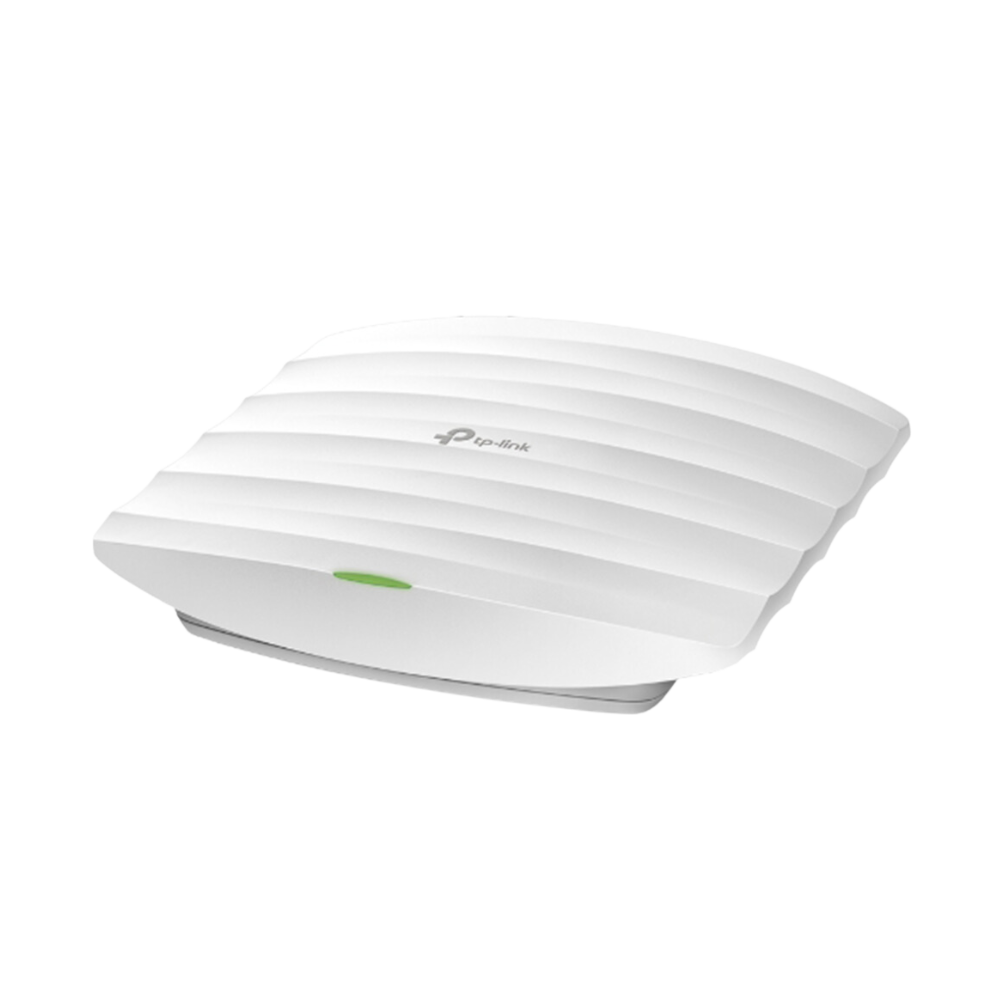

Access Point TP-Link EAP225 Ceiling Mount AC1350 (1 Port - PoE Adaptor)

EAP225

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

• Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz^△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.^†
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)^△ for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Specifications:

HARDWARE FEATURES:

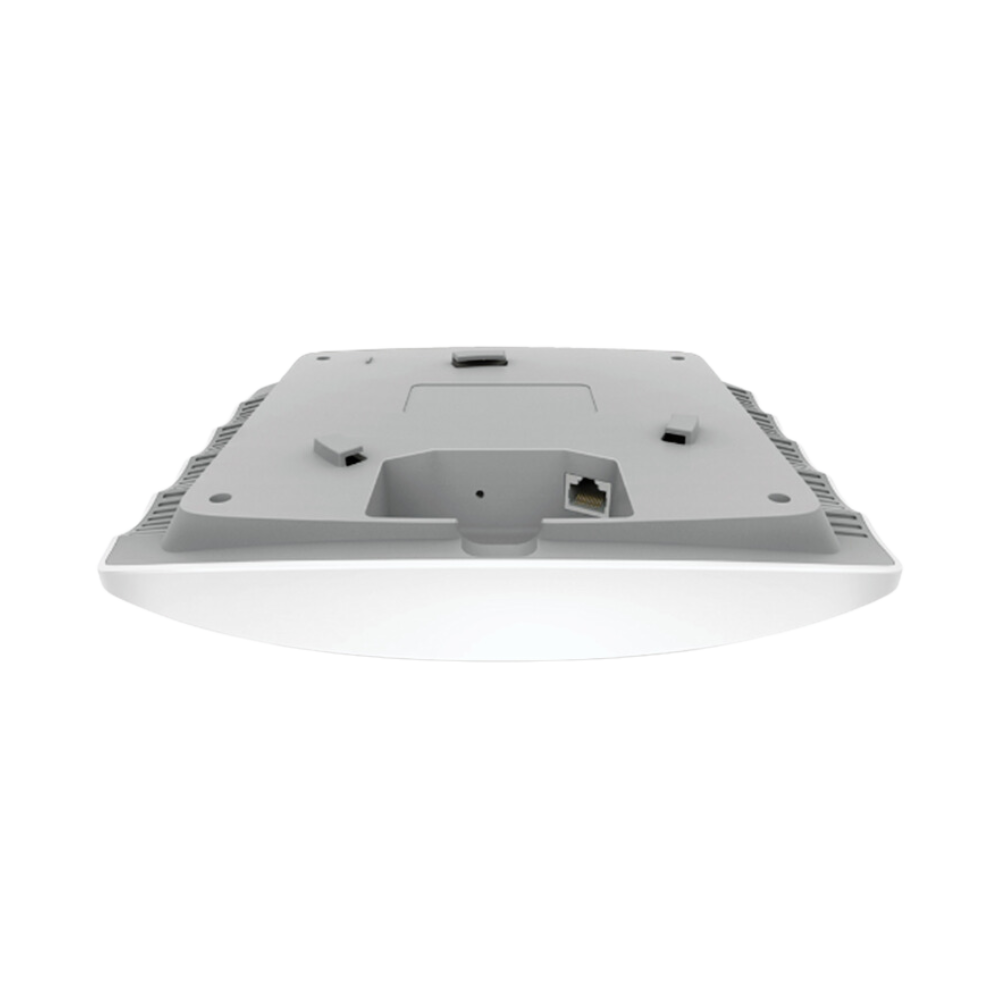

• Interface: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)

• Physical Security Lock: Yes
• Button: Reset
• Power Supply:• 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption:  EU: 10.5 W  US: 12.6 W
• Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
• Antenna Type:
• 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
• Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES:

• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate:
• 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
• Wireless Functions:
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security:
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Transmission Power: CE: ≤20 dBm(2.4 GHz, EIRP)
• ≤23 dBm(5 GHz, EIRP)
• FCC: ≤24 dBm(2.4 GHz)
• ≤22 dBm(5 GHz)

MANAGEMENT:

• Omada App Yes
• Centralized Management : Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts Yes
• LED ON/OFF Control Yes
• Management MAC Access Control Yes
• SNMP v1,v2c
• System Logging Local/Remote Syslog Local/Remote Syslog
• SSH Yes
• Web-based Management HTTP/HTTPS
• L3 Management Yes
• Multi-site Management Yes
• Management VLAN Yes
• Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
• Warranty: 1year
