Description

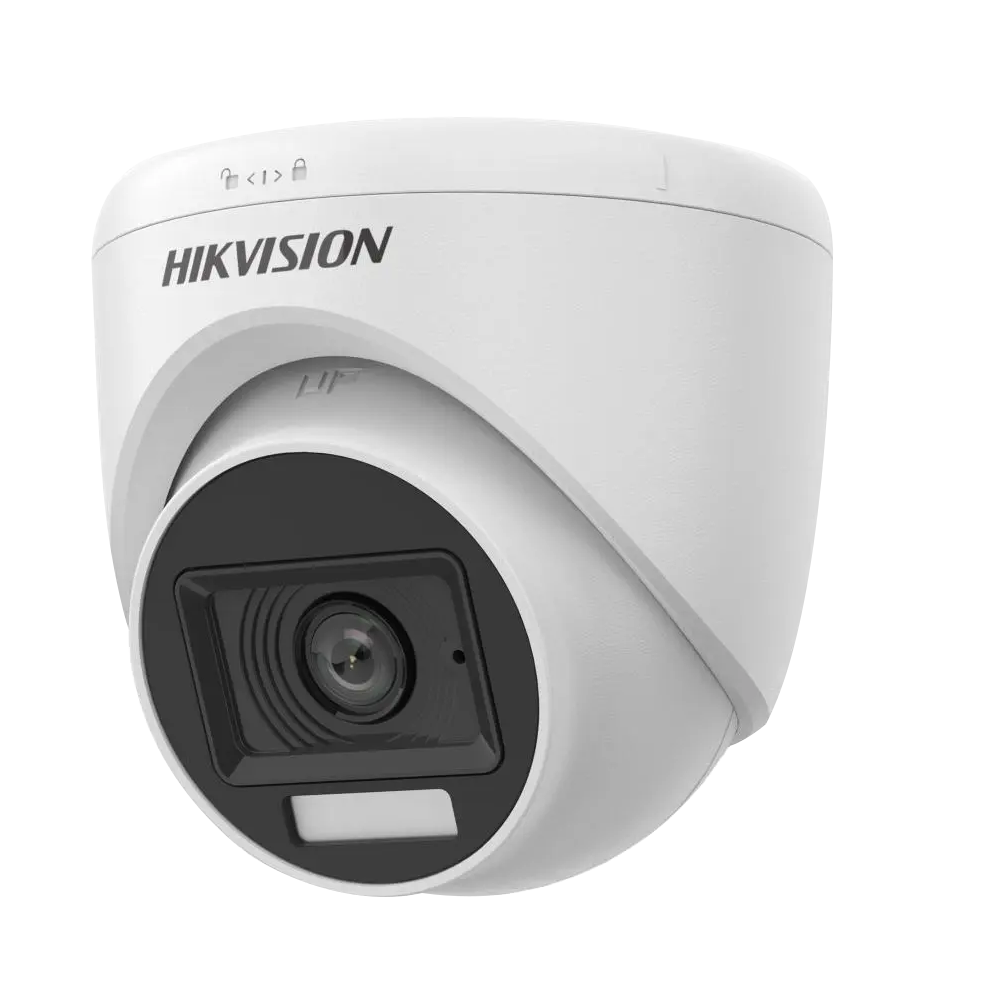

SECURITY CAM AHD 2M HIKVISION DS-2CE76D0T-LPFS 2.8MM INDOOR + MIC
- High quality imaging with 2 MP, 1920×1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
Specifications:
Camera:
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal System PAL/NTSC
Lens:
- Lens Type 2.8 mm, 3.6 mm fixed focal lens
-
Focal Length & FOV:
-
2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
-
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
- Lens Mount M12
Illuminator:
- Supplement Light Type White Light: IR
-
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m
Image:
- Image Settings Brightness, Sharpness, Smart IR
- Frame Rate:
- TVI: 1080P @ 30 fps, 1080P @ 25 fps
-
AHD: 1080P @ 30 fps, 1080P @ 25 fps
-
CVI: 1080P @ 30 fps, 1080P @ 25 fps
-
CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range: (WDR)Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
Interface:
- Video Output Switchable: TVI/AHD/CVI/CVBS
General:
- Material Plastic
- Dimension84.6 mm × Ø85.02 mm (3.33" × Ø3.35")
- Weight Approx. 156 g (0.34 lb.)
- Operating Condition
- -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language :English
- Power Supply 12 VDC ± 25%
- Consumption Max. 3.3 W
- warranty: 1year
