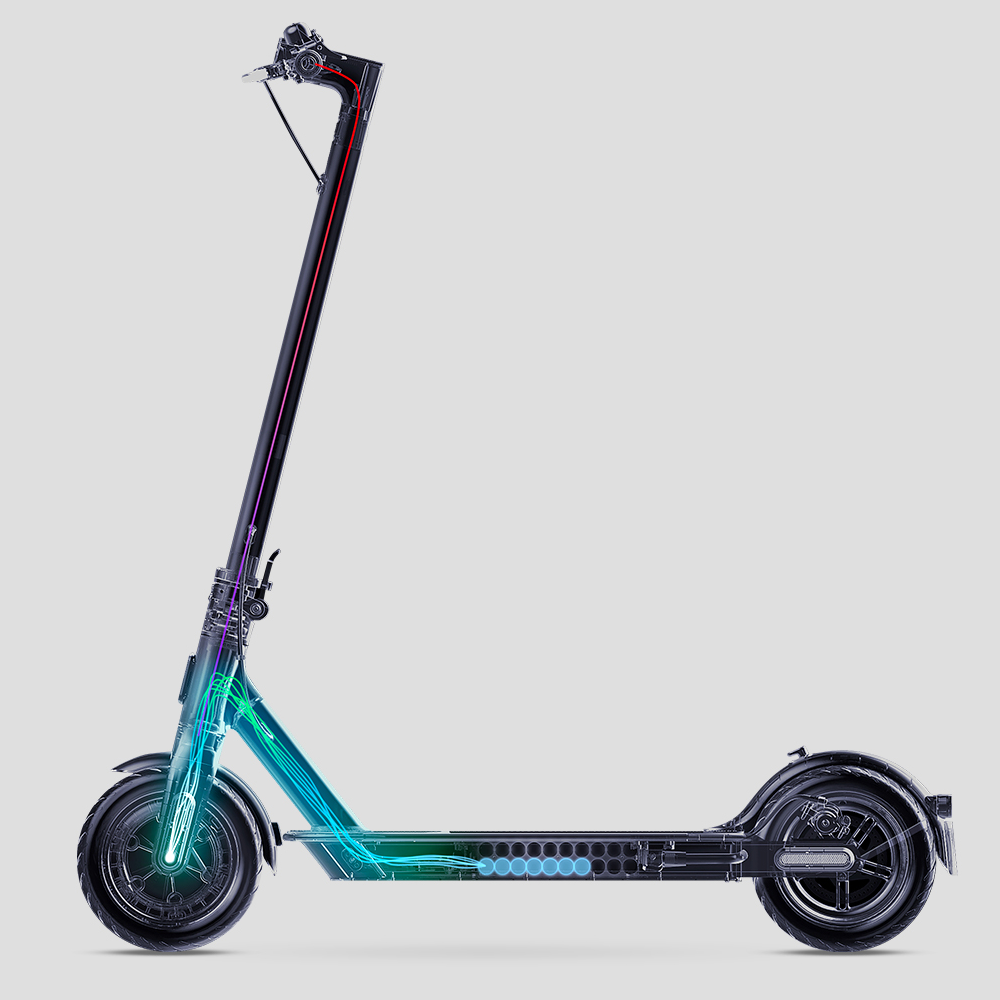

Description
features
- 12kg Weight
- 20km Range
- 20km/h Max. speed
- 3 seconds Fast folding
- 8.5‘’ Pneumatic tires
- Multifunctional dashboard
- Aerospace grade aluminum body
- E-ABS + disc brake
specifications
- Design
- Dimensions (unfolded): 1140*1080 mm
- Dimensions (folded): 490*1080*430 mm
- Weight: 12Kg
- Max. speed:
- 20km/h (Max speed for each mode: Pedestrian mode: 5km/h; D: 15km/h; S: 20km/h)
- General range: 20km
- Max. climbing angle: 10%
- Braking: E-ABS and disc brake
- Rated power: 250W
- Max. power: 500W
- Tires: 8.5" front and rear pneumatic tires
- Controller undervoltage protection: 29V ± 0.5V
- Controller current limit: 17A±0.5A
- Motor type Brushless low speed DC motor
- Max.load: 100kg
- Rider height: 120cm-200cm
- Rider age: 16-50
- Working temperature: -10°C to 40°C
- Storage temperature: -20°C to 45°C
- IP-rating: IP54
- Charging time: 3.5 hours
- Battery
- Adapter specs
- Input voltage: 100-240VAC 50/60Hz
- Input current: 2A MAX
- Output voltage: 42VDC
- Output current: 1.7A
- Output power: 71W
- DC cable length: 2m
- DC cable port type: Custom Φ8.0*1.6mm
- Battery specs
- Battery type: Lithium ion battery
- Battery model: NE1002-H
- Maximum charging voltage: 42VDC
- Rated voltage: 36VDC
- Rated capacity: 5100mAh /183Wh
- Charging temperature range: 0°C — 40°C
- Discharge temperature range: -20°C — 50°C
- Storage time: Approx. 13 months
- Battery weight: 1.1kg
- Cyclical lifetime: 500 charging cycles with power maintained above 70%
- warranty :3 months
