Description
Archer C64
AC1200 Wireless MU-MIMO WiFi Router
- 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band†
- Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage
- MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡
- Beamforming – Beamforming technology delivers a highly efficient wireless connection
- AP Mode – Supports Access Point mode to create a new WiFi access point
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
- Easy Setup – Easy network management at your fingertips with TP-Link Tether
Specifications
WIRELESS:
- Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC1200: 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 400 Mbps (802.11n)
- WiFi Range: 3 Bedroom Houses: (4× Fixed High-Performance Antennas):
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- (Beamforming): Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity: Medium :Dual-Band: Allocate devices to different bands for optimal performance
- MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
- Airtime Fairness: Improves network efficiency by limiting excessive occupation
- Working Modes:
- Router Mode
- Access Point Mode
HARDWARE:
- Processor: 1.2 GHz CPU

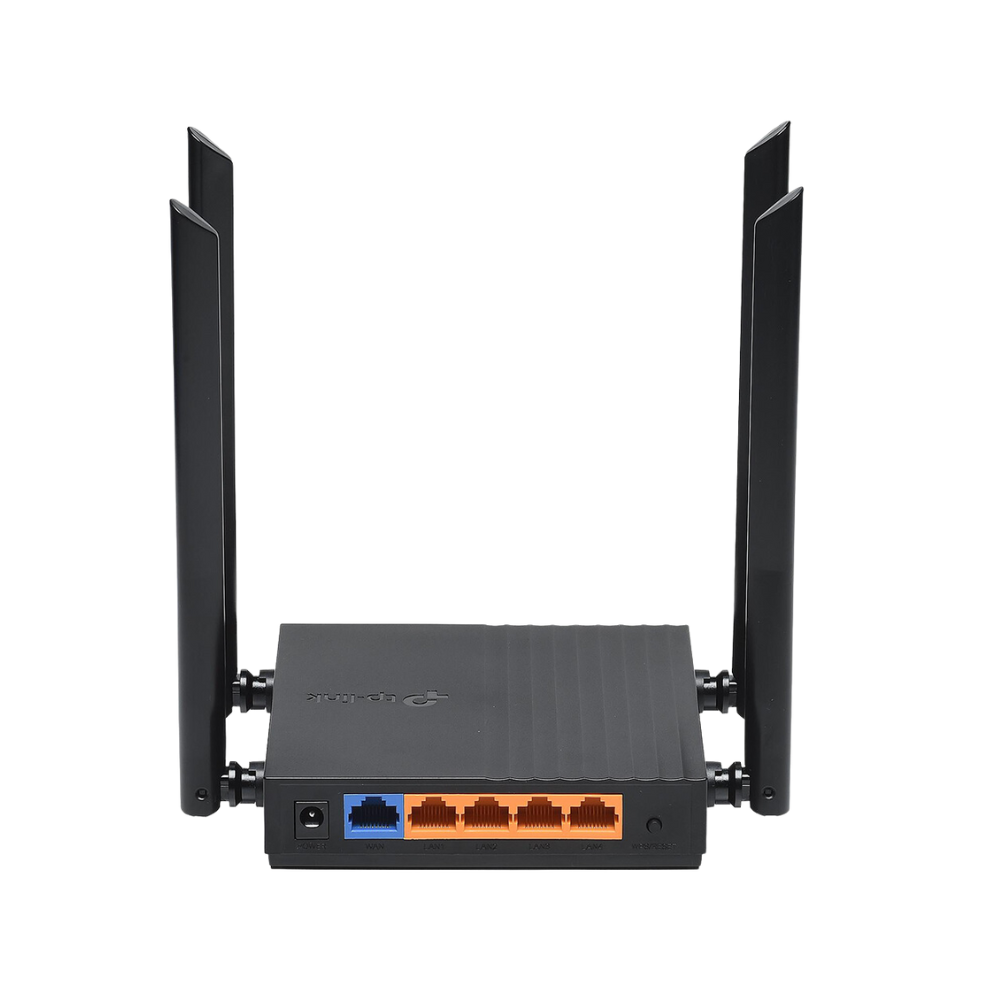

- Ethernet Ports: 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
- Buttons: WPS/Reset Button
- Power: 12V = 1A
SECURITY:
- WiFi Encryption:
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
- Network Security:
- SPI Firewall
- Access Control
- IP and MAC Binding
- Guest Network:
- 1× 2.4 GHz Guest Network
- 1× 5 GHz Guest Network
SOFTWARE:
- Protocols:
- IPv4
- IPv6
- Parental Controls:
- URL Filtering
- Time Controls
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE(Dual Access)
- PPTP(Dual Access)
- L2TP(Dual Access)
- Quality of Service: QoS by Device
- Cloud Service:
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding:
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
- IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP:
- Server
- DHCP Client List
- Address Reservation
- DDNS:
- TP-Link
- NO-IP
- DynDNS
- Management:
- Tether App
- Webpage
TEST DATA:
- WiFi Transmission Power: CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
- FCC: <30dBm(2.4 GHz & 5 GHz)
- WiFi Reception Sensitivity: 5 GHz: 11a 6Mbps:-95dBm
- 11a 54Mbps:-77dBm
- 11ac VHT20 MCS8:-71dBm
- 11ac VHT40 MCS9:-67dBm
- 11ac VHT80 MCS9:-63dBm
- 2.4 GHz: 11g 6Mbps: -96dBm
- 11g 54Mbps: -78dBm
- 11n HT20 MCS7:-77dBm
- 11n HT40 MCS7:-74dBm
- 11ac VHT20 MCS8:-73dBm
- 11ac VHT40 MCS9:-68dBm
PHYSICAL:
- Dimensions (W×D×H): 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)
- Warranty: 1year
