Description

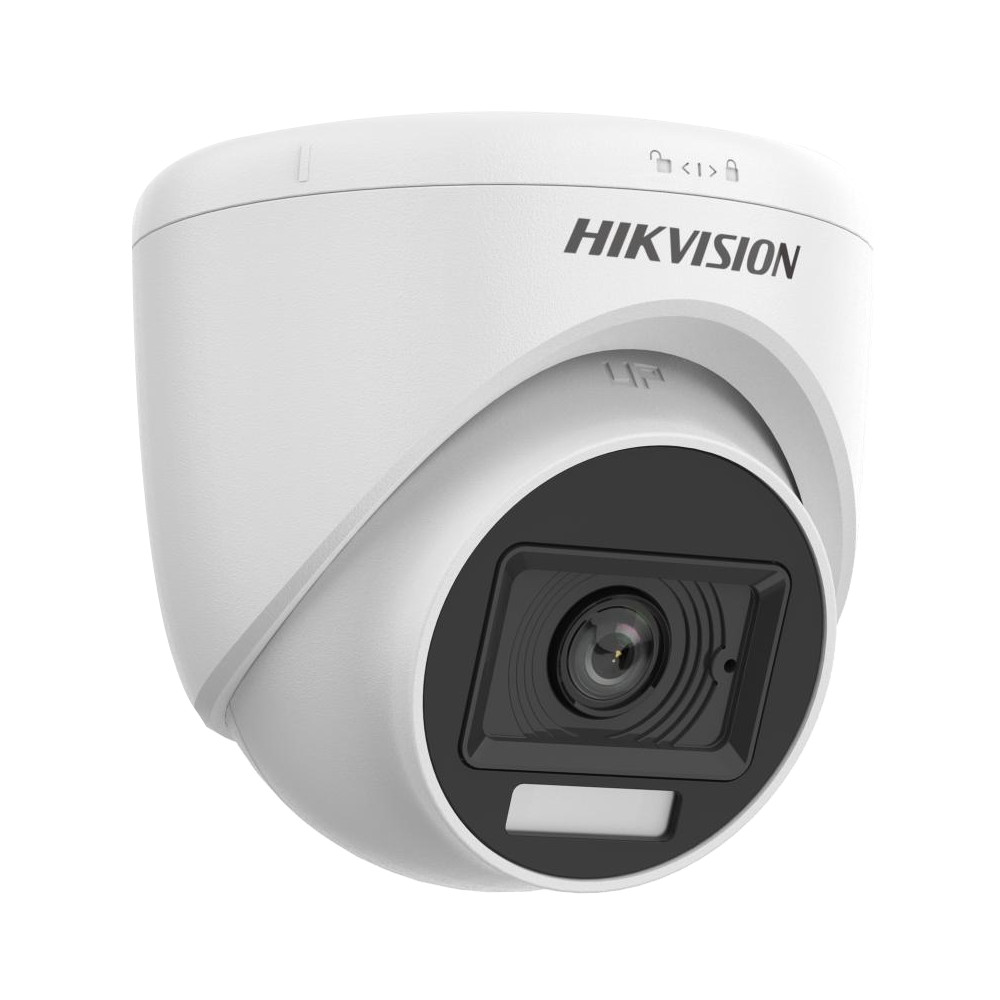

3K Smart Hybrid Light Audio Indoor Fixed Turret Camera
Specification
Camera
- Image Sensor :3K CMOS
- Max. Resolution :2960 (H) × 1665 (V)
- Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal System :PAL/NTSC
Lens
- Lens Type :2.8 mm
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
- Lens Mount :M12
Illuminator
- Supplement Light Type White Light; IR
- Supplement Light Range
- IR : Up to 20 m
- White Light : Up to 20 m
- Image Settings :Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
- AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
- CVI: 4 MP@25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- White Balance Auto/Manual
- AGC Yes
Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Built-In MicrophoneYes
General
- Dimension: 84.6 mm × Ø85.02 mm (3.33" × Ø3.35")
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
-
Power Supply :12 VDC ± 25%
ConsumptionMax: 2.9 W - warranty : 1 year
