Description
DS-2CE16D0T-LPFS

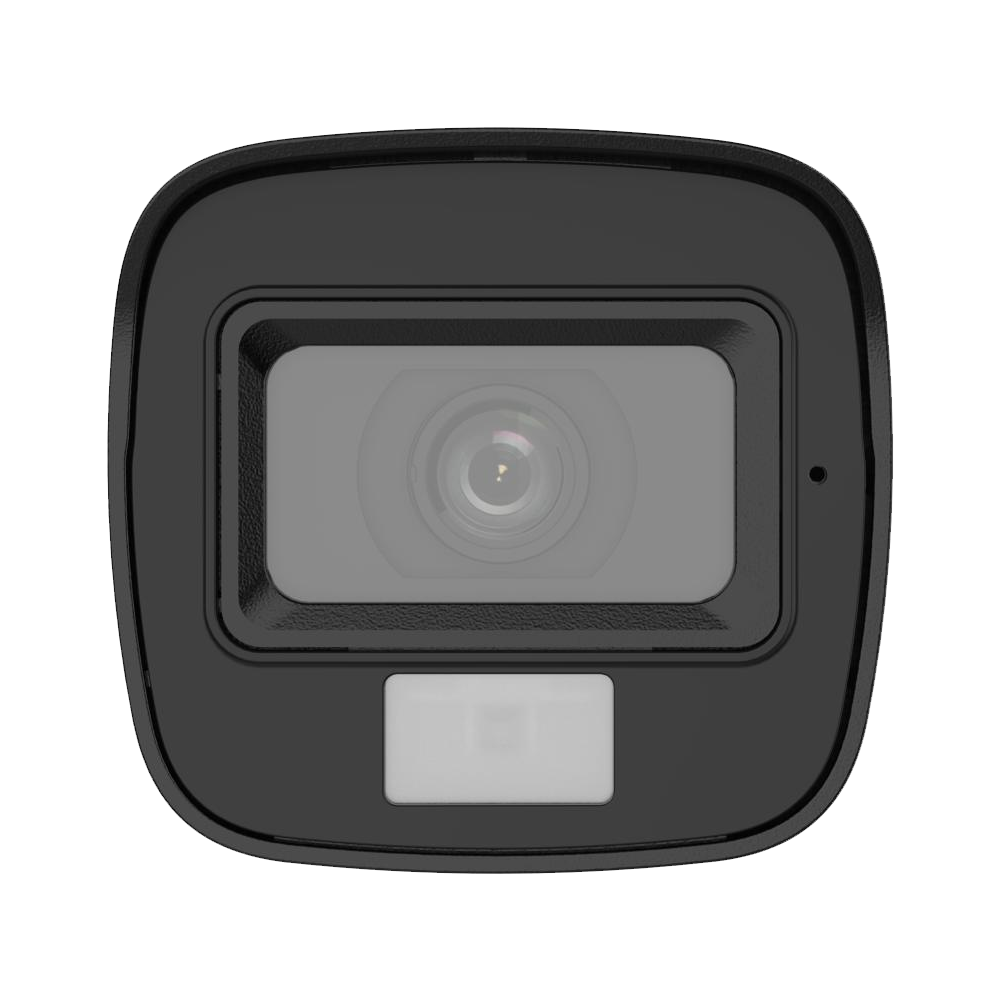

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920×1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Specification
- Camera
- Image Sensor :2 MP CMOS
- Max. Resolution :1920 (H) × 1080 (V)
- Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day ＆ Night ICR - Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal System PAL/NTSC
- Lens
-
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Focal Length ＆ FOV:
2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Lens Mount :M12 - Illuminator
- Supplement Light Type White Light,IR
-
Supplement Light Range
IR : Up to 25 m
White Light : Up to 20 m -
Image Settings Brightness, Sharpness, Smart IR -
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC - Day/Night Mode Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- White Balance Auto/Manual
- AGC Yes
- Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Built-in Microphone Yes
- General
- Material Plastic
- Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
- Weight Approx. 155 g (0.34 lb.)
- Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
-
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one
camera. - Consumption Max. 3.3 W
- Approval
- Protection IP67
- warranty : 1 year
