Description

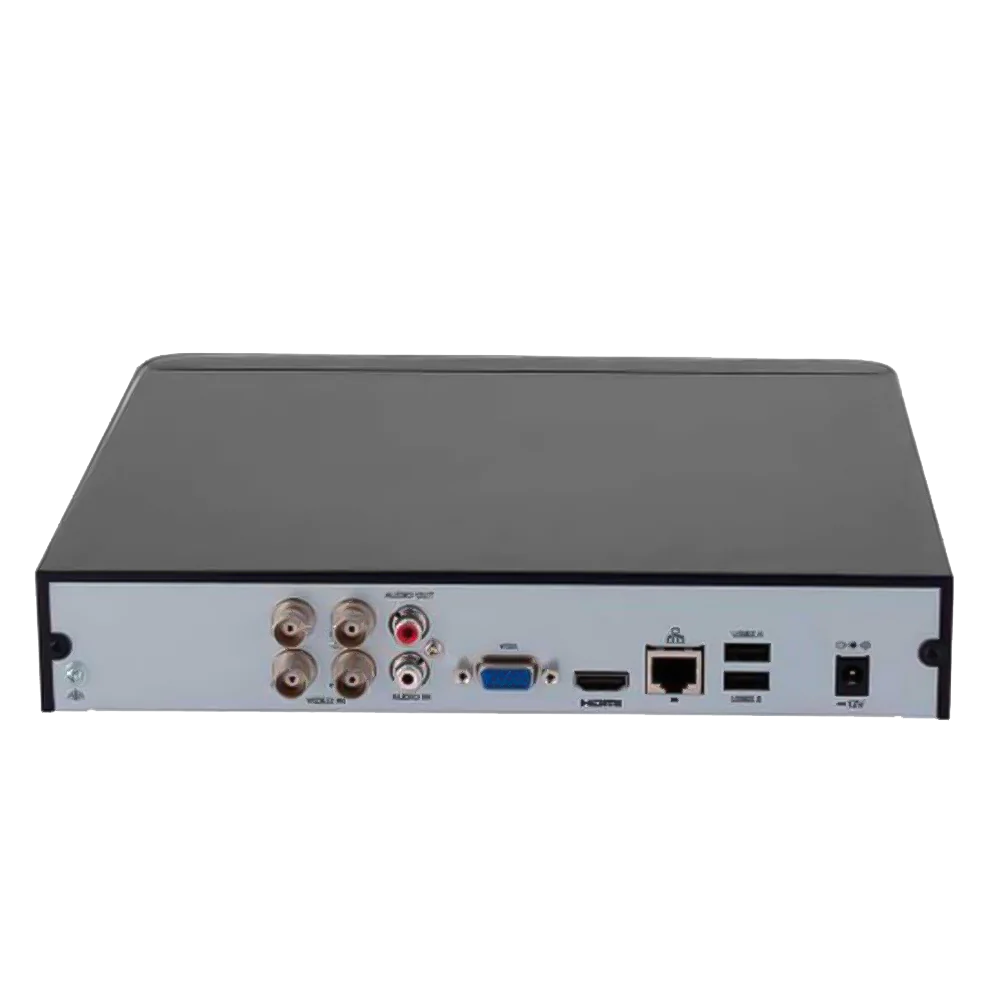

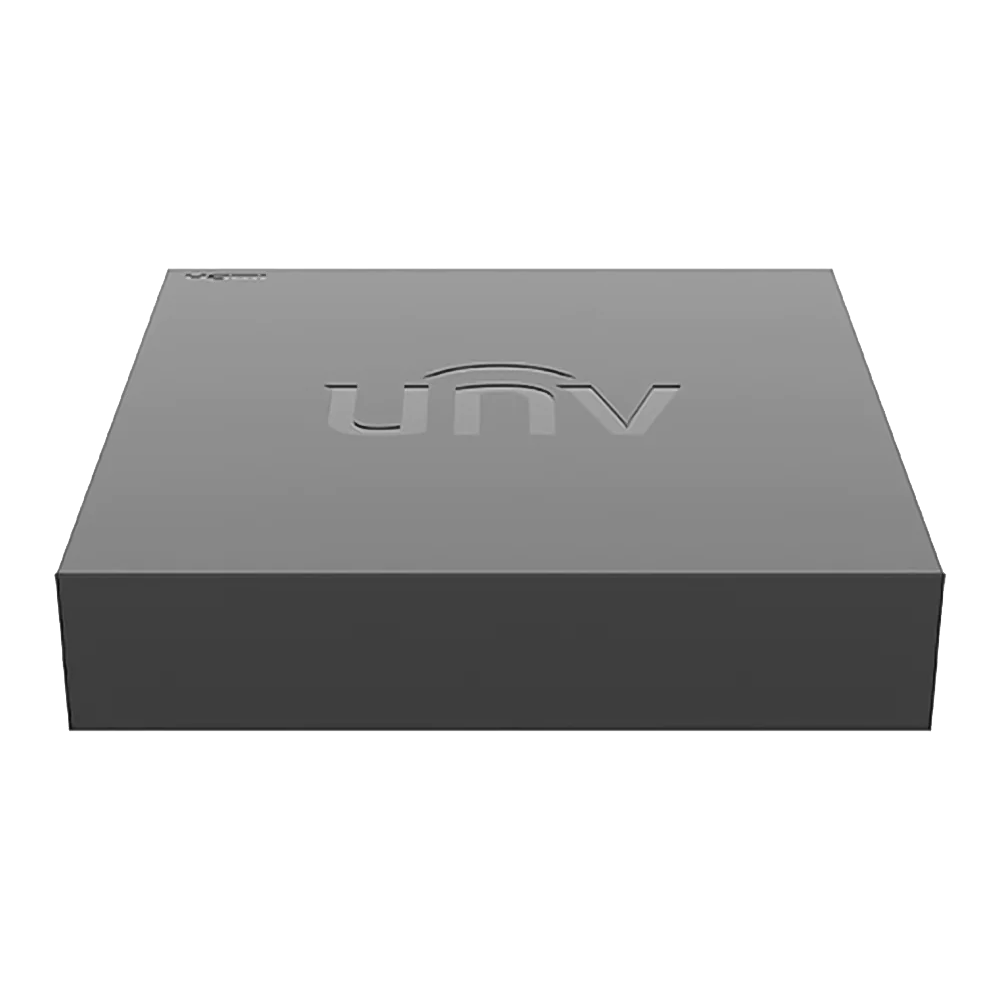

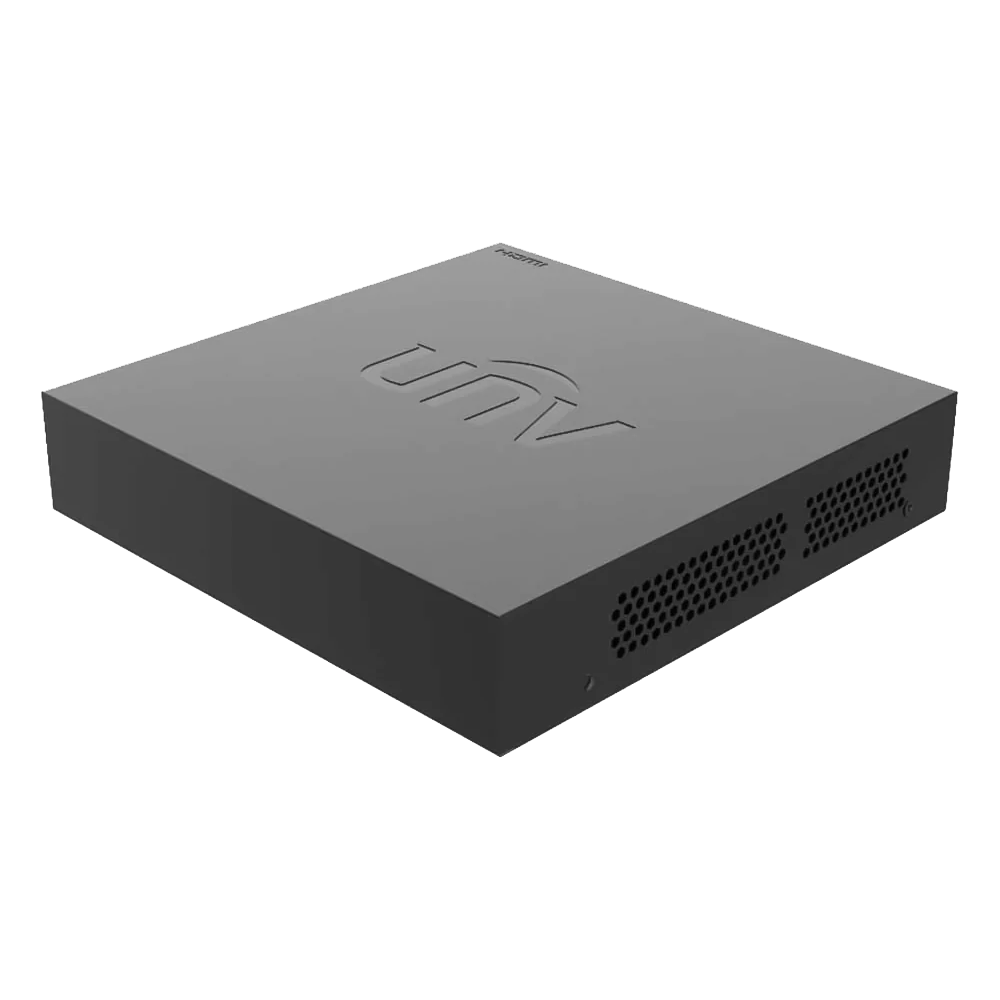

XVR Uniview 4 Channel XVR301-04F AHD
specifications
Video/audio- Video input: 4 channels, BNC
- Live video: 1080p
- Video recording: 720p
- IP Video Input: 2 channels (IP up to 6 channels only), each channel up to 6MP
- Frame rate: Main stream: 1080p lite at 25fps, 720p at 30fps - Sub stream: D1 at 25fps, D1 at 30fps
- VGA/HDMI output: Up to 1920 x 1080p/60Hz, 1920 x 1080p/50Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
- Decoding Capacity: Analog: 4 x 1080p Lite at 25 - 4 x 720p at 30 - IP: 1 x 6MP at 20 - 2 x 1080p at 30
- Hard disk type: 1 x SATA
- Storage capacity: up to 6 TB per hard disk
- Network Interface: RJ45 10M/100M port Self-adaptive Ethernet interface
- USB interface : Rear panel: 2 x USB2.0
- network
- Incoming bandwidth: 24Mbps (up to 32Mbps after all analog channel conversion)
- Outgoing bandwidth: 48 Mbps
- Remote users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- General alarm: motion detection
- Operating condition: -10°C ~ +55°C (+14°F ~ +131°F) / Humidity: ≤ 90% RH (non-condensing)
- Power supply: 12V DC
- Power consumption: ≤10W (without HDD)
- Dimensions: 190 x 202 x 42 mm
- Warranty: 30 days
