Description

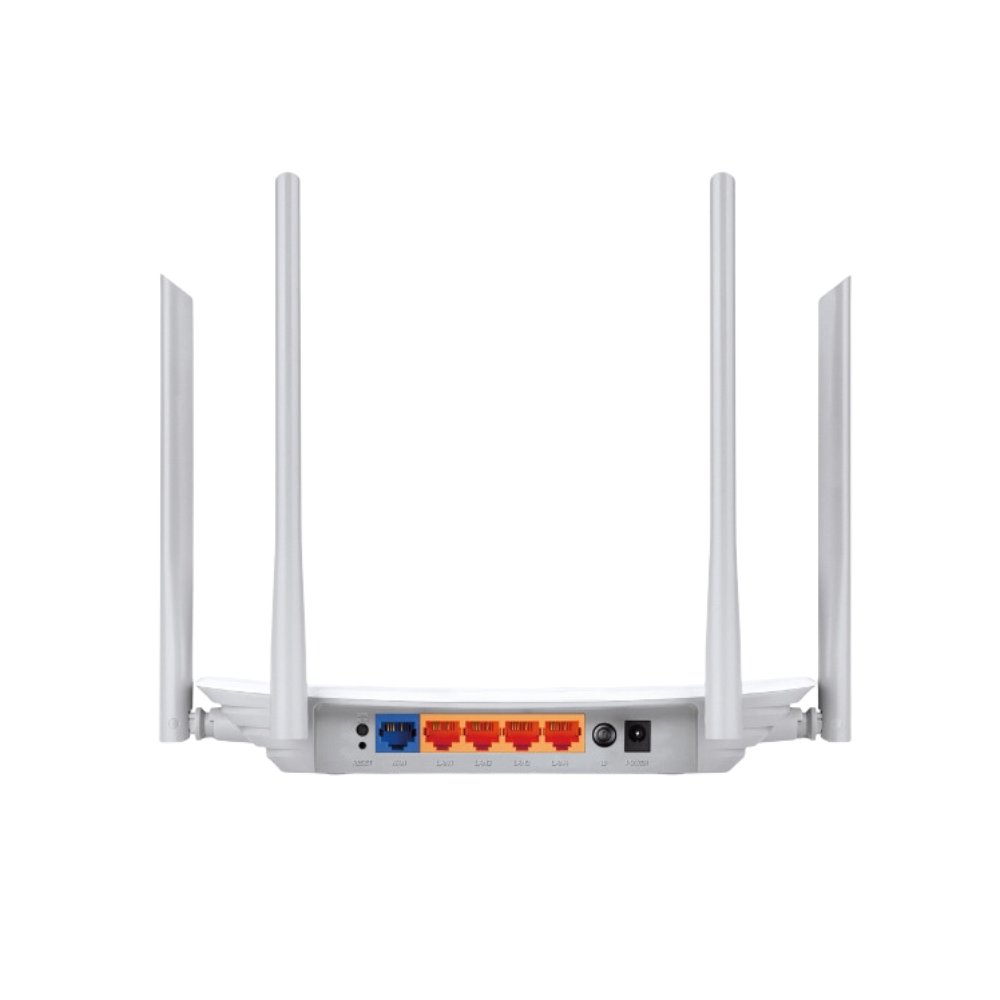

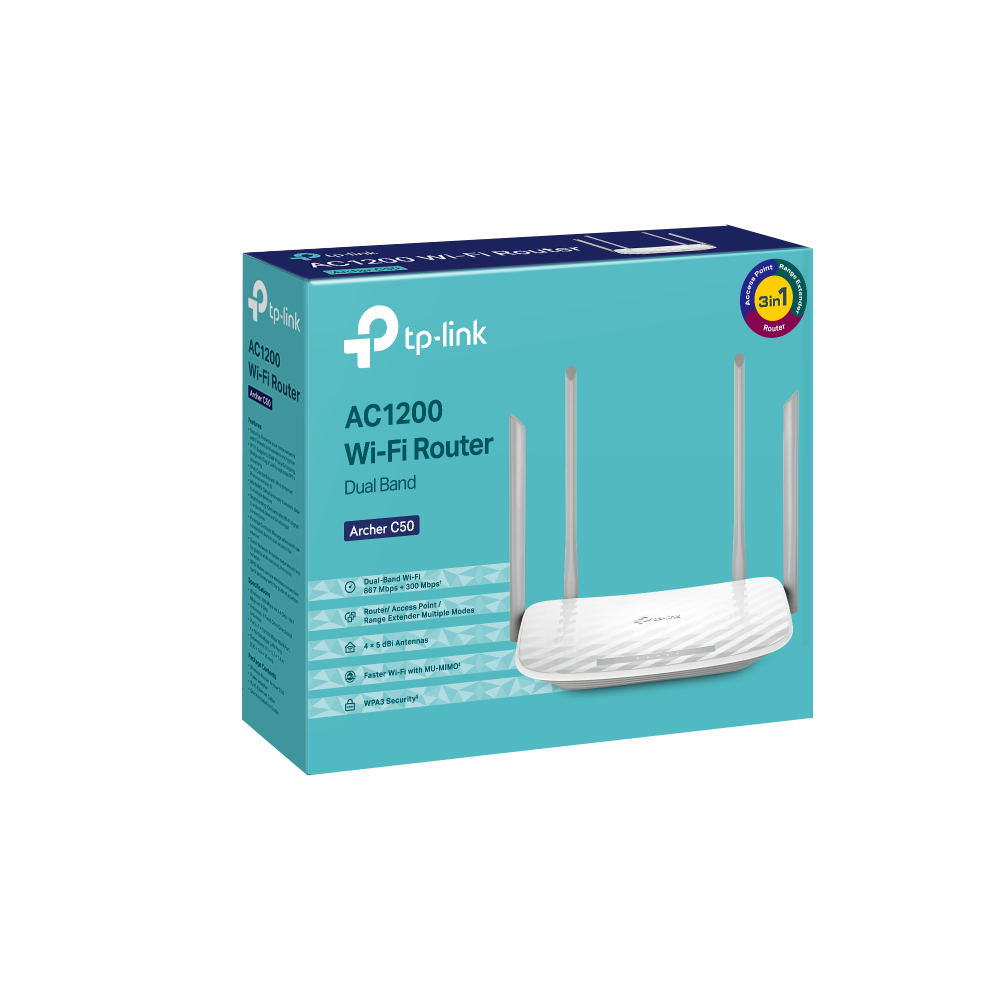

Archer C50
AC1200 Wireless Dual Band Router
- Support smooth 4K streaming with AC1200 Wi-Fi
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
Specifications
WIRELESS:
- Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC1200: 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range: 3 Bedroom Houses: (4× Fixed Antennas):Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity: Medium :Dual-Band: Allocate devices to different bands for optimal performance
- 2×2 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- Working Modes:
- Router Mode
- Access Point Mode
- Range Extender Mode
HARDWARE:
- Processor: Single-Core CPU
- Ethernet Ports: 1× 10/100 Mbps WAN Port
- 4× 10/100 Mbps LAN Ports
- Buttons:
- WPS/Wi-Fi Button
- Power On/Off Button
- Reset Button
- Power: 9 V = 0.85 A
SECURITY:
- WiFi Encryption:
- WPA
- WPA2
- WAP3
- WPA/WPA2-Enterprise (802.1x)
- Network Security:
- SPI Firewall
- Access Control
- IP and MAC Binding
- Application Layer Gateway
- Guest Network:
- 1× 2.4 GHz Guest Network
- 1× 5 GHz Guest Network
SOFTWARE:
- Protocols:
- IPv4
- IPv6
- Parental Controls:
- URL Filtering
- Time Controls
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service: QoS by Device
- NAT Forwarding:
- Virtual Servers
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
- IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP:
- Server
- DHCP Client List
- Address Reservation
- DDNS:
- NO-IP
- DynDNS
- Management:
- Tether App
- Webpage
TEST DATA:
- WiFi Transmission Power: CE: <20dBm(2.4GHz) <23dBm(5GHz)
- FCC:<30dBm(2.4GHz & 5GHz)
- WiFi Reception Sensitivity: 5 GHz: 11a 54M: -73dBm
- 11ac VHT20 MCS8: -68dBm
- 11ac VHT40 MCS9: -64dBm
- 11ac VHT80 MCS9: -60dBm
- 2.4 GHz: 11g 54M: -76dBm
- 11n HT20 MCS7: -74dBm
- 11n HT40 MCS7: -71dBm
PHYSICAL:
- Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in (229.9 × 144.2 × 36.9 mm)
- Warranty: 1year
