Description

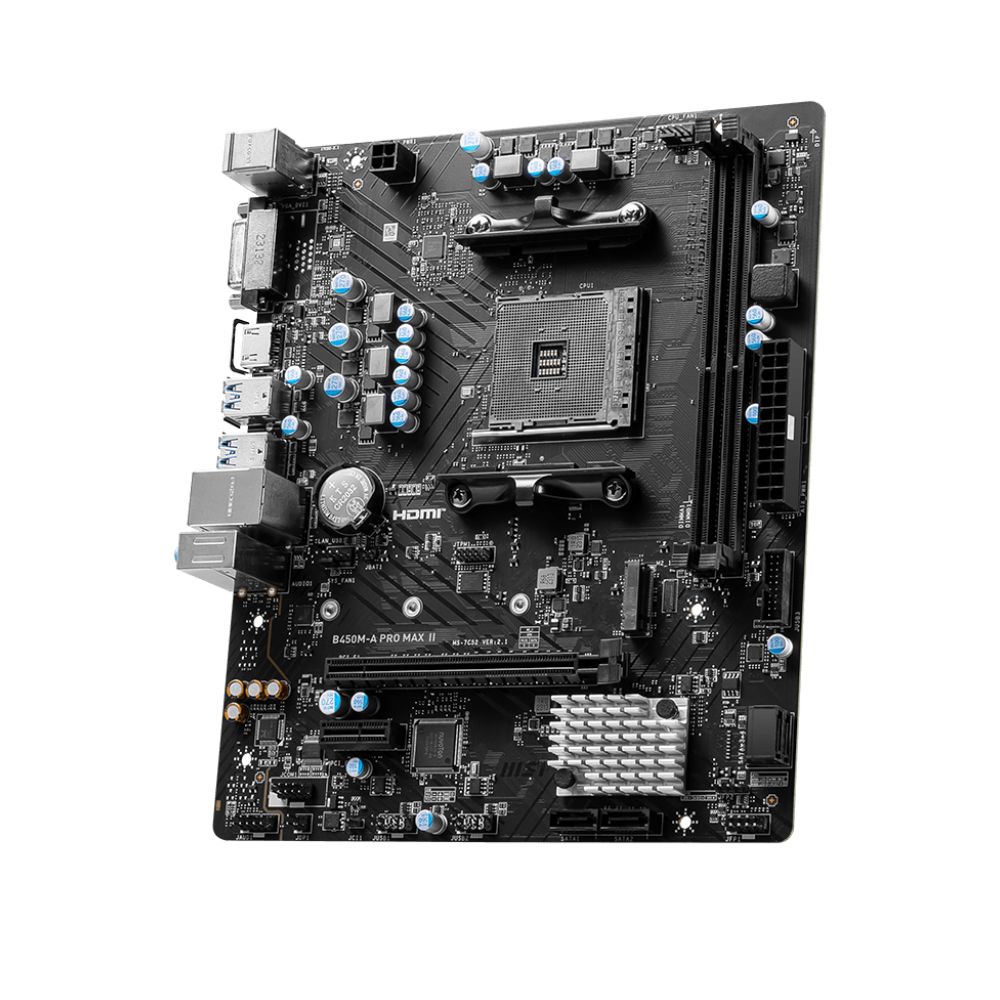

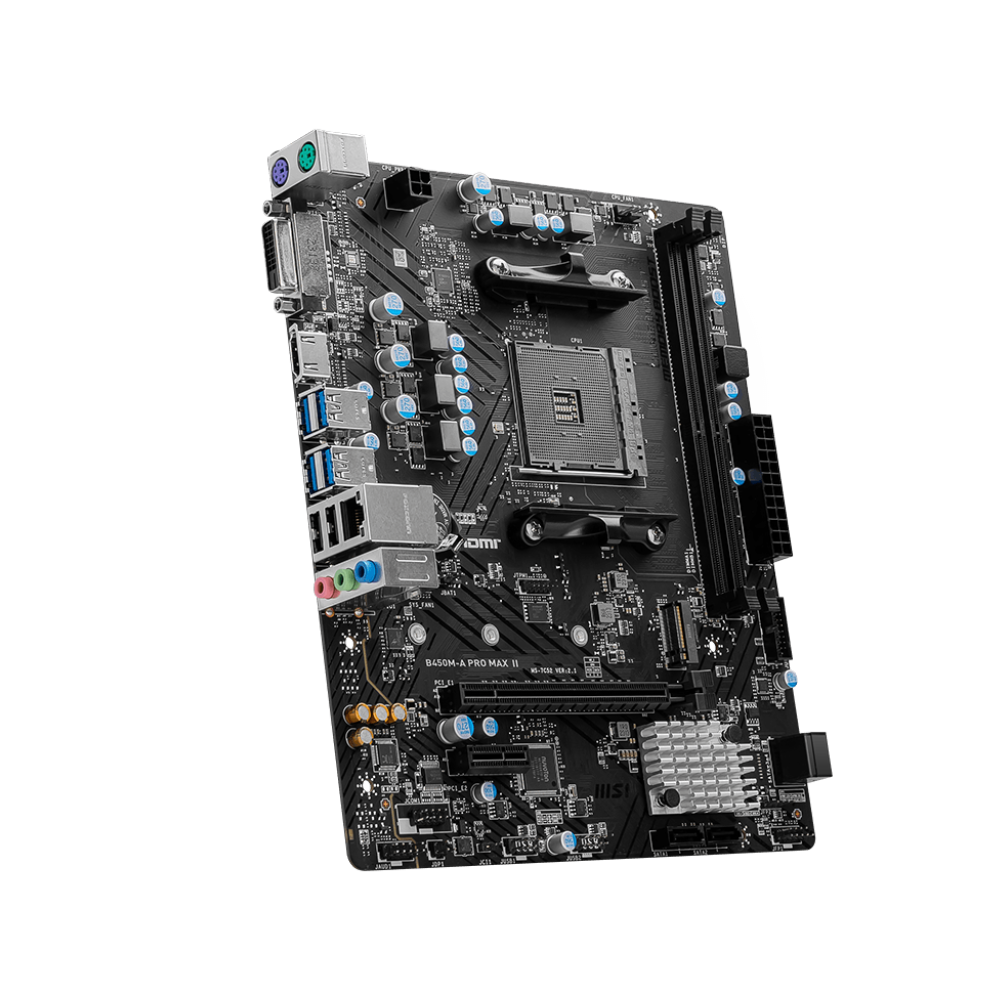

B450M-A PRO MAX II
features
- 2.5G Network Solution :Featuring premium 2.5G LAN to deliver better network experience.
- AMD Turbo USB 3.2 Gen1 :Powered by AMD, ensure an uninterrupted connection with more stability and fastest USB speeds.
- Turbo M.2 :Delivering Speeds Up to 32Gb/s
- Core Boost :With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive audio experience.
-
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
specifications:
- CPU Support: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 GSeries, 3000 Series, 3000 G-Series, 2000 Series, 2000 GSeries and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
- CPU Socket :Socket AM4
- Chipset :AMD B450 Chipset
-
Expansion Slots: 1x PCIe 3.0 x16 slot
1x PCIe 2.0 x1 slot -
Display Interface: Support 4K@24Hz as specified in HDMI™ 1.4, DVI-D
- Requires Processor Graphics - Memory Support :2 DIMMs, Dual Channel DDR4-4133+MHz(OC)
-
Storage: 1x M.2 Gen3 x4 32Gbps slot
4x SATA 6Gbps ports -
USB ports: 6x USB 3.2 Gen 1 5Gbps (6 Type-A)
6x USB 2.0 - LAN :Realtek® 8125BG 2.5G LAN
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Warranty: 1 Year
