Description

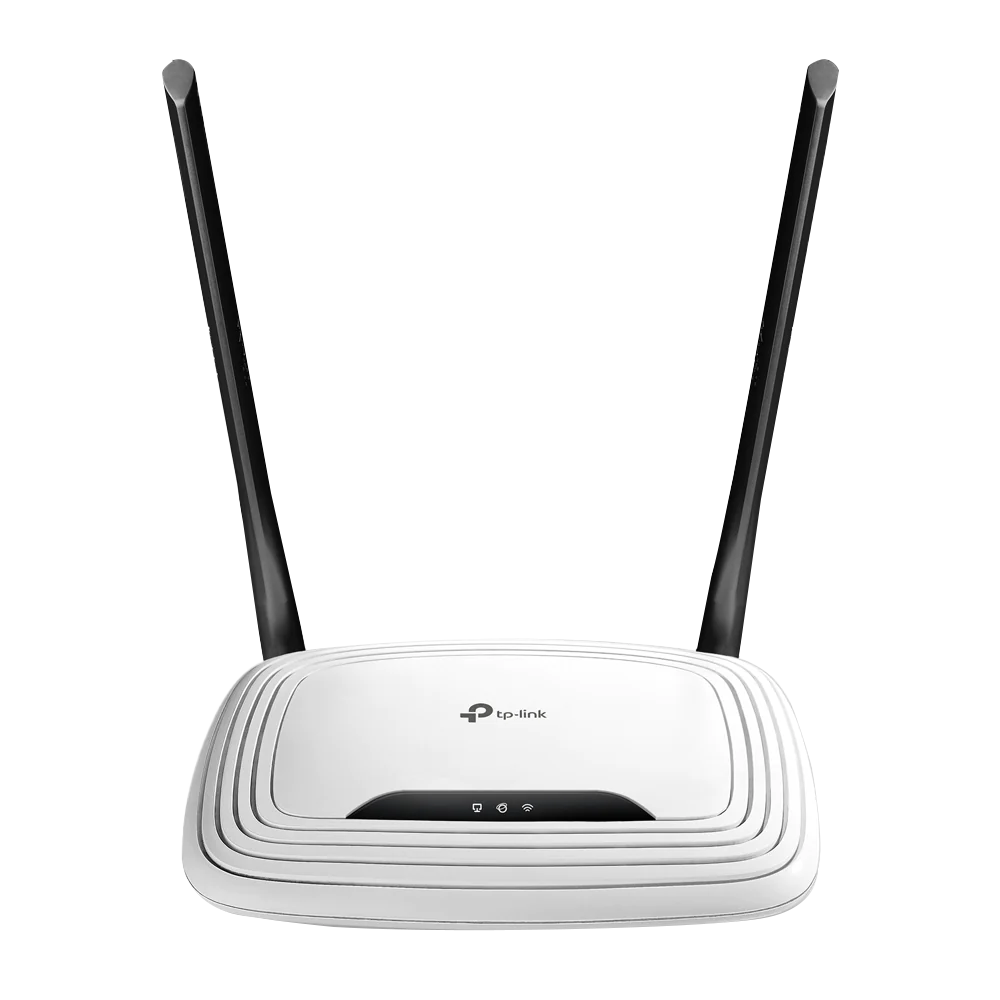

TL-WR841N
300Mbps Wireless N Router
- Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming.†
- Guest Network: provides separate access for guests while securing the home network.
- IPv6: compatible with IPv6 (Internet Protocol version 6).
- WPS Button: easy wireless security encryption at a push of WPS button.
- IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- Bandwidth Control: assigns your preferred devices with more bandwidth.
- Parental Controls: manage when and how connected devices can access the internet.
Specifications
SECURITY
- Network Security
- SPI Firewall
- Access Control
- IP & MAC Binding
- Guest Network 1× 2.4 GHz Guest Network
- WiFi Encryption
- WEP
- WPA
- WPA2
- WPA/WPA2-Enterprise (802.1x)
WIRELESS
- Standards Wi-Fi 4: IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds N300 : 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range 2 Bedroom Houses 2× Fixed Antennas
- Processor Single-Core CPU
- Ethernet Ports
- 1× 10/100 Mbps WAN Port
- 4× 10/100 Mbps LAN Ports
- Buttons Reset Button
- Power 9 V ⎓ 0.6 A
SOFTWARE
- Protocols
- IPv4
- IPv6
- Parental Controls
- URL Filtering
- Time Controls
- WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- NAT Forwarding
- VIrtual Server
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- IPTV IGMP Proxy
- IGMP Snooping
- DHCP Address Reservation
- DHCP Client List
- Server
- DDNS
- NO-IP
- Comex
- DynDNS
- OTHER
- System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
- Certifications FCC, CE, RoHS
- Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- TEST DATA
- WiFi Transmission Power CE:<20dBm(2.4GHz)FCC:<30dBm
- WiFi Reception Sensitivity 270M: -70dBm@10% PER
- 130M: -74dBm@10% PER
- 108M: -74dBm@10% PER
- 54M: -77dBm@10% PER
- 11M: -87dBm@8% PER
- 6M: -90dBm@10% PER
- 1M: -98dBm@8% PER
- Dimensions (W×D×H) 6.9 × 4.6 × 1.3 in
- (173 × 118 × 33mm)
- Warranty: 1year
