Description

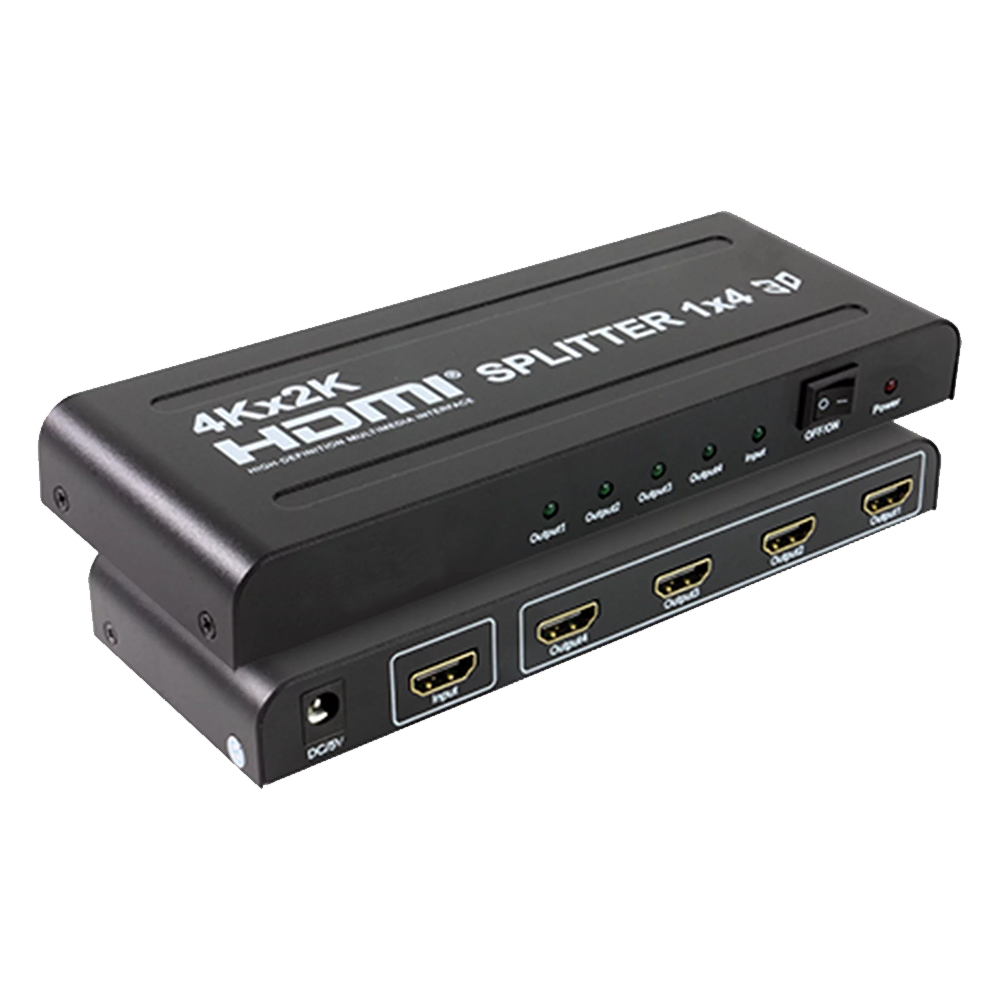

SPLITTER HDMI 4PORT I-ROCK
Description:
- Distributes HDMI signals from one source to 4 displays simultaneously
- Supports resolutions up to 4K 60Hz 4:4:4 with additional HDR support
- Extracts digital and analogue audio from HDMI for amplifiers without HDMI support
- Switch to downscale from 4K to 1080p
Specifications:
- Suppoort HDMI HDCP Version HDCP 2.2
- HDMI Input/Output Resolution Up to4K/60fs
- Support HDMI Video Color Format 2160p, 10/12 bits,24/25/30Hz, 2160p, 10/12bits, 50/60Hz
- HDMI MaxBandwidth 600MHz
- HDMI Audio Forma DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD
- HDMI Max Baud Rate 18Gbps
- Input Output TMDS Signal 0.5~1.5Vp-p(TTL)
- Input Output DDC Signal 5Vp-p(TTL)
- HDMI Input Cable Distance 3m AWG26 HDMI Standard Cable
- HDMI Output Cable Distance 3m AWG26 HDMI Standard Cable
- Max Working Current 300mA
- Power Adapter Format AC 100V-240V 50/60HZ,DC 5V/1A
- Storage Humidity Range 5~95%RH(No Condensation)
- Case Dimension 112×55×18(mm)
- WeighT: 135g
-
Warranty: 30DAYS
