Description

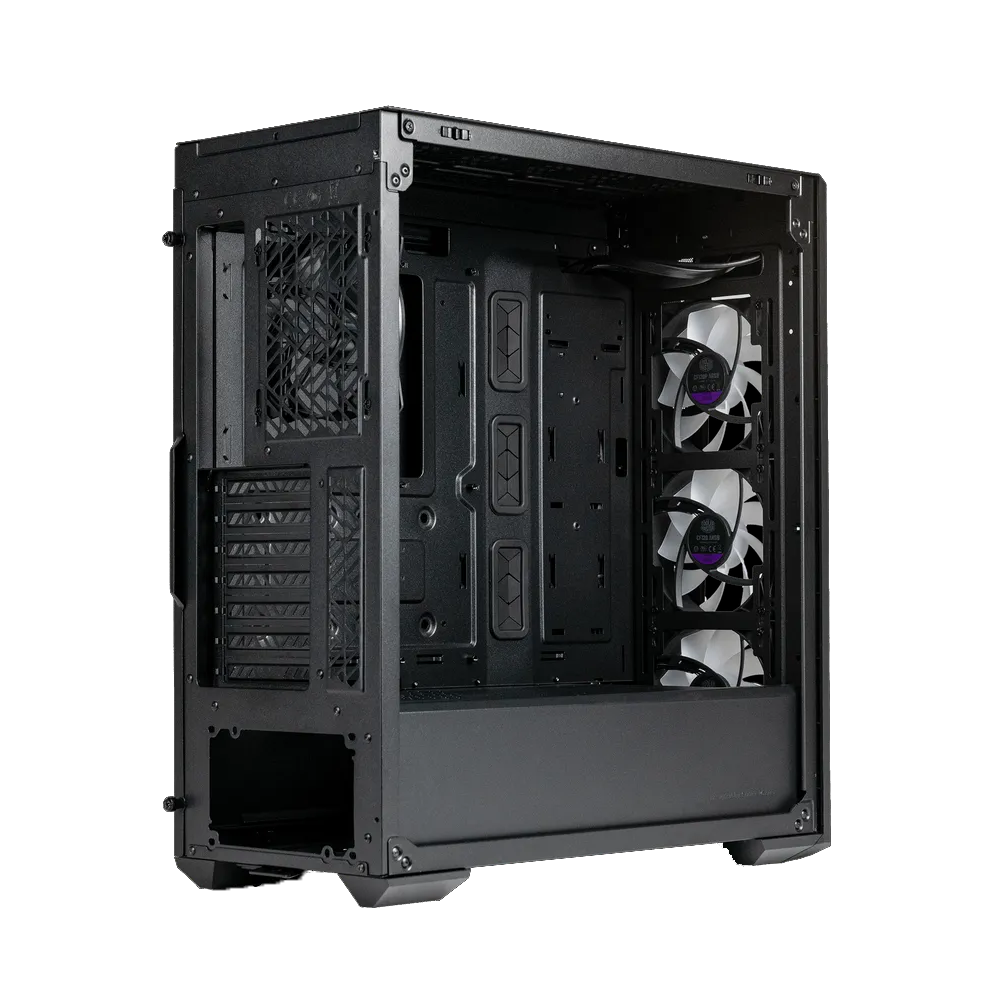

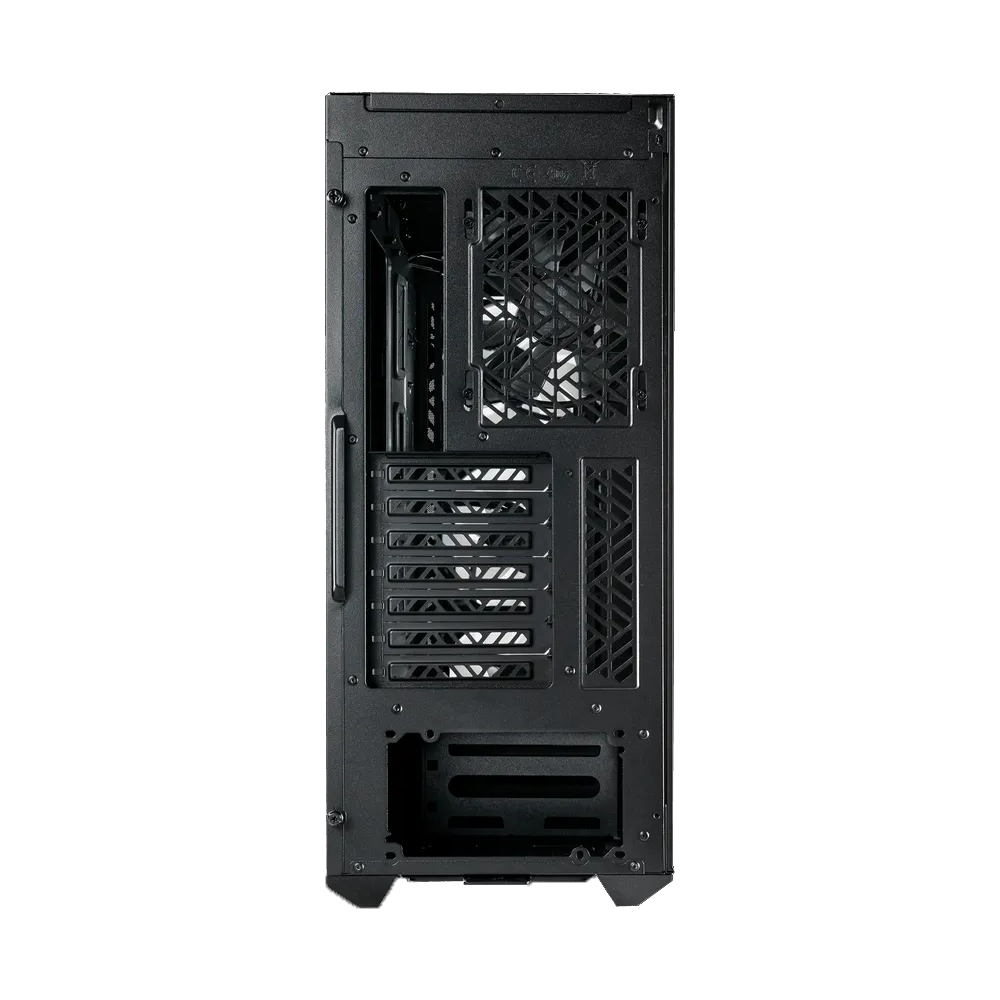

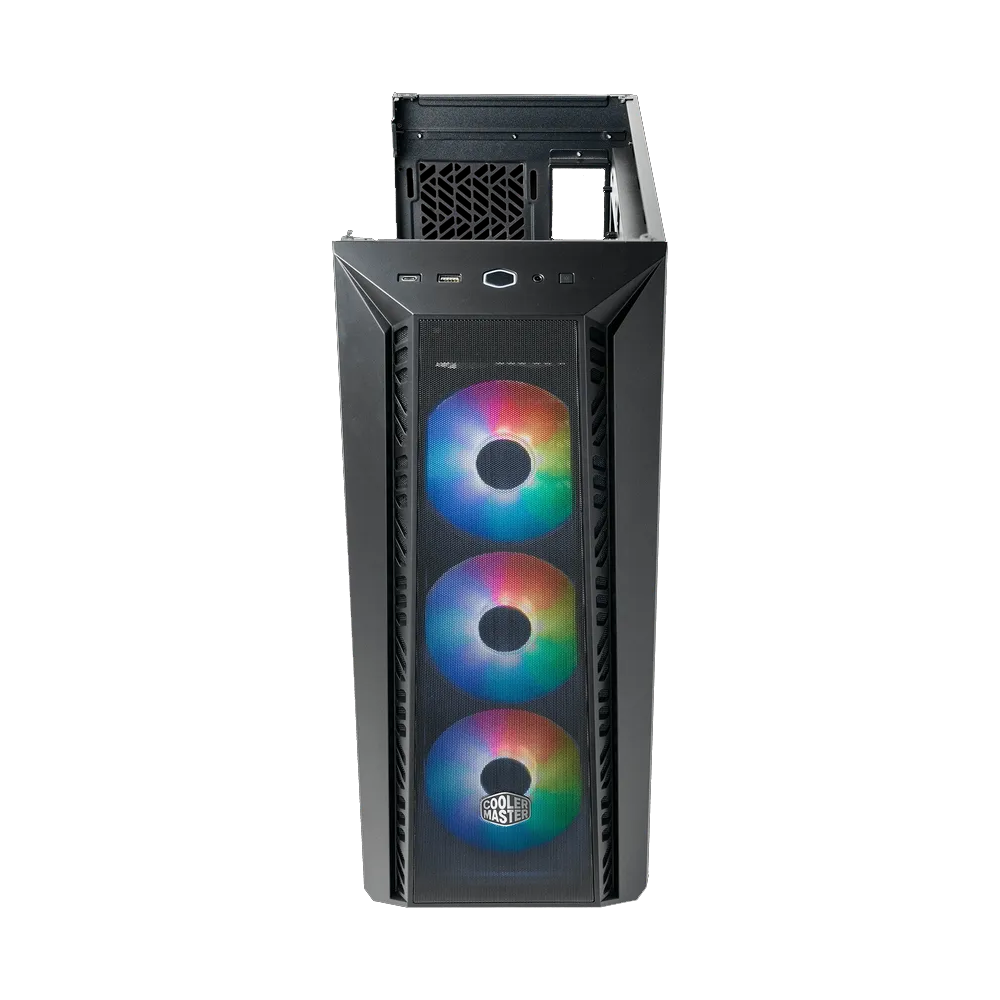

MasterBox 520 Mesh
specifications
- Model Number MasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00
- Materials - ExteriorMesh, Steel, ABS Plastic, Tempered Glass
- Materials - Left Side PanelTempered Glass
- Dimensions (L x W x H)499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)
- Motherboard SupportMini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots :7
- 3.5" Drive Bays :2
- 2.5" Drive Bays :3
- I/O Panel - USB Ports1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C
- I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
- I/O Panel - Other1x Reset/ARGB button
- Included AccessoriesARGB Fans Hub
- Pre-installed Fans - TopN/A
- Pre-installed Fans - Front3x CF120 ARGB
- Pre-installed Fans - RearN/A
- Fan Support - Top3x 120mm, 2x 140mm
- Fan Support - Front3x 120mm, 2x 140mm
- Fan Support - Rear1x 120mm
- Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear120mm
- Clearance - CPU Cooler165mm
- Clearance - PSU200mm (Recommended up to 170mm)
- Clearance - GFX410mm
- Dust Filters Front, Top, Bottom
- Power Supply Support :ATX
- Size :Mid TowerSeriesMasterBox Series
- Back Connector Motherboard SupportNo
- warranty : 1 year
