Description
- Lightning Gen4 Solution :The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- USB 3.2 Gen 2 Type-C :Synergize with a MSI motherboard through bridging with a USB3.2 Gen 2 Type-C port for convenient access.
- PCI-E Steel Armor :Protecting VGA cards against bending and EMI.
- EZ Debug LED :Easiest way to troubleshoot.
- Frozr AI Cooling :Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Memory Boost :Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost :With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost :Reward your ears with studio grade sound quality for the most immersive audio experience.
specifications

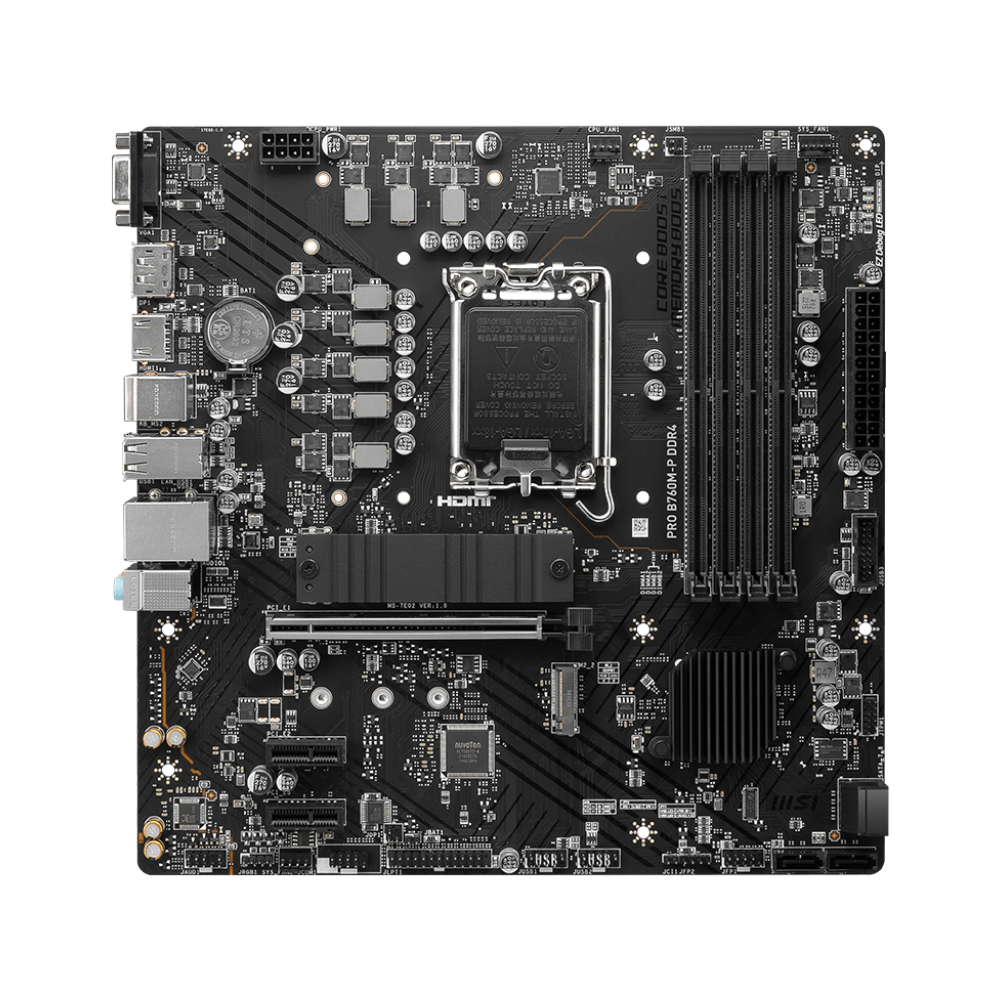

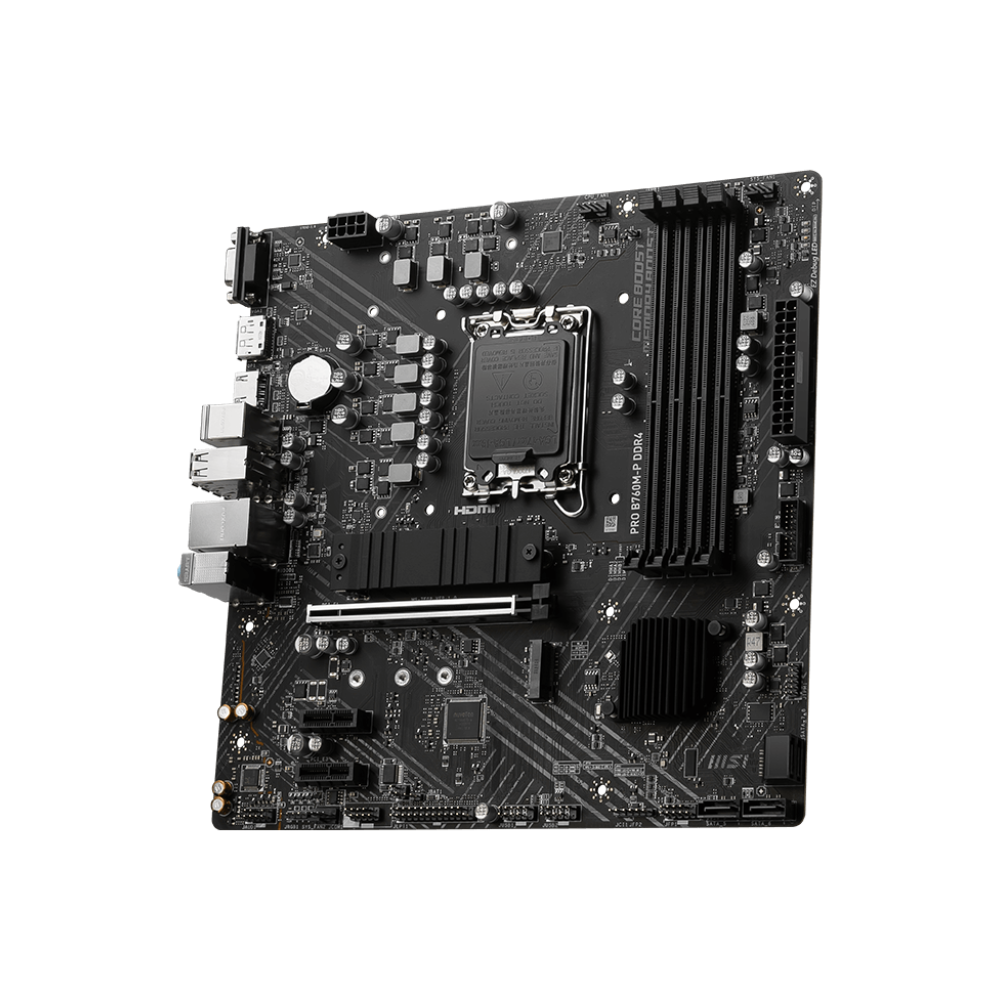

- Model Name :PRO B760M-P DDR4
- CPU Support :Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium® Gold and Celeron® Processors
- CPU Socket :LGA 1700
- Chipset Intel® B760 Chipset
-
Expansion Slots 1x PCIe 4.0 x16 slot
2x PCIe 4.0 x1 slots -
Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort
1.4, VGA – Requires Processor Graphics - Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz(OC)
-
Storage 2x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports -

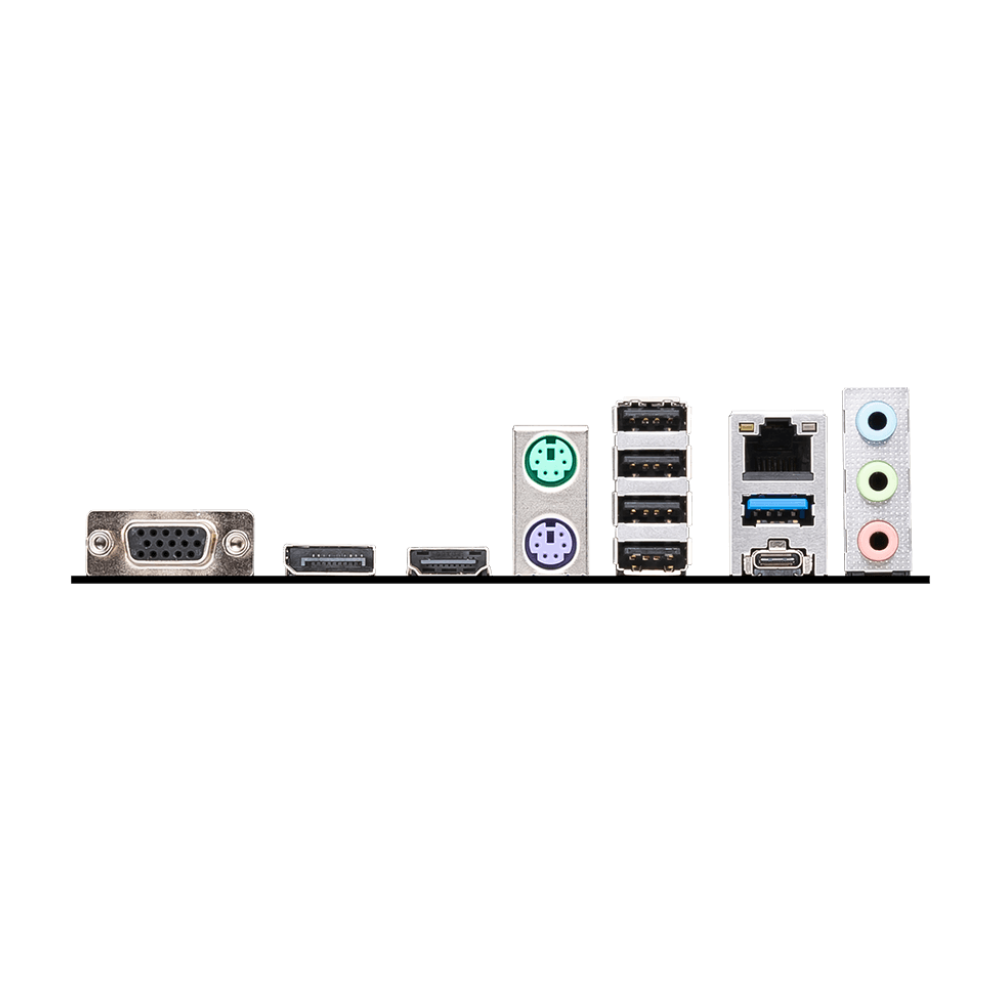

USB ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C),
3x USB 3.2 Gen 1 5Gbps (3 Type-A),
8x USB 2.0 -
LAN Realtek®
RTL8111H Gigabit LAN - Audio 8-Channel (7.1) HD Audio with Audio Boost
- warranty : 1 year
