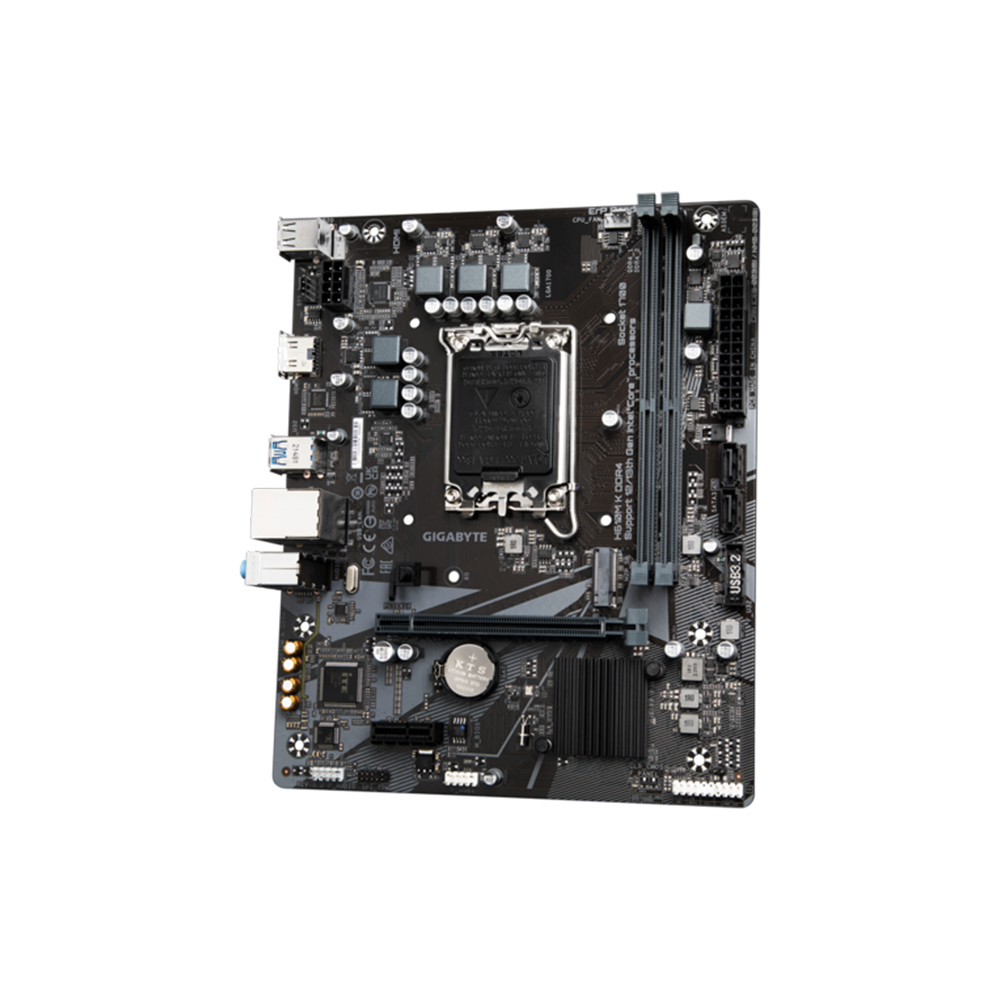

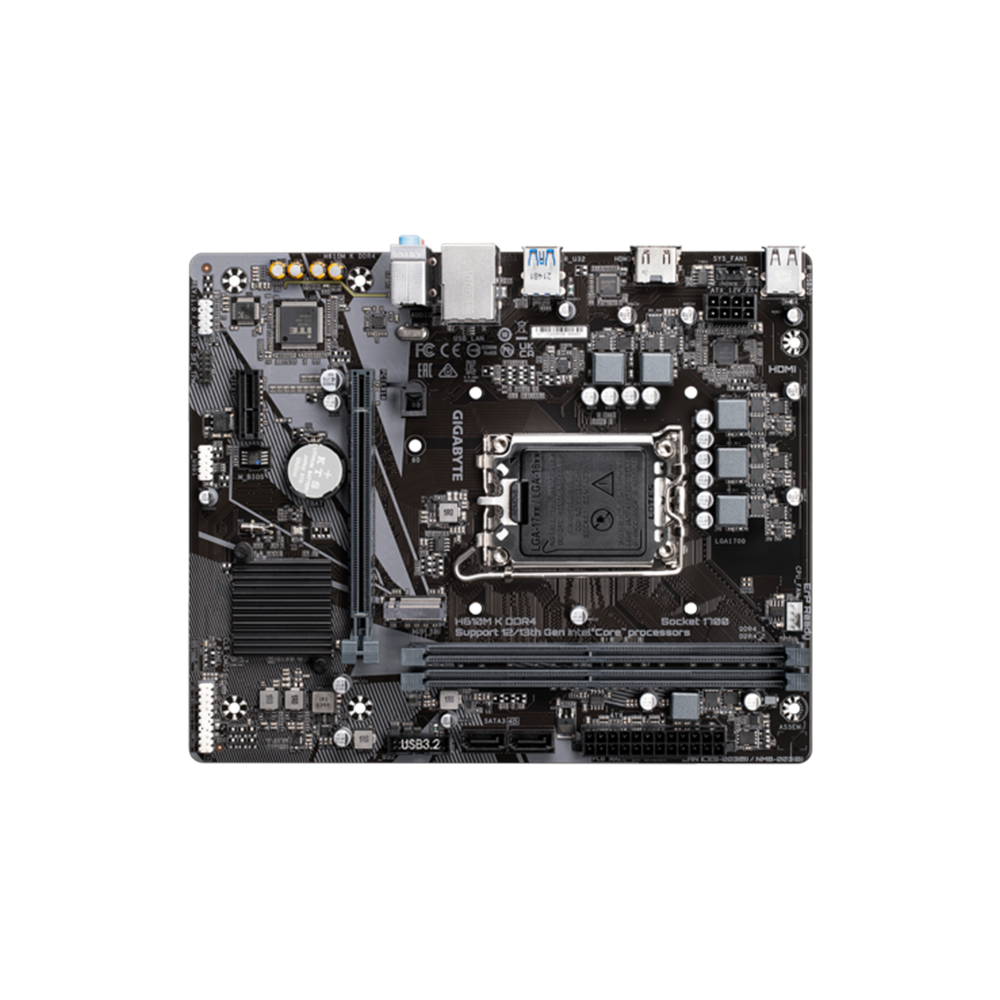

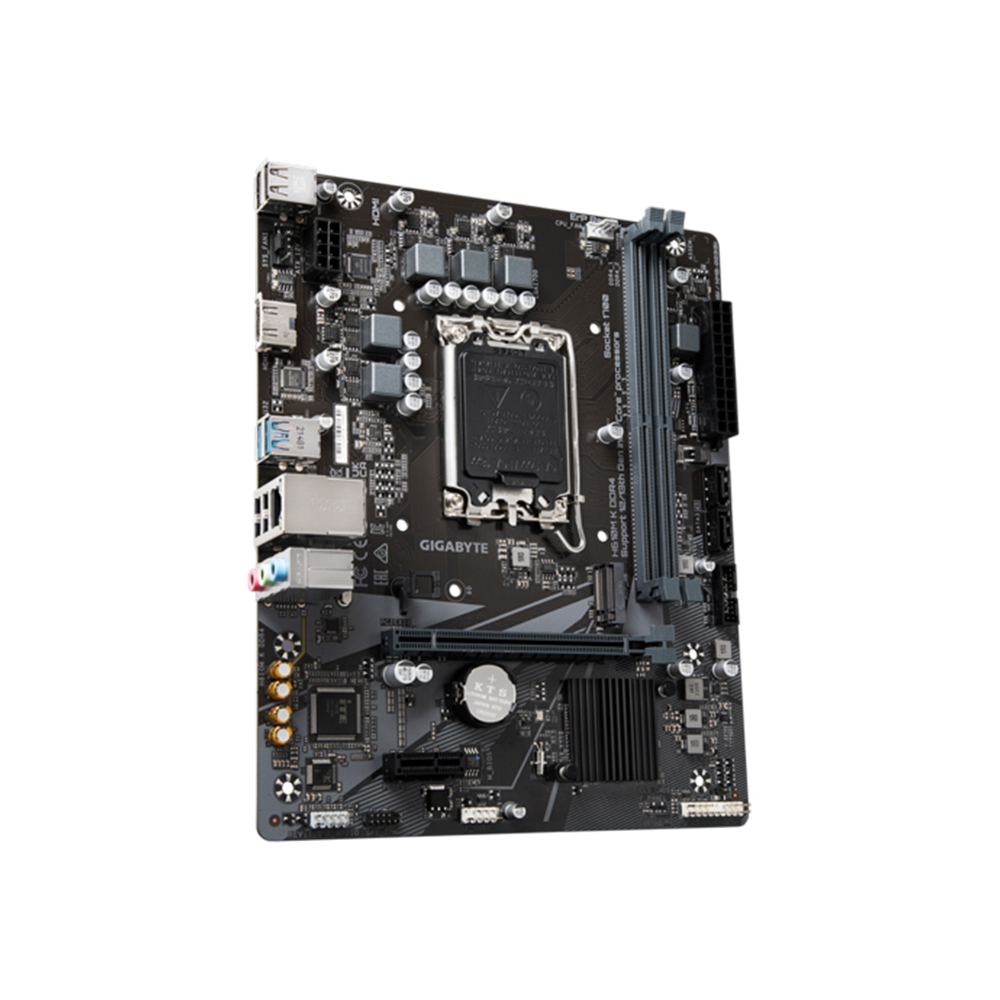

MOTHERBOARD GIGABYTE INTEL H610M K DDR4 (LGA1700)

H610M K DDR4

Features:

• Supports Intel^® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
• GbE LAN with Bandwidth Management​
• NVMe PCIe 3.0 x4 M.2​
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
• GIGABYTE APP Center, Simple and Easy Use​
• Anti-Sulfur Resistors Design​

 Specifications:

• CPU:
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
  2. L3 cache varies with CPU
• Chipset:
  1. Intel^® H610 Express Chipset
• Memory:
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Audio:
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel


• LAN:
  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots:
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface:
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors
• USB:
  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 2 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x Clear CMOS jumper

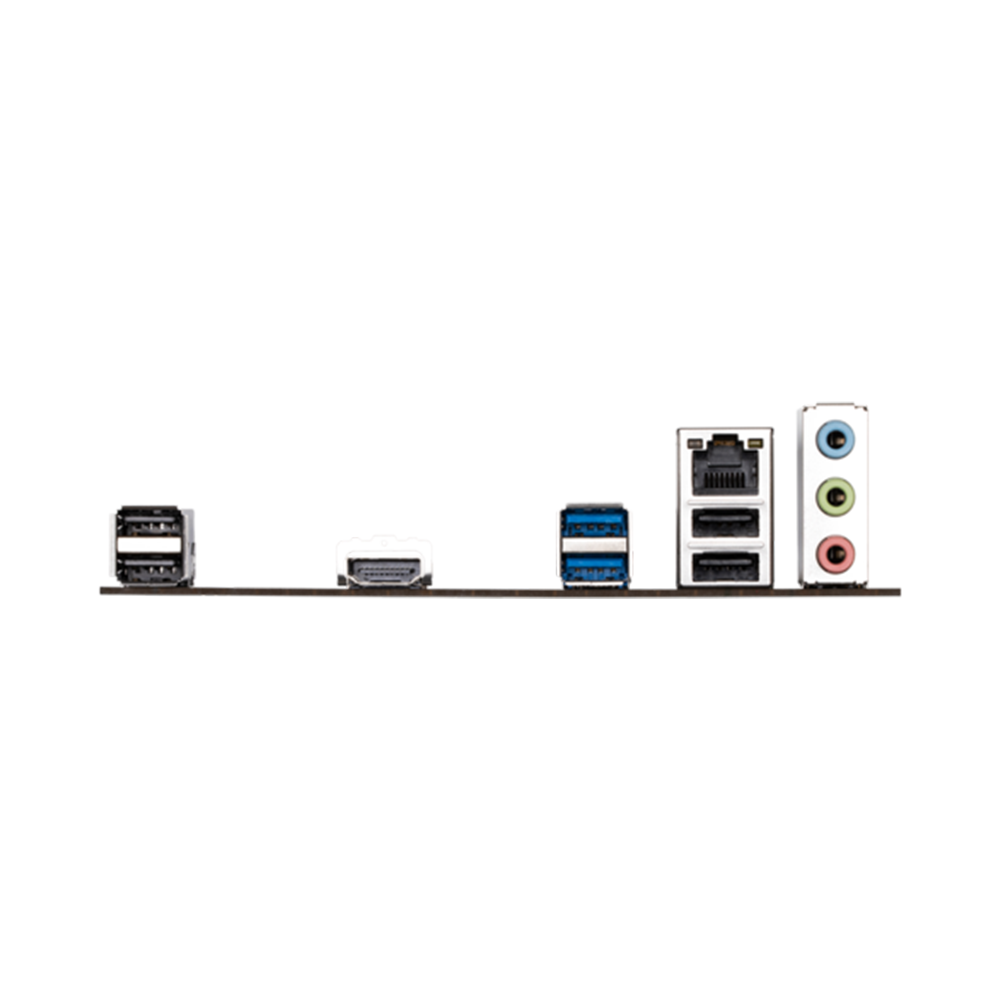

• Back Panel Connectors:
  1. 1 x HDMI port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x RJ-45 port
  5. 3 x audio jacks
• I/O Controller:
  1. iTE^® I/O Controller Chip
• H/W Monitoring:
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control

• BIOS:
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

  Warranty: 1Year
