Description

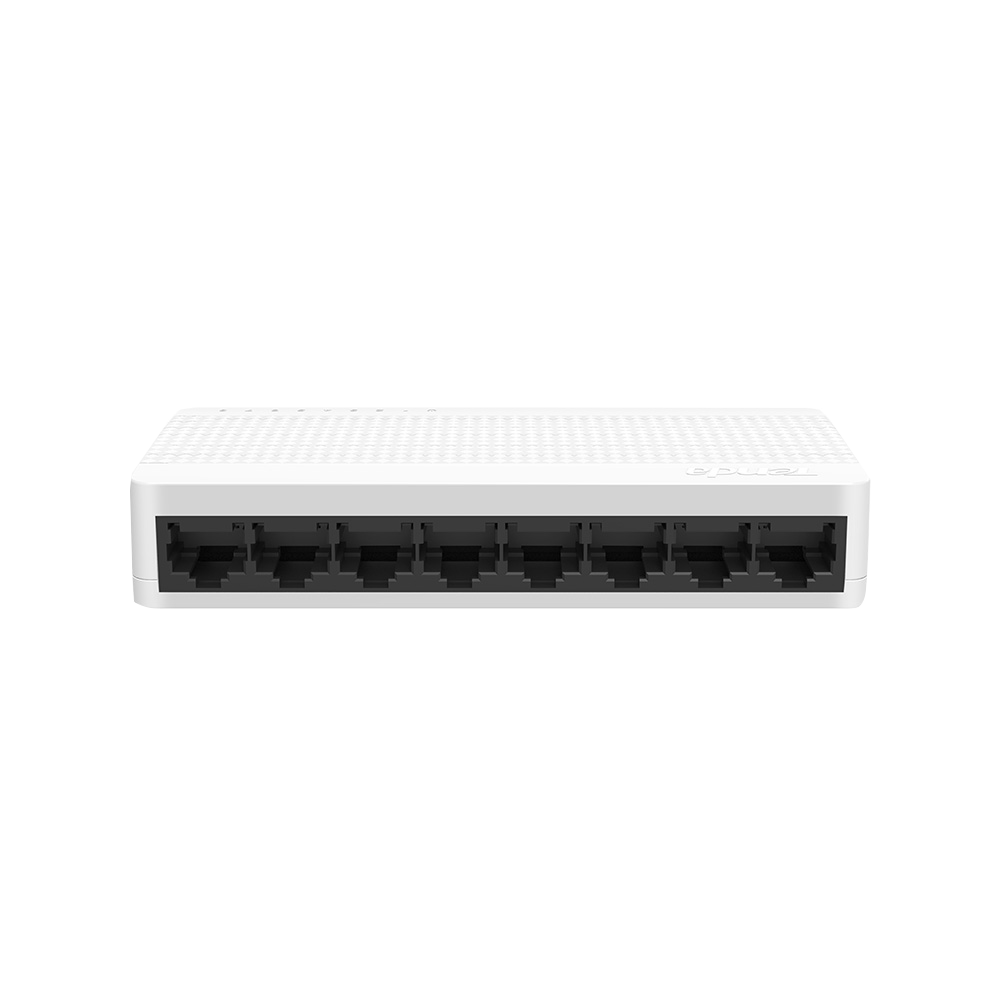

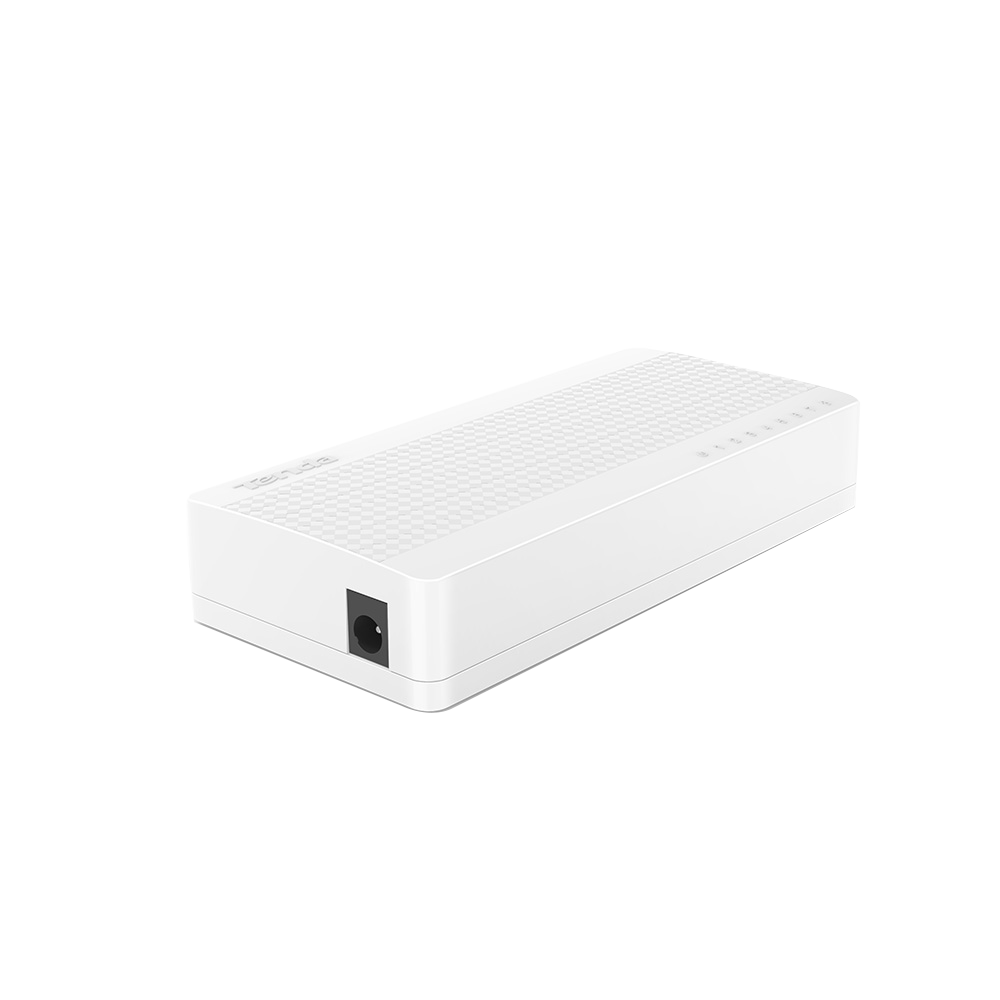

S108 v8.0
8-port Ethernet Switch
- Tenda 8-port Ethernet Switch S108 is a desktop switch specially designed for families, offices, dormitories etc.8* 10/100 M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easy in no time. Whether you are a tech-savvy enthusiast or a first-time user, S108 is very easy and intuitive to setup without time-consuming operations. With ultra-compact design , Tenda S108 also supports desktop and wall-mounting so you can put S108 anywhere you want and move flexibly. Compatible with computer, printer, smart TVs, NAS, smart game console and IP-cameras, Tenda S108 makes your home network fun & easy.
Features
- 8*10/100 Mbps auto-negotiation RJ45 ports obtains the fastest possible connection
- Compliant with IEEE802.3，IEEE802.3u，IEEE802.3X standard
- 8* LED indicators display the connection status
- Supports10/100M full duplex and half duplex
- Store-and-forward mode
- Supports MAC address auto learning and auto aging
- Supports to connect with IP-camera
- Plug-and-play without configuration
- Supports wall-mounting and desktop installation Energy saving technologies help you save power and money
specifications
- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- LED Indicator :1* Power, 8* Link/Act
- Interfaces :8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
- Transmission media : Recommended: CAT5/5e UTP or better
- Dimension :124.0mmx59.0mmx23.1mm
- Material : Plastic
- Level of protection
- ESD:
- Air discharge: ±8kV
- Contact discharge: ±6kV
- Forwarding mode : Store-and-forward
- Switch capacity :1.6Gbps
- Packet forwarding rate: 1.19Mpps
- Buffer: 448K
- MAC address table :1K
- Power
- Input: 100-240V AC 50/60Hz
- Output: 5.0V 0.6A ( External Power Adapter )
- Power consumption Max:<2.15W
- Mounting :Desktop mounting: support
- Wall mounting: support
- Rack mounting: non-support
- Environment :
- Operating temperature: 0°C - 45℃
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%) RH, non-condensing
- Storage humidity: (5% - 90%) RH, non-condensing
- Certification: CE, FCC, RoHS
- Protocols: CDMA/CD
- MAC address learning : Auto-Learning and Auto-Aging
- Funtions :plug-and-play
- warranty : 1 year
