Description

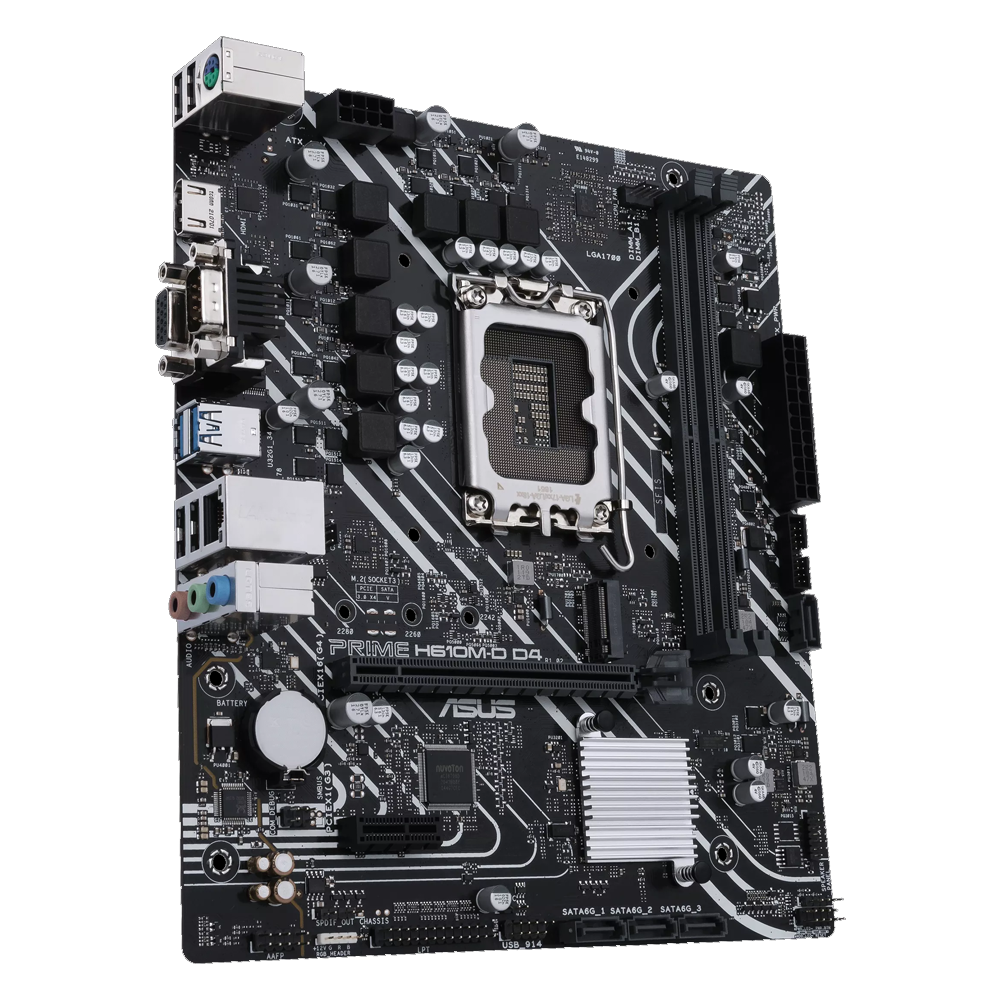

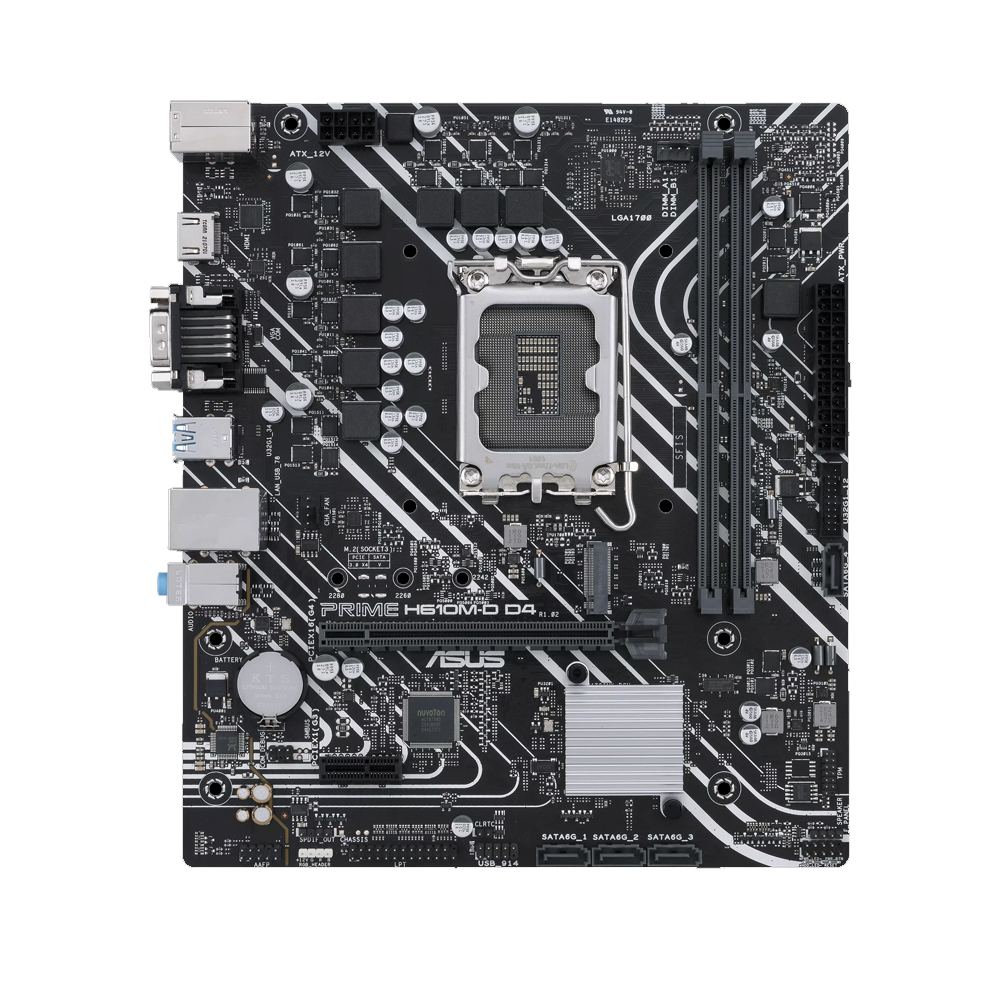

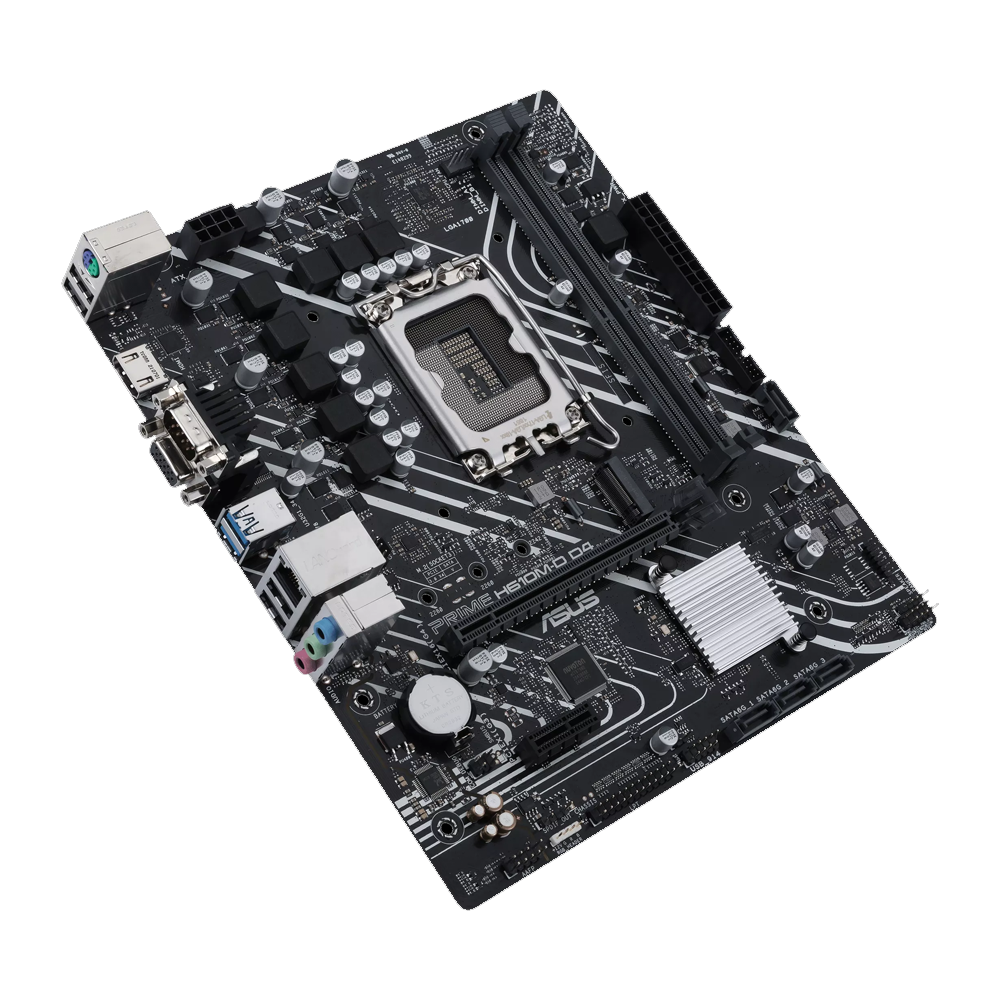

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header
- Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
specifications
- Model: PRIME H610M-D D4
- CPU :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- Chipset :Intel® H610 Chipset
- Memory :2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Graphics
- 1 x D-Sub port
- 1 x HDMI® port**
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots
- Intel® Core™ Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
- Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
- Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- Intel® H610 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Ethernet
- 1 x Realtek 1Gb Ethernet
- USB
- Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 4 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

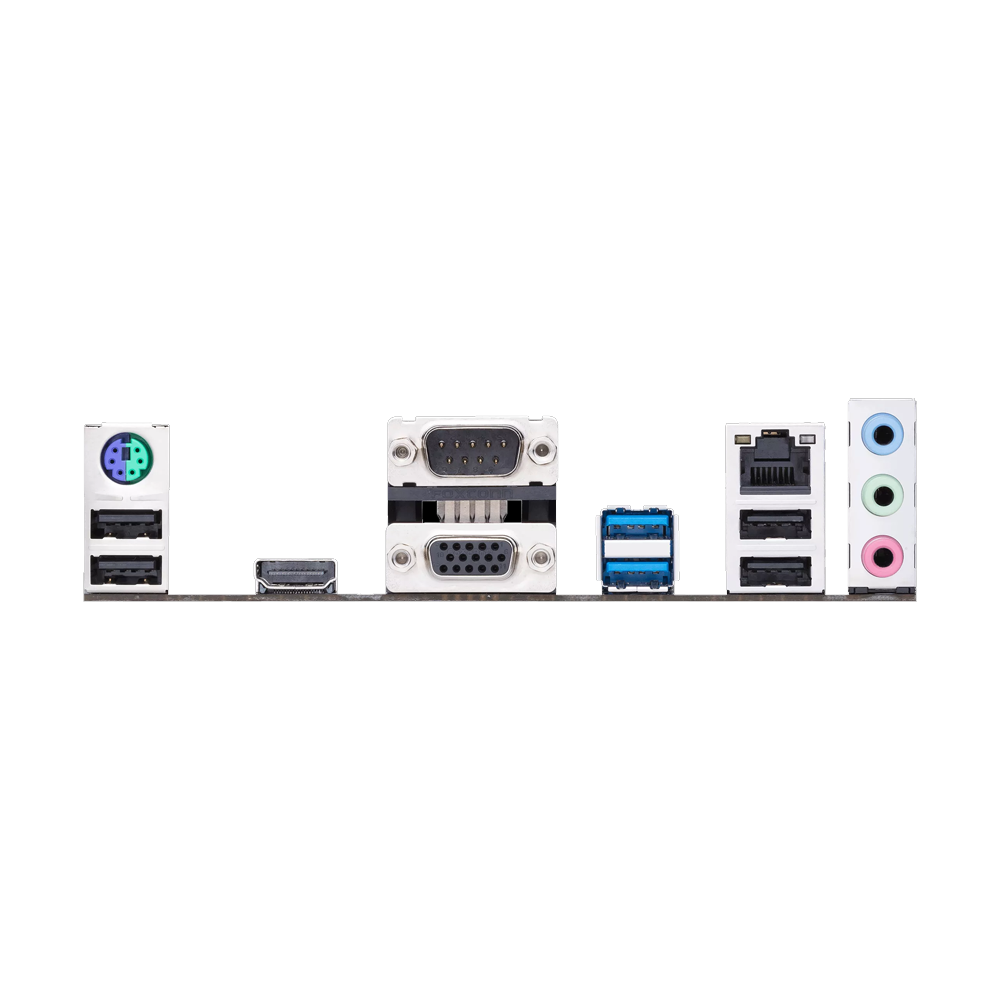

- Back Panel I/O Ports
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x D-Sub port
- 1 x HDMI® port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x COM port
- 1 x PS/2 Keyboard/Mouse combo port
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS Lighting Control
- - RGB header
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert
- ASUS CPU-Z
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- BIOS :128 Mb Flash ROM, UEFI AMI BIOS
- Manageability :WOL by PME, PXE
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous

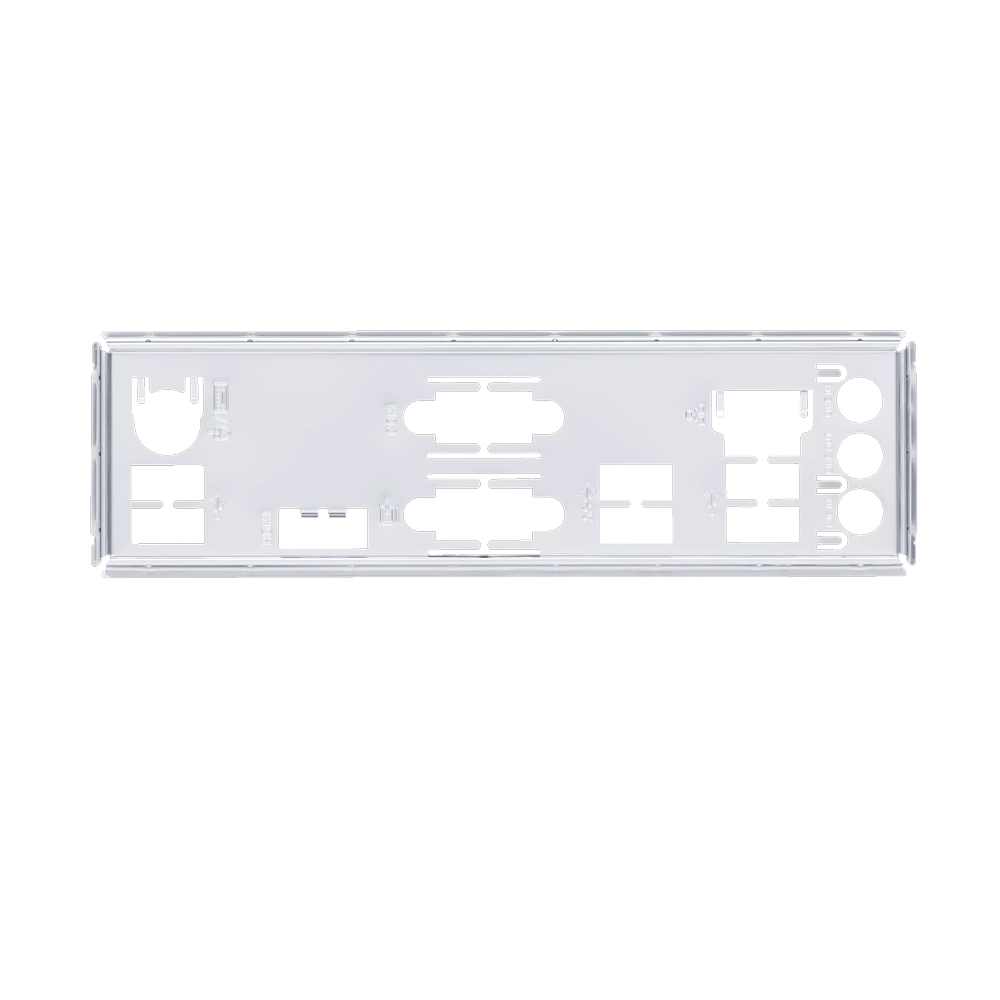

- 1 x I/O Shield
- 1 x M.2 ANCHOR
- Installation Media :1 x Support DVD
- Documentation :1 x User Guide
- Operating System :Windows® 11 64-bit, Windows® 10 64-bit
- Form Factor
- mATX Form Factor :9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
- warranty : 1 year
