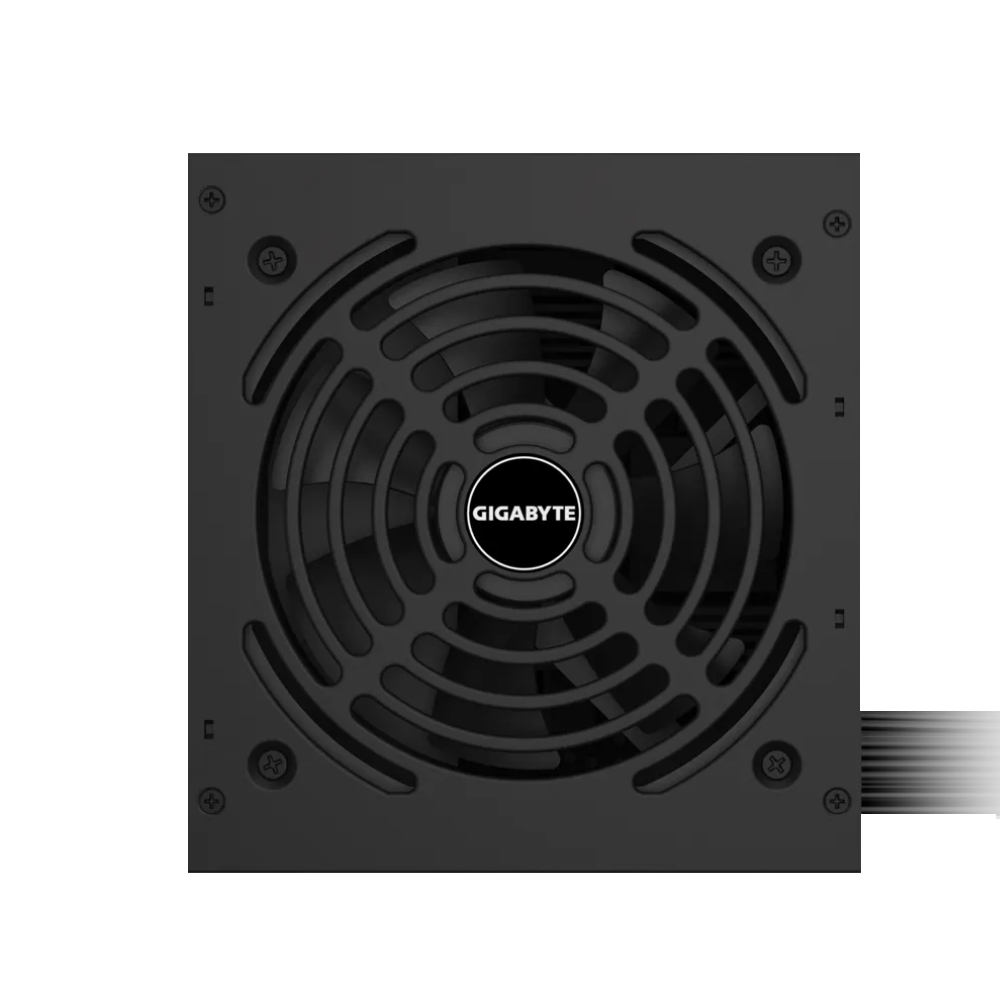

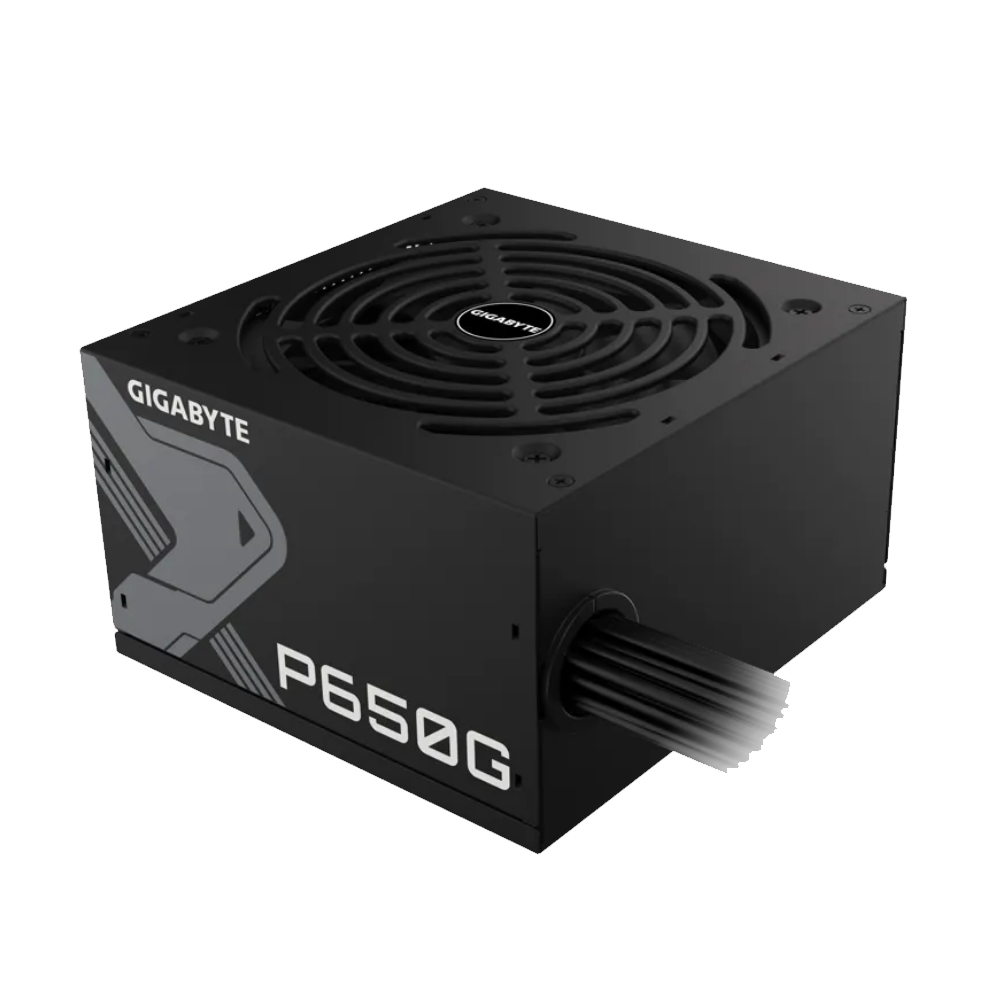

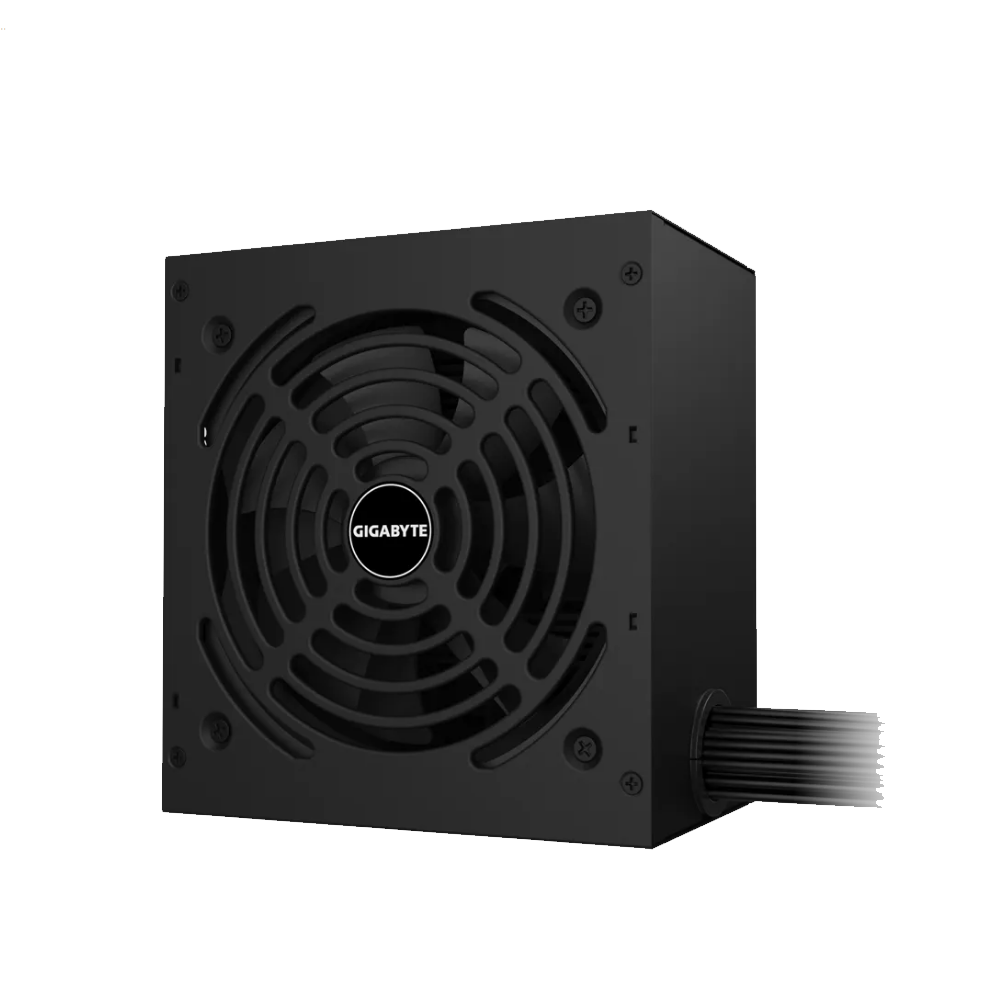

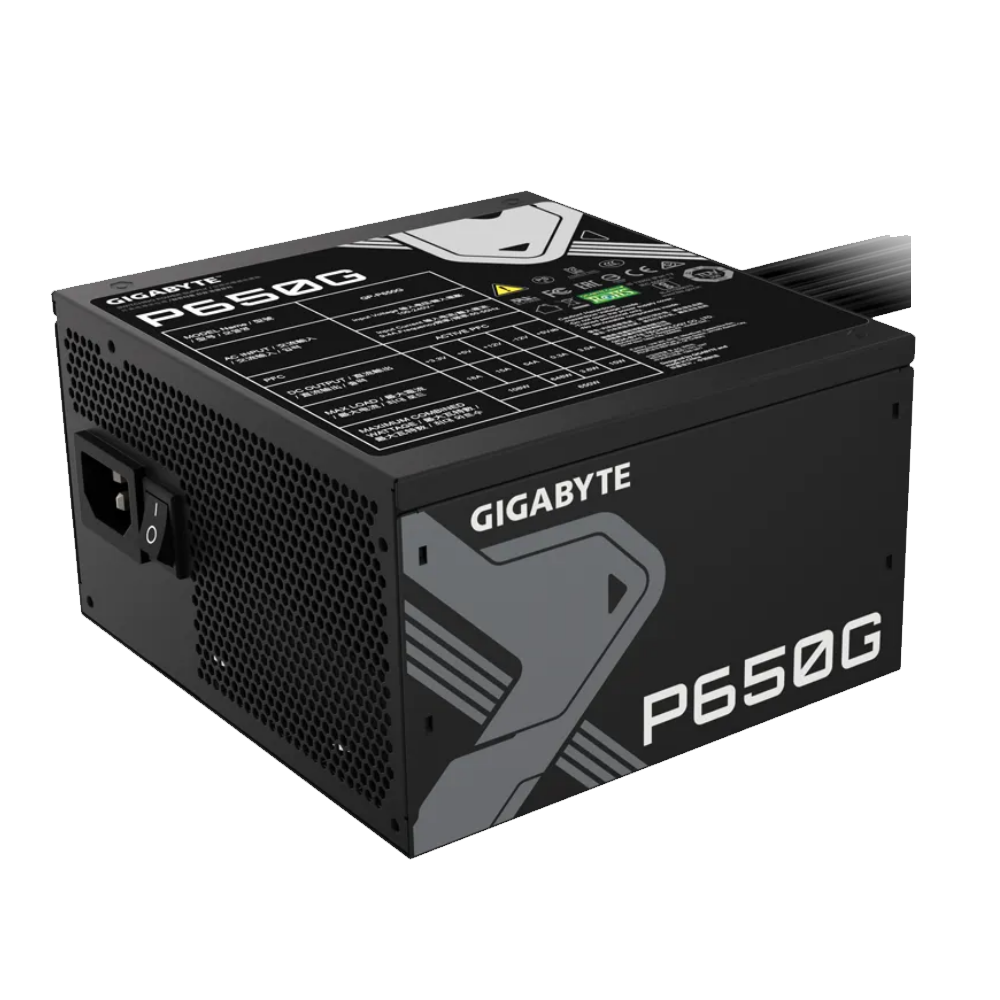

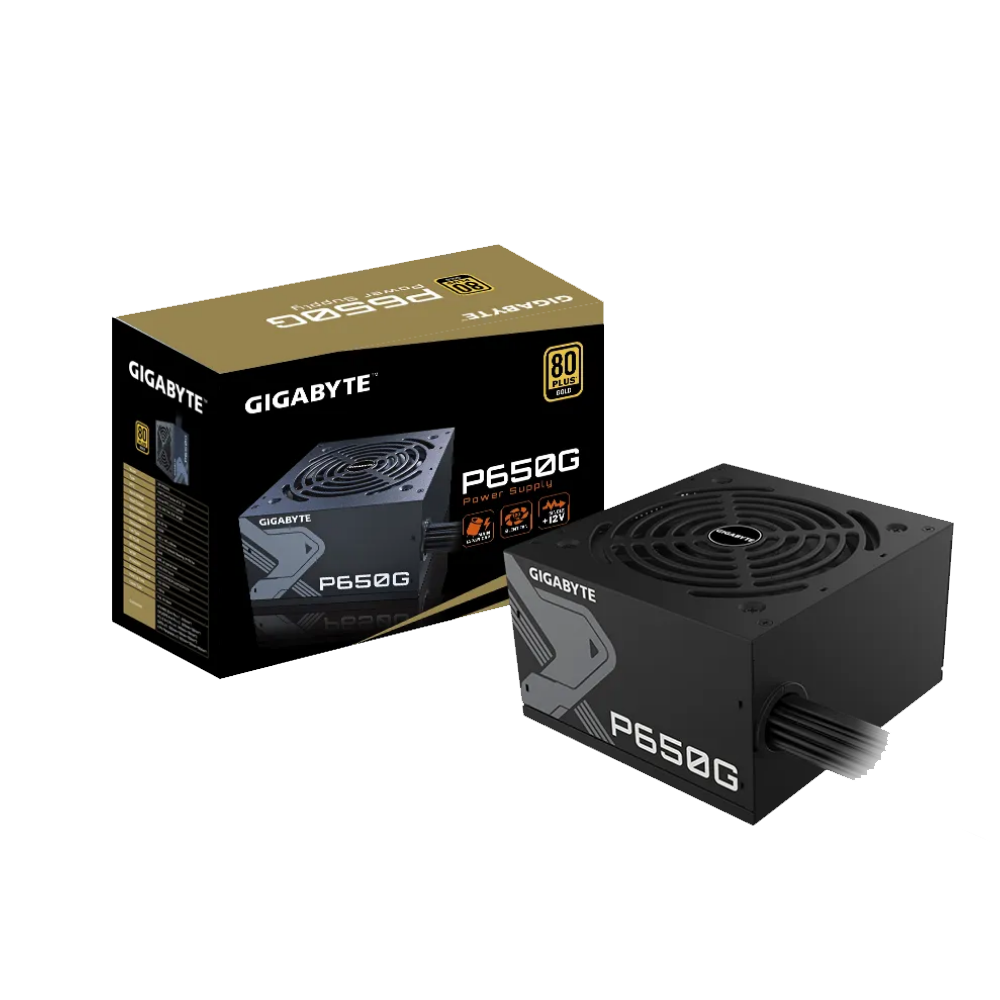

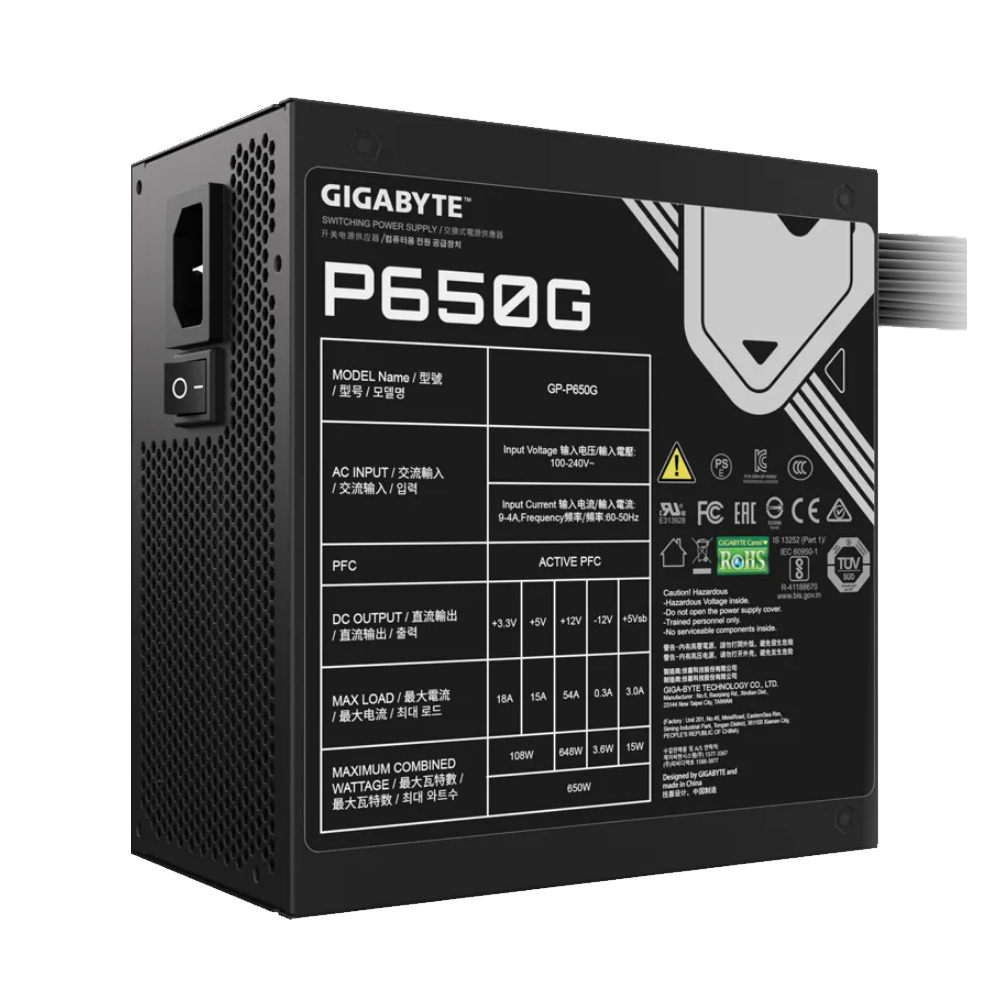

Gigabyte P650G 80 PLUS Gold 650W Power Supply

features

• 80 PLUS Gold certified
• Main Japanese capacitors
• 120mm Silent Hydraulic Bearing (HYB) Fan
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Compact design

specifications

• Model :GP-P650G
• Type :Intel Form Factor ATX 12V
• PFC :Active PFC(>0.9 typical)
• Input Voltage :100-240 Vac(full range)
• Input Current :9-4A
• Input Frequency :60-50 Hz
• Output Capacity :650W
• Dimension :150 x 140 x 86 mm
• Fan Type :120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS :Gold
• Efficiency :90% at typical load
• MTBF :>100,000 hours
• Protection :OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal:100-500ms
• Hold Up Time :>16ms
• Cable Type :Flat, All black
• Connectors :ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
  PCI-e 6+2 Pin x 4 : 500mm+150mm*2
  SATA x 6 : 500mm+150mm+150mm*2
  4 Pin Peripheral x 3: 500mm+150mm+150mm*1

  warranty : 1year
