Description
Tapo D230S1
Tapo Smart Battery Video Doorbell
-
2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.

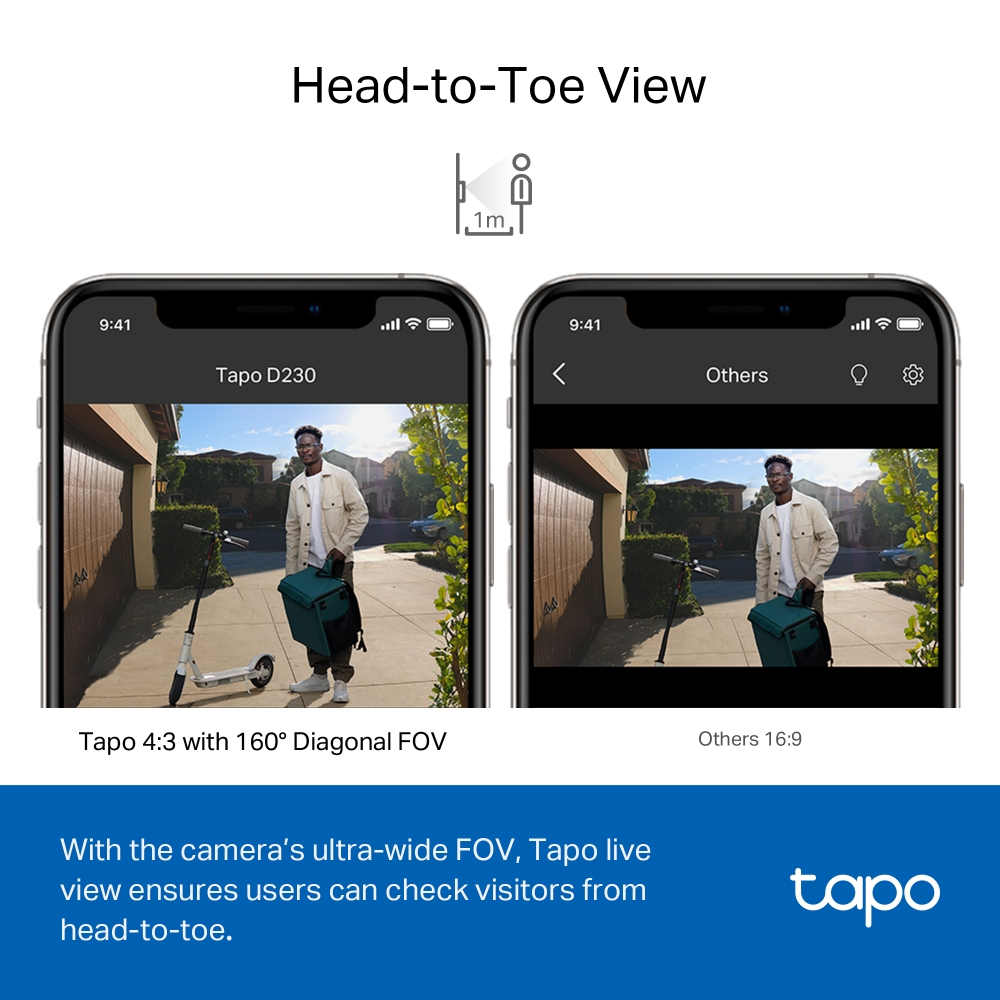

Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m†, which shows more vertical details than other 16:9 doorbells'.

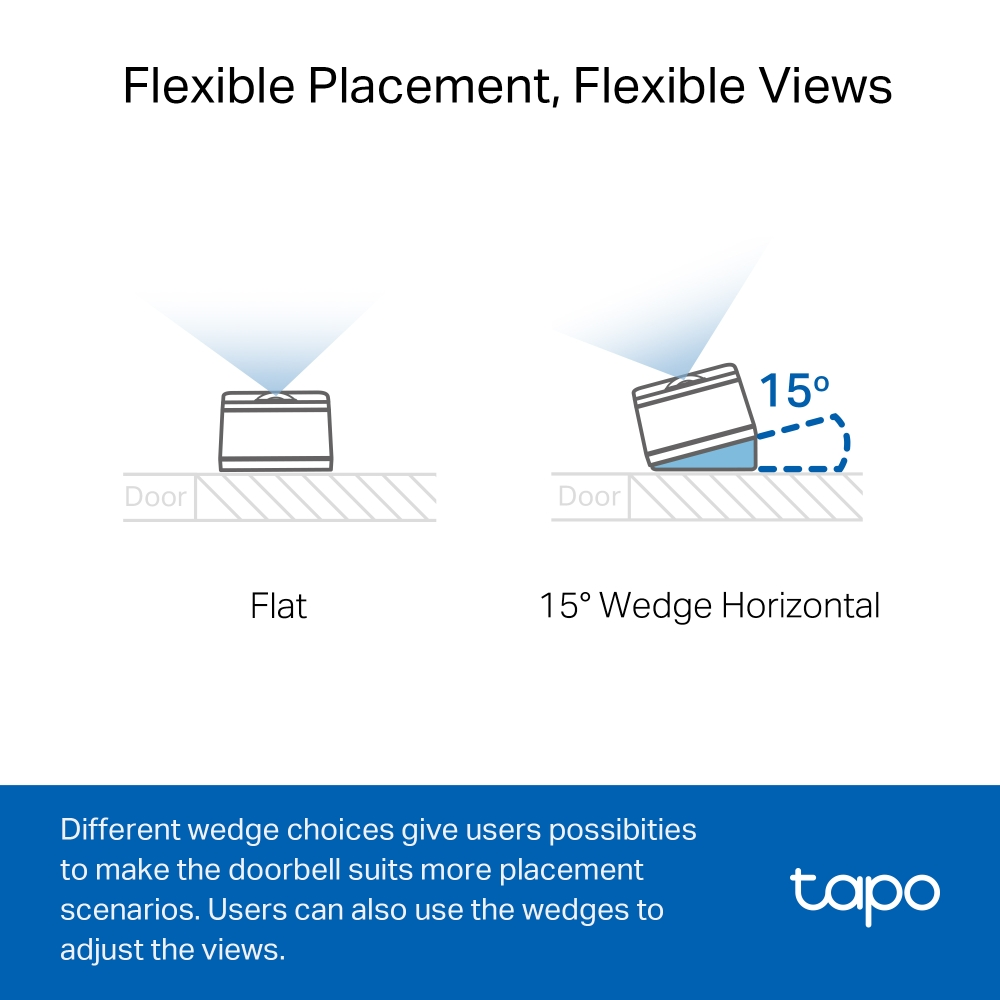

Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.

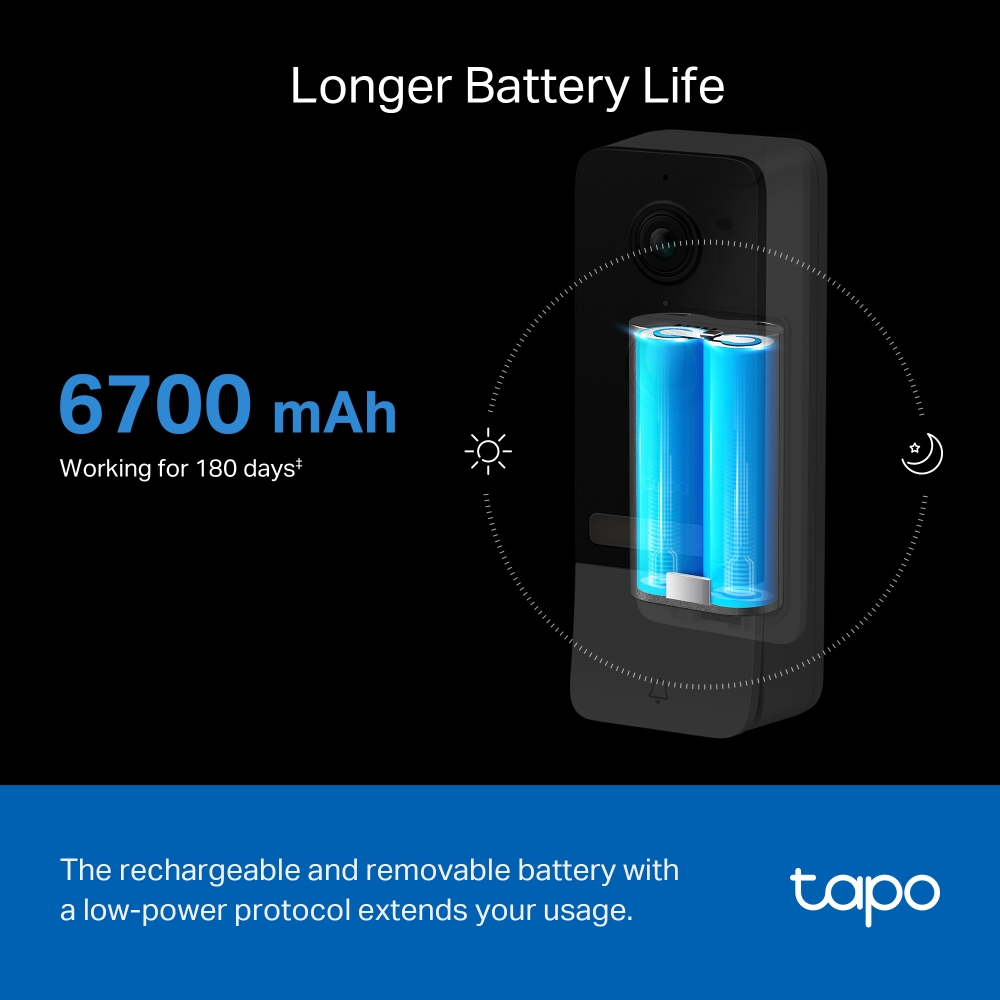

Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
Smart AI Detection and Notification: Smart AI algorithms identify people, pets, packages, and cars, and notify users as needed.
Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.

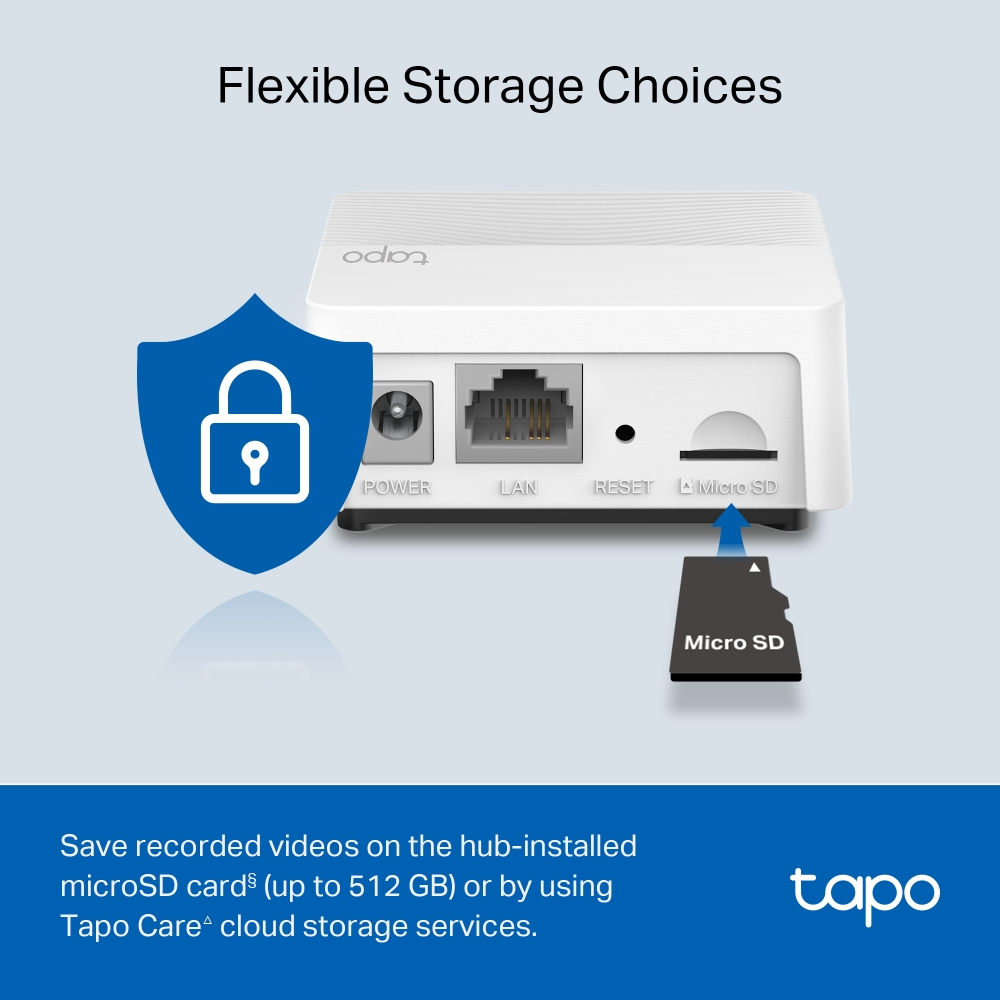

Flexible Storage Choice: Save recorded videos on the hub-installed microSD card§ (up to 512 GB) or by using Tapo Care△ cloud storage services.

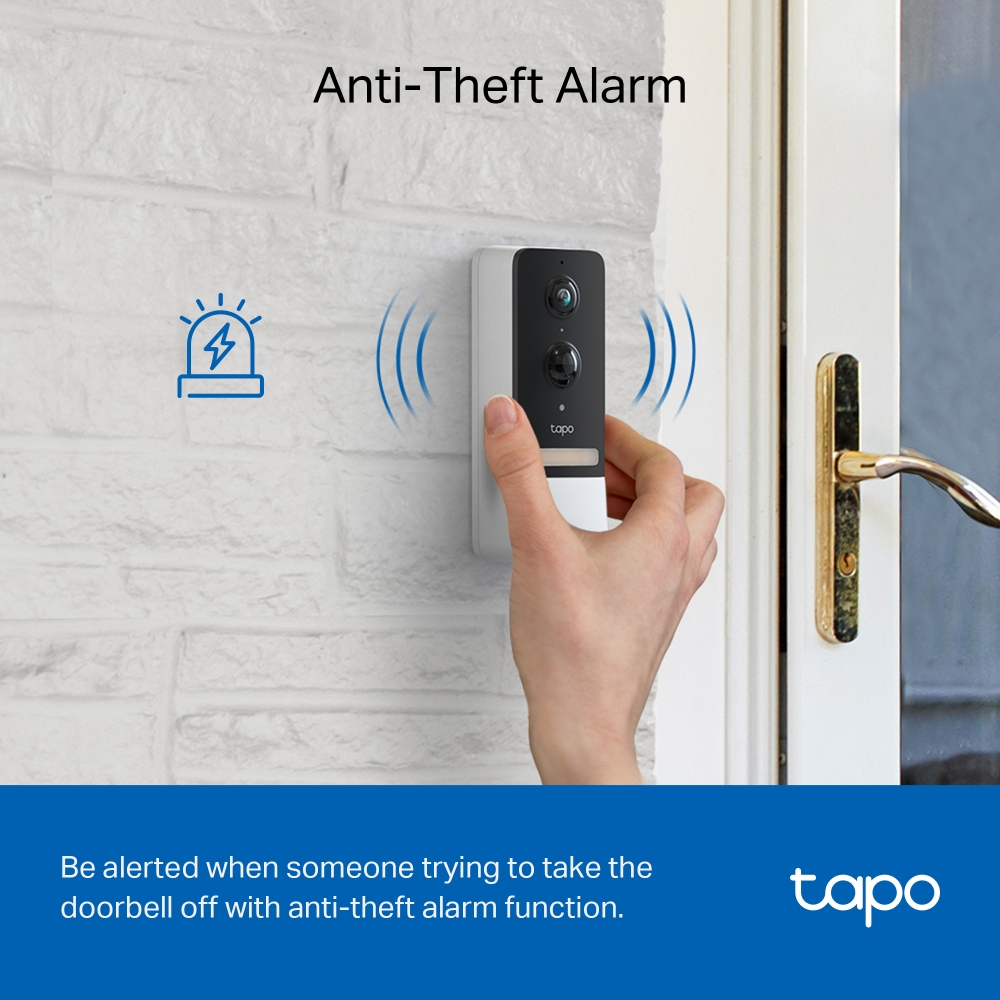

Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
Water & Dust Resistant IP64： Operates well on rainy days and in damp environments.
Specifications
- CAMERA
- Image Sensor: 1/2.7“ Progressive Scan CMOS Sensor
-
Lens: Focal Length: 2.1 mm
Aperture: F2.1
Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical) -
Night Vision: 850 nm IR LED (25 ft / 7.6 m)
Full-Color Night Vision - Lighting: Built-in Spotlights
-
interface & Button: 1× RESET Button
1× Doorbell Button
1× Anti-Theft Button -
Hub Compatibility : Compatible with H200 (Included)
HUB - Device Compatibility : Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
- Connection Capacity : Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
-
Interface & Button : 1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)
1x SYNC Button - VIDEO & AUDIO
- Maximum Resolution :2K 5MP (2560 × 1920px)
- Frame Rate :15 fps
- Digital Zoom: 16x
- Video Compression :H.264
- Live View: Yes
-
Image Enhancement :3DNR
WDR - Audio Input & Output : Built-in Microphone and Speaker
- Audio Communication: Two-Way Audio with Noise Cancellation
-
Siren Volume: Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
Hub: 100 dB (Level measured at 4-inch/10-cm distance) - STORAGE
- Local Storage :MicroSD Card Slot on Hub (Up to 512 GB)
- General Information about using MicroSD Cards >
- Cloud Storage : Tapo Care Cloud Storage Services (Subscription required)
- DETECTION and NOTIFICATIONS
-
Sensor:Single PIR Motion Sensor (FOV: 130° horizontal)
One Ambient Light Sensor -
AI Detection : Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Package Detection - Activity Zones : Yes
-
Output Notification: System Notification
System Notification with Snapshot (Tapo Care Services) - NETWORK
- Network Connectivity : Connect via Wi-Fi
-
Wireless Connectivity : IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz (Used for local connection between doorbell and hub) - Ethernet Port : 1× 10/100 Mbps RJ45 Port on Hub
- SECURITY
-
Security : On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK -
POWER
Power Source: Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
Hub: 9V DC Power Adapter
Input Voltage: Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
Output Voltage : Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A
DC Power Connector Size -
GENERAL
Smart Integration : Google Assistant, Amazon Alexa
Weather Resistance :IP64
System Requirements: Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher
Mounting Options :Stick to a Wall
Mount to a Wall
Operating Temperature :-20℃~45℃
Storage Temperature: -20℃~45℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity : 5%~90% RH, Non-condensing
Dimensions: Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)
- warranty : 1 year
