Description

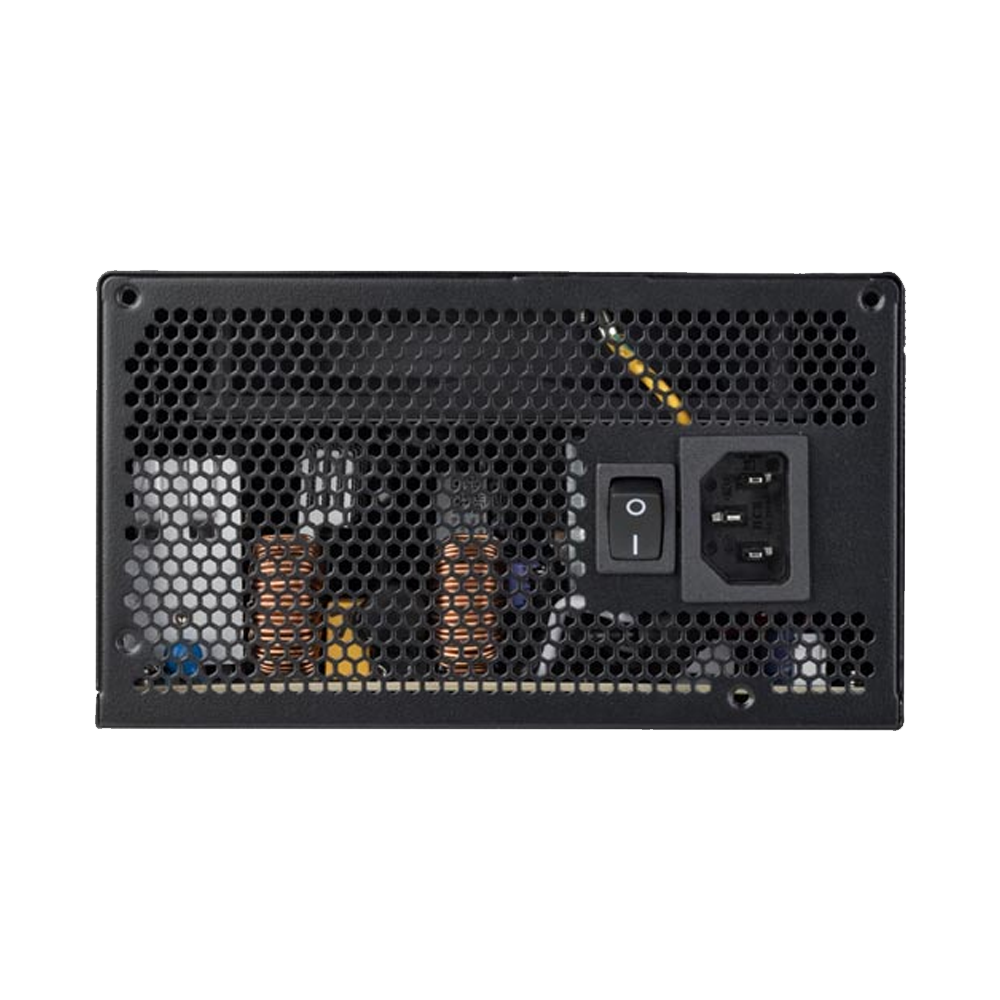

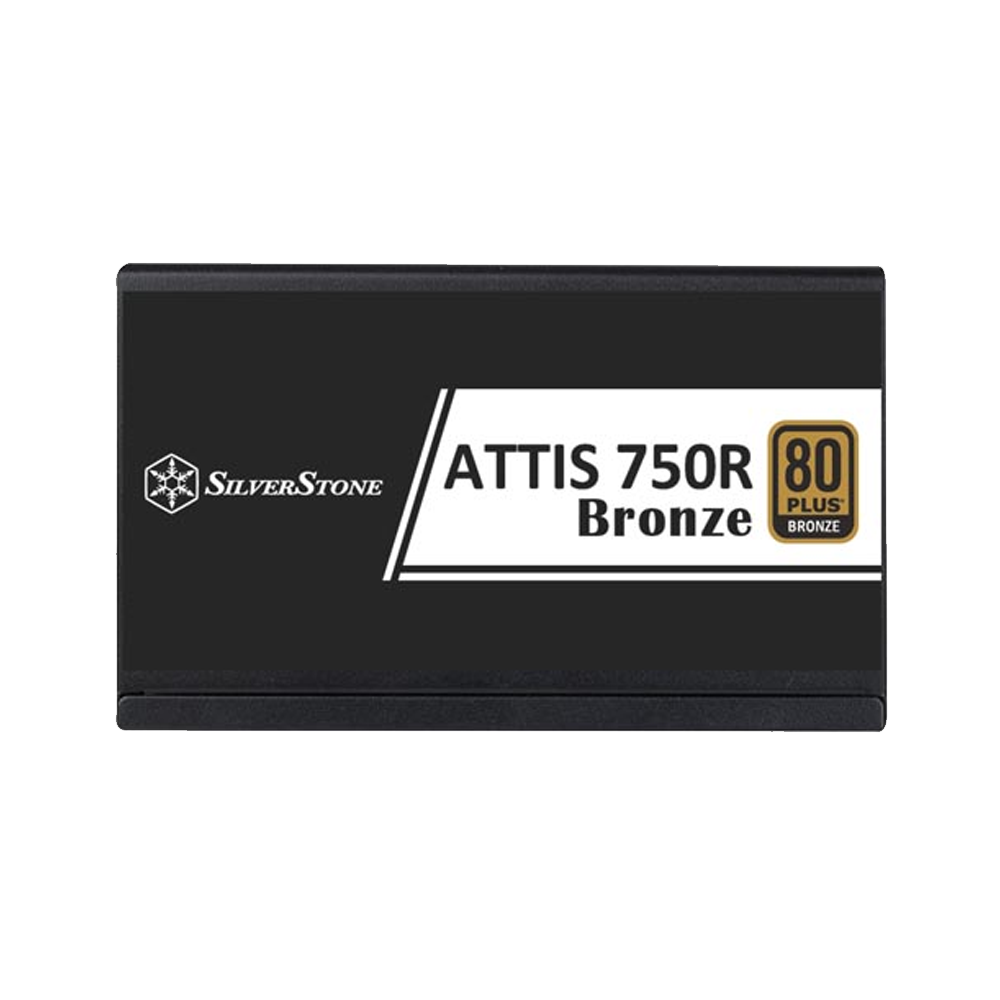

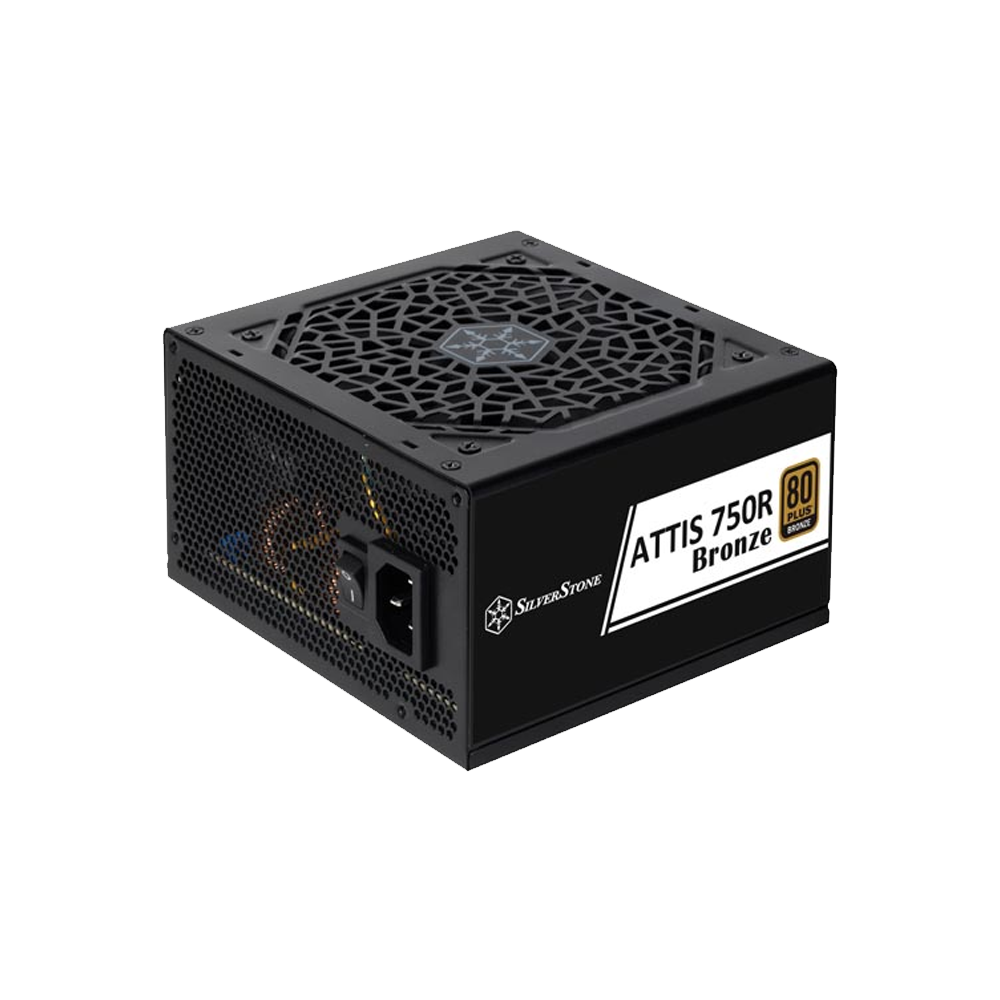

ATTIS 750R Bronze
80 PLUS Bronze 750W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50℃ operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- All black flat cables
- Active PFC+Double forward+DC to DC Design
specifications

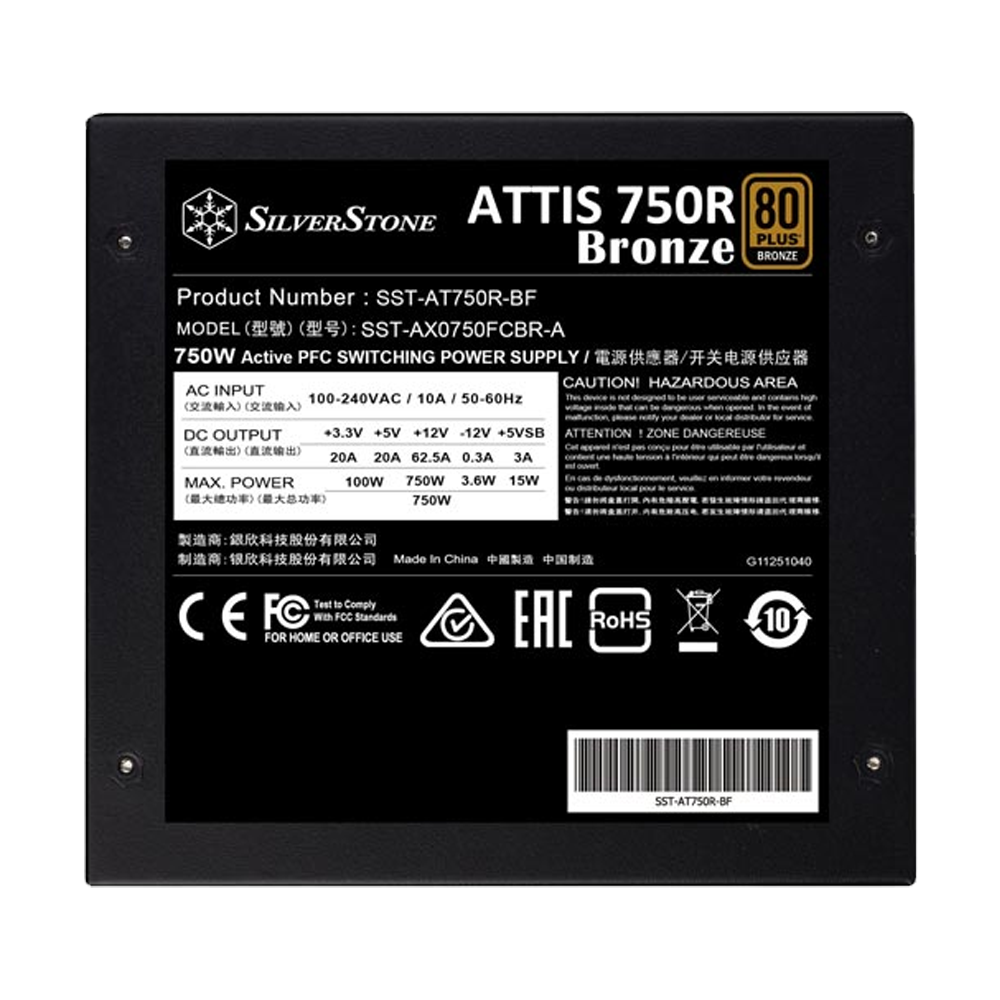

- Product No : SST-AT750R-BF
- Model (safety certification) : SST-AX0750FCBR-A
- Max. DC Output :750W
-
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62.5A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5~-7% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 50mV - Combined +3.3V & +5V 100W
- Combined +12V 750W
- Input Voltage 90 ~ 264 Vrms
- Input Frequency Range 47Hz ~ 63Hz
- PFC :Active PFC (PF>0.9 at full load)
- Efficiency :82% ~ 85% (at 20% ~ 100% loading)
- MTBF :100,000 hours
- Operating temperature :0°C ~ 50°C
-
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection -
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
4 x 8 / 6-Pin PCIe connector
6 x SATA connectors

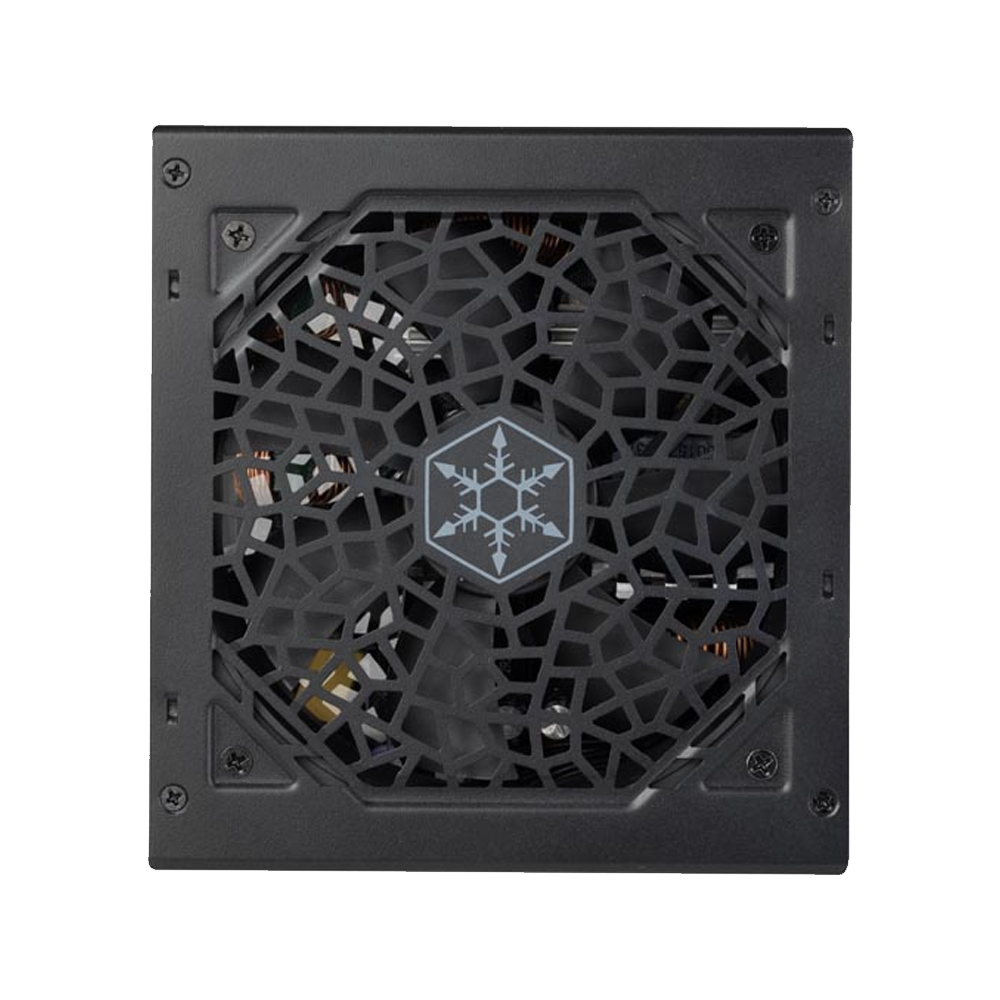

3 x 4-Pin Peripheral connector - Cooling System :Silent 120mm fan
- Noise Level :18 dBA minimum
- Certification :80 PLUS Bronze
- Form factor :ATX (PS2)
- Dimension :150mm (W) × 86mm (H) × 140mm (D)
- Weight :1.54 kg
- Other :GPU Support list
- warranty : 1 year
