Description

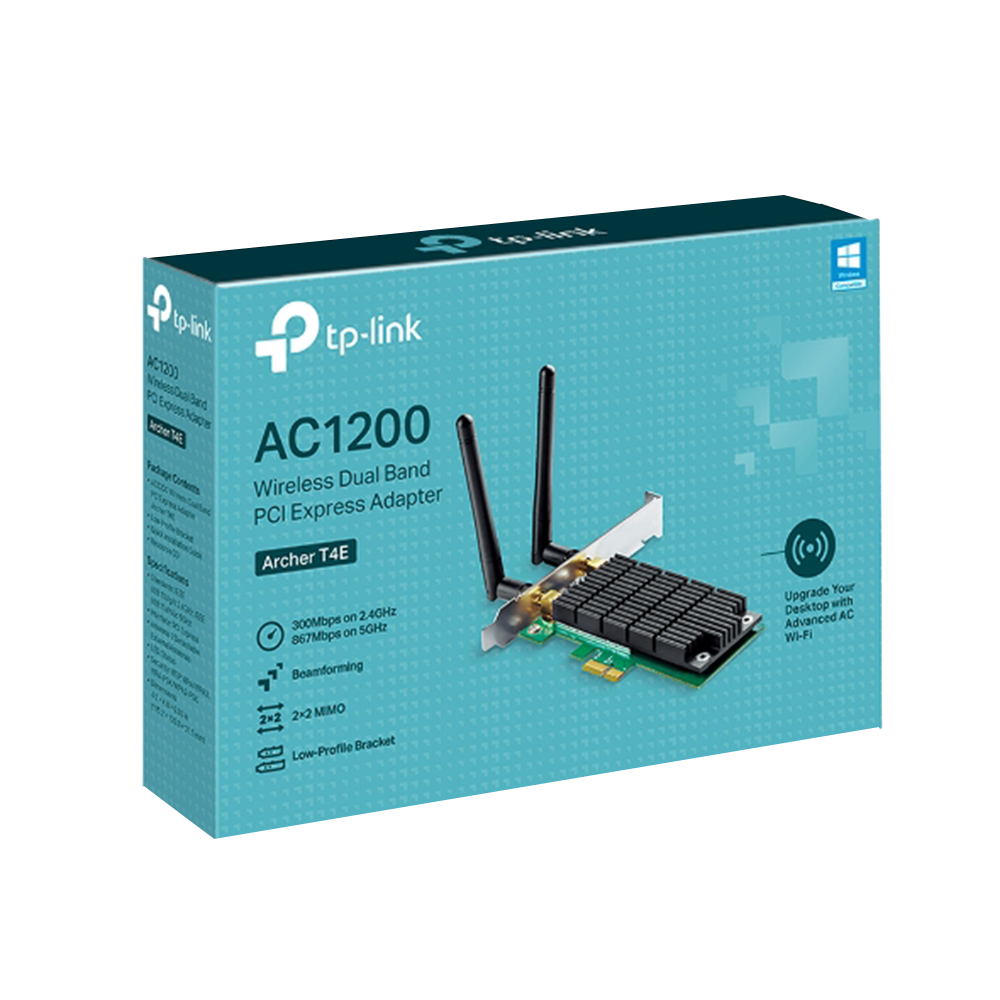

AC1200 Wireless Dual Band PCI Express Adapter
Archer T4E
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
-
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
-
Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
-
Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
-
2×2 MIMO – Users can easily access to high-speed wireless connection
-
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
Specifications
- Interface: PCI Express
- Dimensions: 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
- Antenna: 2 Dual Band Detachable Antennas
-
Wireless Standards: IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz - Signal Rate:
- 5 GHz
- 11ac: Up to 867 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
- 2.4 GHz
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
- Reception Sensitivity:
- 5 GHz :
- 11ac HT80: -59.5 dBm
- 11ac HT40: -63 dBm
- 11ac HT20: -68 dBm
- 11n HT40: -70 dBm
- 11n HT20: -73 dBm
- 11a 54Mbps: -76 dBm
- 11a 6Mbps: -92 dBm
- 2.4GHz :
- 11n HT40: -67.5 dBm
- 11n HT20: -70 dBm
- 11g 54Mbps: -72 dBm
- 11b 11Mbps: -86.5 dBm
- Transmit Power: 5 GHz :
- 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
- 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
- WARRANTY: 1YEAR
