Description

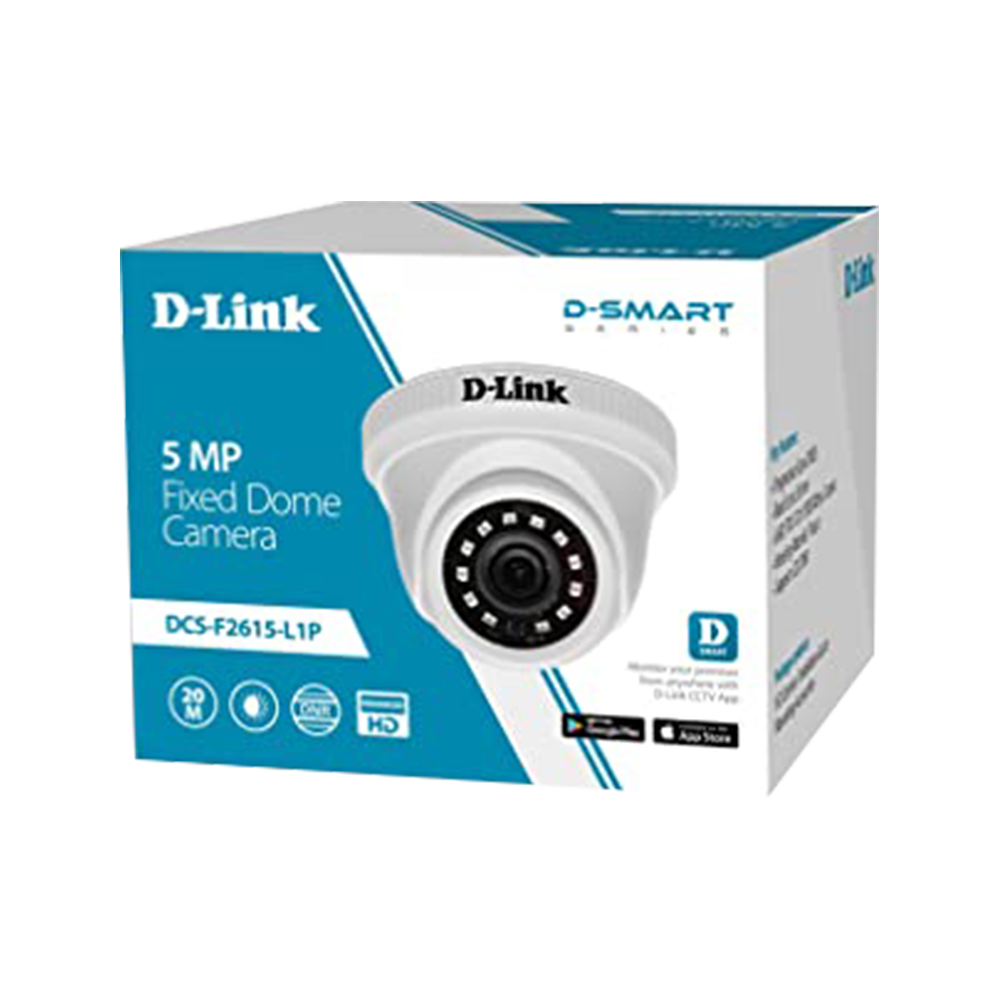

DCS-F2615-L1P-E
5MP Fixed Dome Day & Night AHD Camera
Specifications:
Camera
- Image Sensor:1/2.5" CMOS Sensor
- Signal System: PAL/NTSC
- Effective Pixels 2608 (H) × 1952(V)
- Electronic Shutter AUTO/ 1/50(1/60)-1/50,000sec
- Min. IIIumination 0.1Lux@(F1.2,AGC ON), 0LUX with IR
- Video Frame Rate PAL/NTSC: 20fps
- Video Output AHD / TVI / CVI / CVBS
Camera Features
- S/N Ratio >37dB
- Noise Reduction 2D DNR
- Day&Night EXT/Auto/Color/B&W
- White Balance ATW/MWB
- Spotlight 18pcs SMD LED
- Spotlight Range 25M
- Focal Length 2.8mm fixed lens
- Angle of View H:105° V:78°
- Lens Type Fixed Iris
- Mount Type M12
- IP Rating IP66
-
Power Supply DC12V(±10%)
- Power Consumption <5W
- Working Temperature/ Humidity ﹣20~+60℃ RH95% MAX
- Dimensions(W×D×H) ¢92×88mm
- Weight 215g
- Warranty: 1 Year
