Description

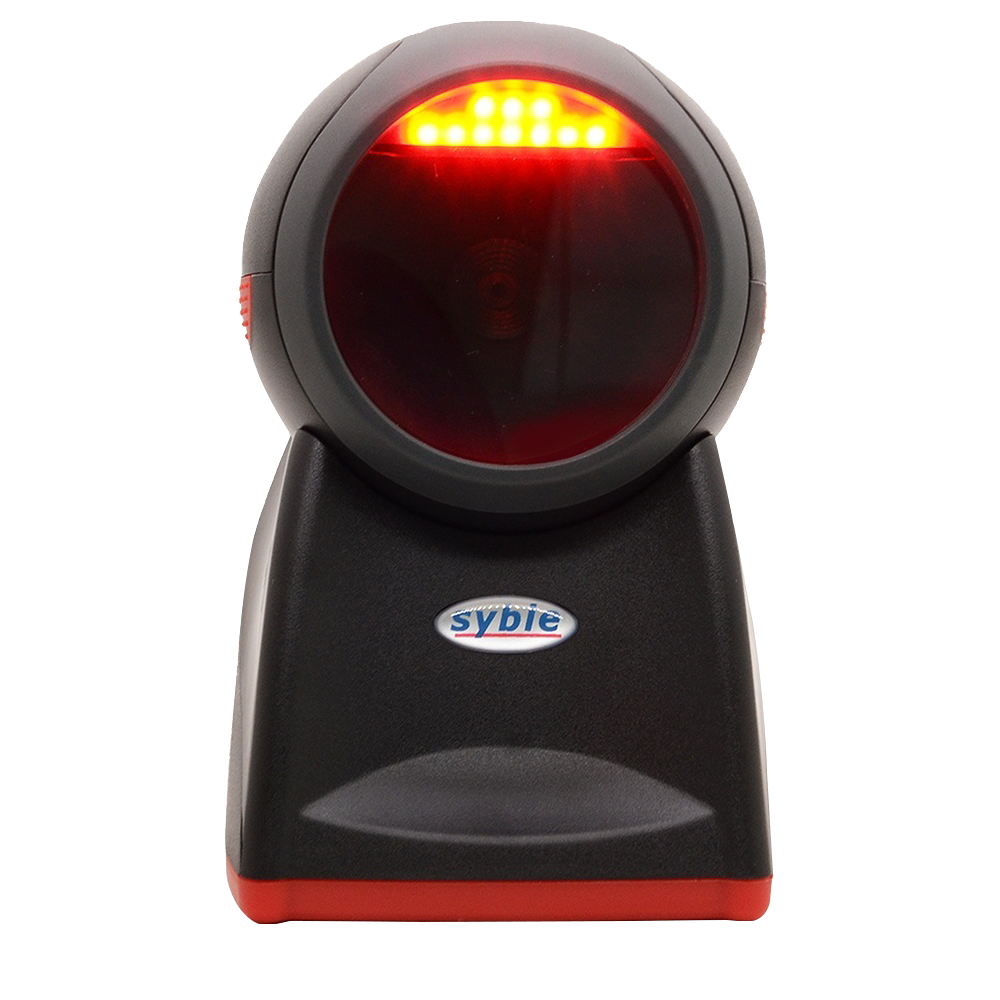

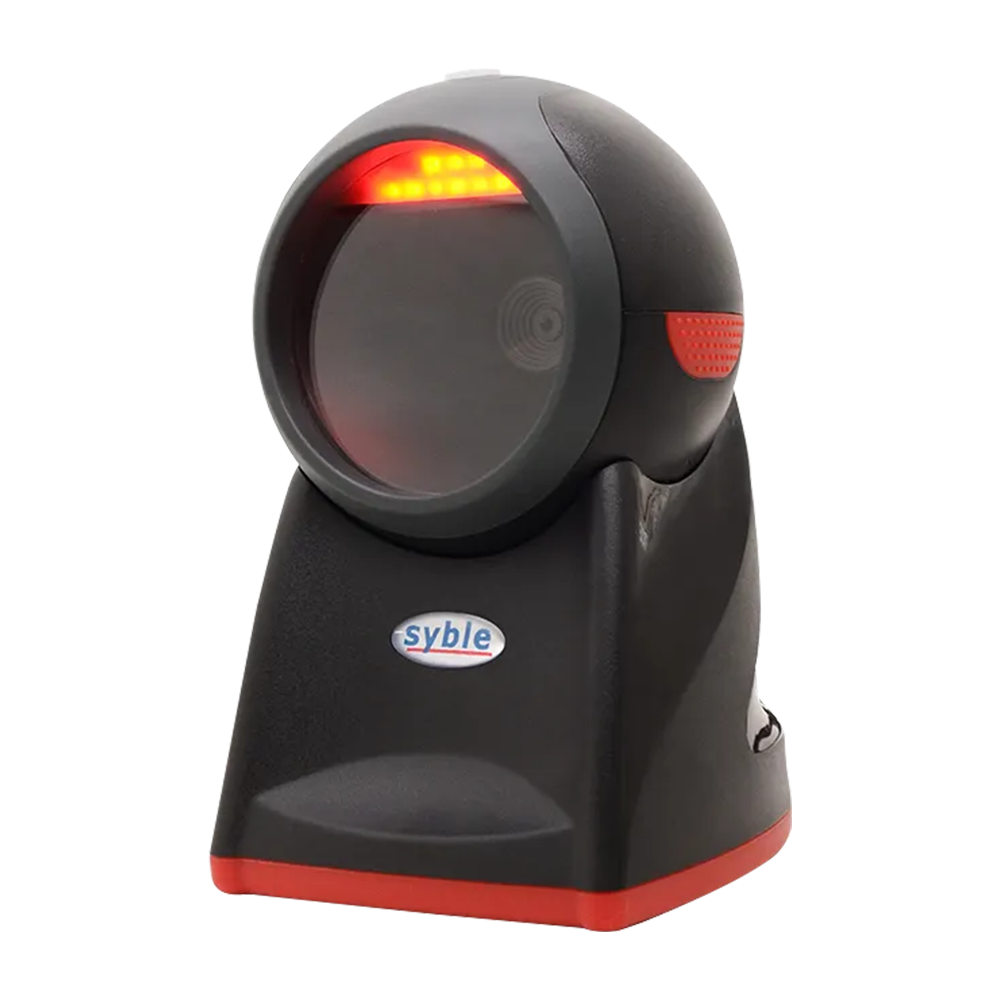

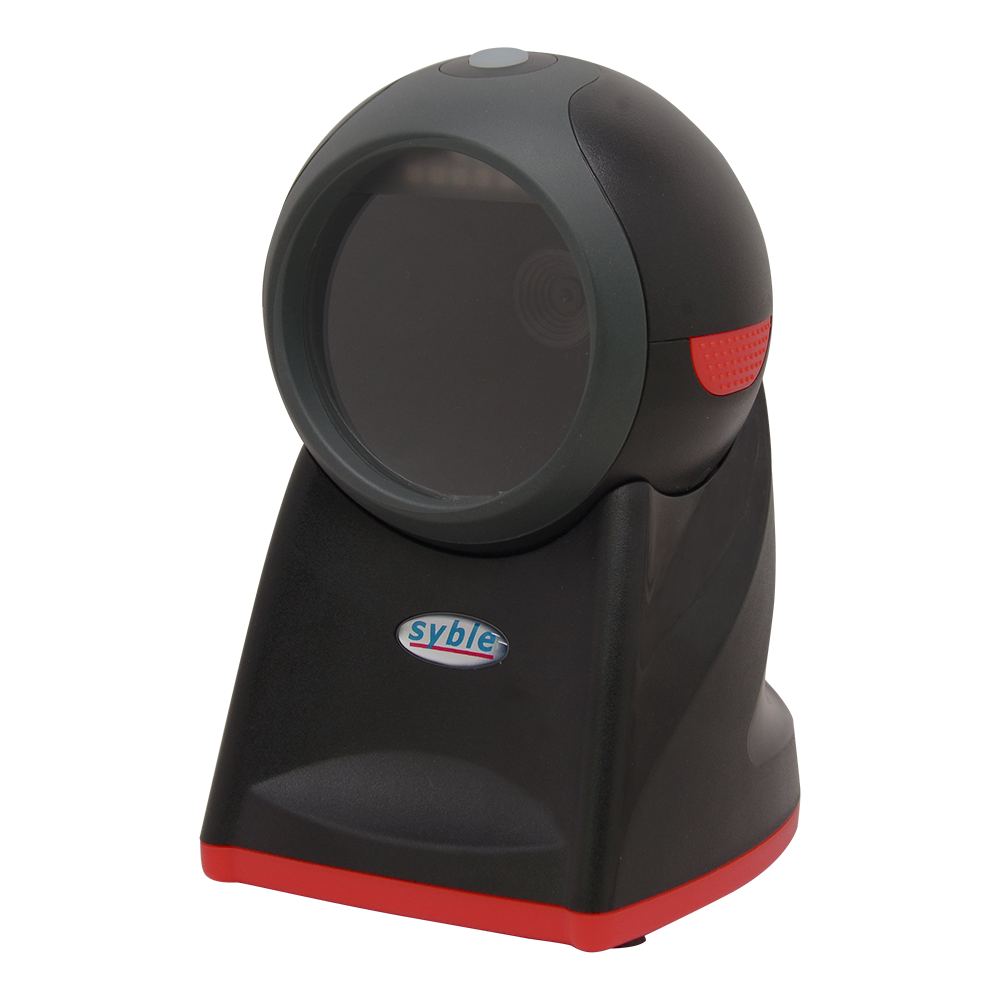

XB-8602 Syble 1D & 2D Desktop Bar-code Scanner
- 2d barcode scanner has strong decoding ability. This single device can easily and accurately capture all common bar codes (1D, 2D and PDF417)electronic or printed on paper labels or plastic cards.
- It seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smart-phones by customers.
Specifications:
- Light Source: Red LED (lighting) color temperature 650nm LED
- Supported symbologies: 1D: UPC, EAN, Code 39(with full ASCII), Codabar, Code 128, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI-Plessey, GS1 DataBar
- 2D: PDF417, Data Matrix, QR Code
- Scan Mode: Continuous/Automatic Induction Scanning
- Scan Speed: 60 fps
- Mobile tolerance: 1 meters/second
- CPU: 32bit MIPS@1G Hz
- Precision: ≥4mil
- Bit Depth of field: 0-150mm@(13mil UPC/EAN 100%, PCS=90%)
- Field of View: Yaw 360°, Rotation ±60°, Pitch ±65°
- Press the key: Can switch to read only 1D bar code by pressing the key
- Indicator: LED, Speaking
- Interface: USB-HID, USB-COM, RS232
- Dimensions :150mm*108mm*96mm
- Weight: 278g
- Material: ABS+PC
- Cable Length: 2m
- Warranty: 1 year
